Paramount Fitness CLEAR 03 Instructions

External Safety Air Bleed Kit
2
1
Filter Heater
From
Pump

Installation of External Safety Air Bleed Kit

For more information, call Paramount Customer
Service at (800) 621-5886.
004-027-7882-00 REV051914

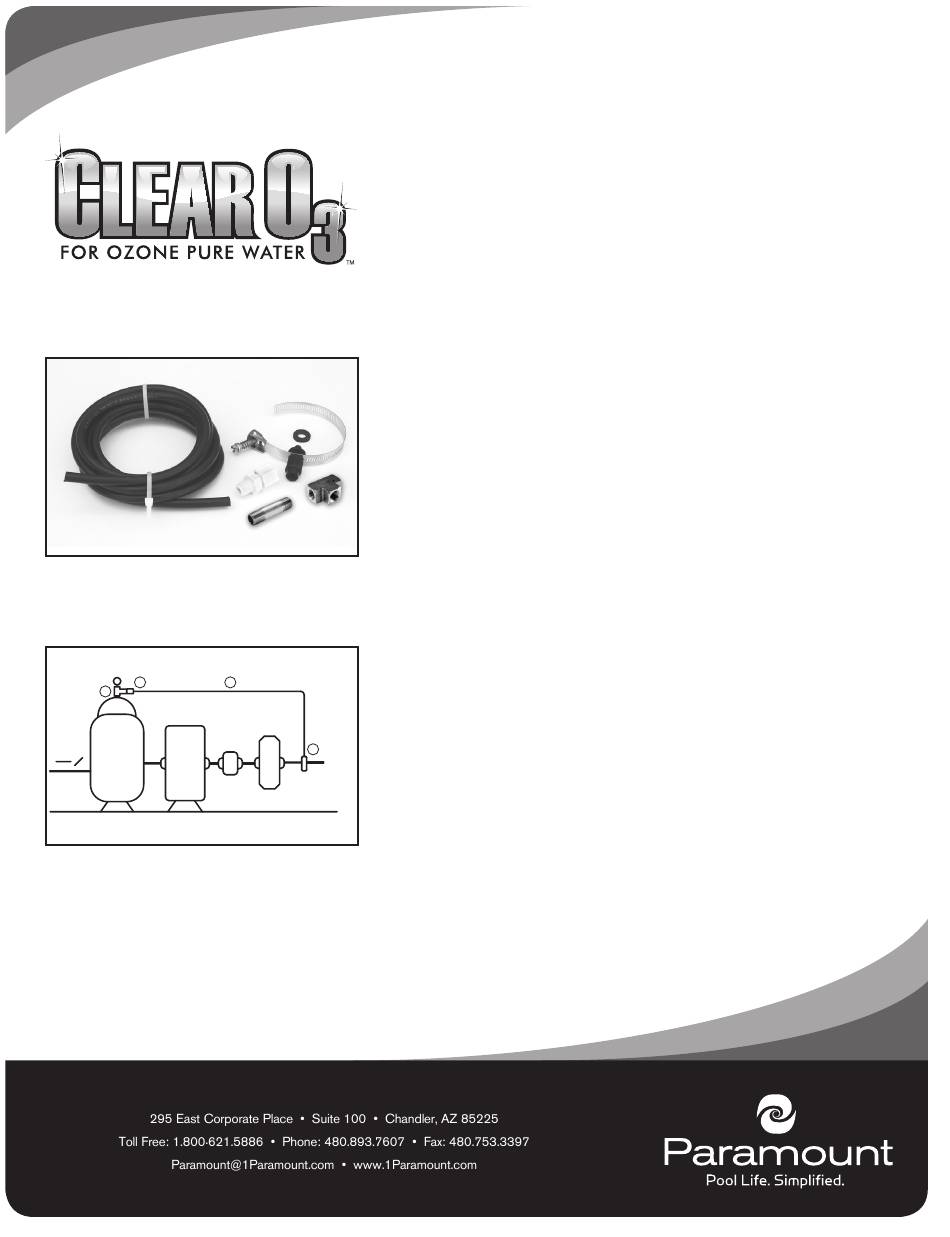

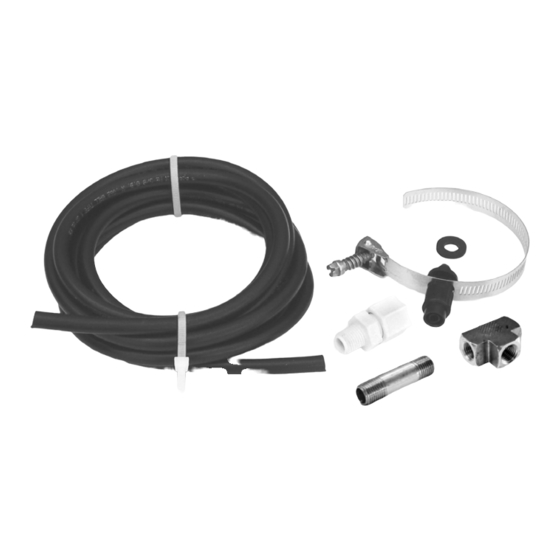

Sometimes the internal air bleed kit on the filter is not sufficient to handle
the extra air in the system with an ozonator installed. An External Safety Air
Bleed Kit (006-402-3872-00) for in-ground swimming pools is available to
remove excess air from the filter and send it downstream (up to 15') past
all equipment. After installing always test per instructions that air is vented
from the filter when the pump is running. Filters equipped with an internal air
bleed will have a backup to the external kit. You must install an external air
bleed if the filter is old or does not have an internal air bleed, there is a solar
system on the pool, there is a pressure side cleaner or with a booster pump.

Mounting Instructions

3
Chlorinator
4
Return Line
Biostat/
Biocide
CLEAR 03 WATER PURIFYING SYSTEM

EXTERNAL SAFETY AIR BLEED KIT INSTRUCTIONS

1. Turn off power to the pump.
2. Remove the pressure gauge from the filter.
3. Install the nipple into one end of the brass tee.
4. Install the pressure gauge by threading into the other end of the brass tee supplied.
5. Install the tubing compression fitting by threading into the side of the brass
tee.
6. Install the tee assembly by threading into the hole you removed the pressure
gauge (#1).
7. Insert one end of the tubing into the compression fitting (#2).
8. Turn on power to the pump and check that air is coming from the other end
of the tubing. If air is coming out skip step 9 and proceed to step 10.
9. If no air is coming from the end of the tubing, turn off the power to the pump
and return the pressure gauge from where it was removed.
10. Install the brass tee by threading into to the manual bleed port and open the
valve.
11. Turn on power to the pump and check that air is coming from the other end
of the tubing. If no air is coming from the tubing you do not need an external
bleed kit.
12. Turn off power to the pump.
13. Pick a spot on the return pipe downstream of all other devices (heater,
chlorinator, pressure cleaner, etc.)
14. Drill a 7/16" hole through the return pipe at the location selected.
15. Install the saddle clamp with the fitting over the hole. Make sure the gasket
is in place between the fitting and the pipe. (#4)
16. Lay the tubing along the return pipe to the saddle clamp fitting and cut off
excess length.
17. Connect the end of the tubing to the compression fitting on the saddle
clamp (#3). The tubing can be secured to the pipe using cable ties
(not included).
