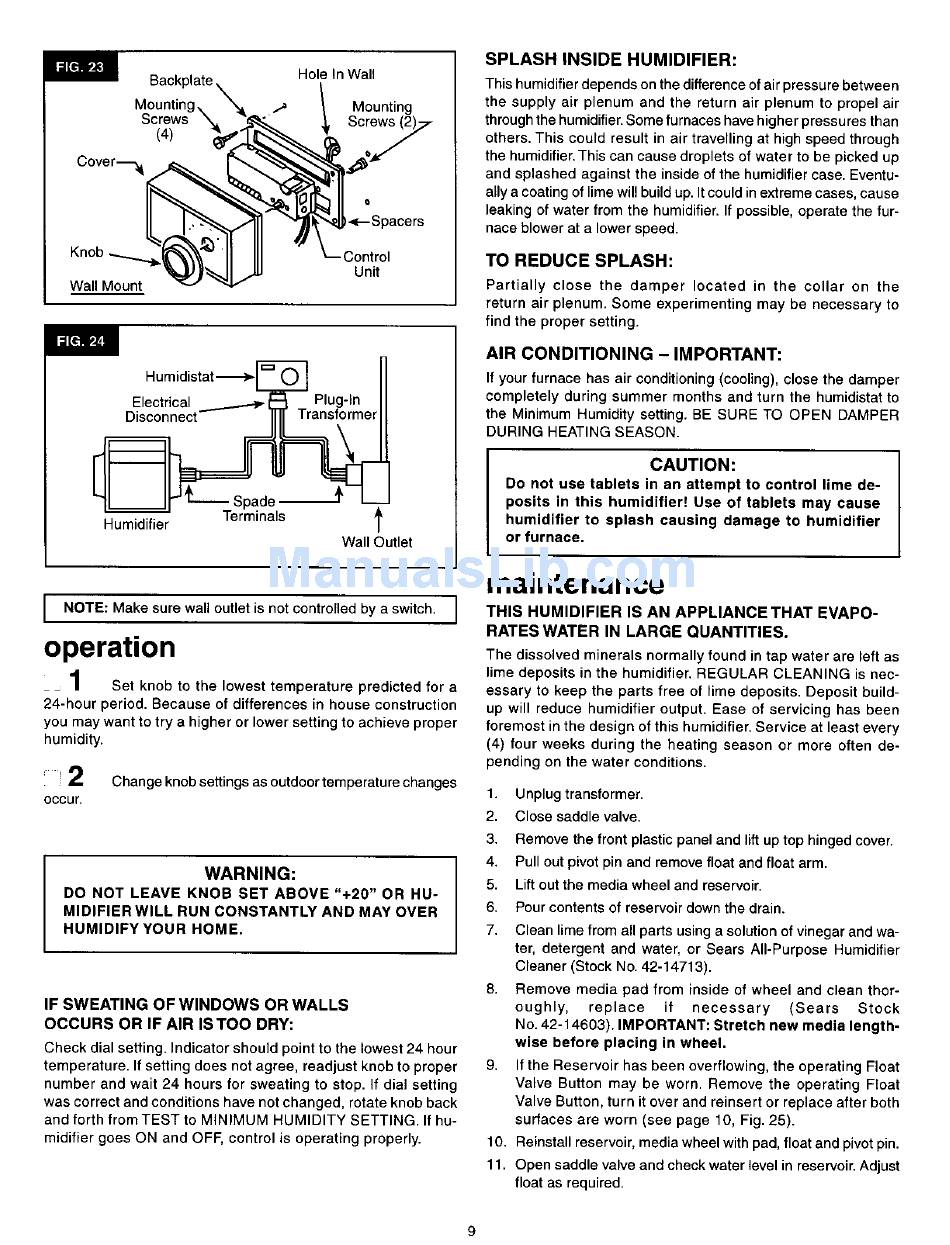

Kenmore 1700 Owner's Manual page 9

11 gallon central humidifier
Hide thumbs

Advertisement

Mountin(
Screws
(4)
Cover-_
Hole In Wall
Mounting
Screws
Wall Mount
)_--Spacers
Control
Unit
Humidifier
Spade _
Terminals
f
Wall Outlet
I
NOTE: Make sure wall outlet is not controlled by a switch.
I
operation
1
Set knob to the lowest temperature
predicted for a
24-hour
period. Because of differences
in house construction
you may want to try a higher or lower setting to achieve proper
humidity.
' 2
Change
knob settings
as outdoor
temperature
changes
Occur.
WARNING:
DO NOT LEAVE KNOB SET ABOVE
"+20"
OR HU-
MIDIFIER
WILL RUN CONSTANTLY
AND MAY OVER
HUMIDIFY
YOUR HOME.
IF SWEATING OF WINDOWS OR WALLS
OCCURS OR IF AIR ISTOO DRY:
Check dial setting. Indicator should point to the lowest 24 hour
temperature.
If setting does not agree, readjust knob to proper
number and wait 24 hours for sweating
to stop. If dial setting
was correct and conditions have not changed, rotate knob back
and forth from TEST to MINIMUM HUMIDITY SETTING. If hu-
midifier goes ON and OFF, control is operating
properly.
SPLASH
INSIDE
HUMIDIFIER:
This humidifier depends on the difference of air pressure between
the supply air plenum
and the return air plenum to propel air
through the humidifier. Some furnaces have higher pressures than
others. This could result in air travelling at high speed through
the humidifier. This can cause droplets of water to be picked up
and splashed
against the inside of the humidifier case. Eventu-
ally a coating of lime will build up. It could in extreme cases, cause
leaking of water from the humidifier. If possible, operate the fur-
nace blower at a lower speed.
TO REDUCE
SPLASH:
Partially
close
the damper
located
in the collar
on the
return air plenum. Some experimenting
may be necessary
to
find the proper setting.
AIR CONDITIONING
- IMPORTANT:
If your furnace has air conditioning (cooling), close the damper
completely
during summer months and turn the humidistat to
the Minimum
Humidity setting. BE SURE TO OPEN DAMPER
DURING HEATING SEASON.
CAUTION:
Do not use tablets in an attempt to control lime de-
posits in this humidifieH
Use of tablets may cause
humidifier
to splash causing
damage
to humidifier
or furnace.
maintenance
THIS HUMIDIFIER IS AN APPLIANCE THAT EVAPO-
RATES WATER IN LARGE QUANTITIES.
The dissolved minerals normally found in tap water are left as
lime deposits in the humidifier.
REGULAR CLEANING
is nec-
essary to keep the parts free of lime deposits. Deposit build-
up will reduce humidifier
output.
Ease of servicing
has been
foremost in the design of this humidifier, Service at least every
(4) four weeks during the heating season or more often de-
pending on the water conditions.
1.
2.
3.
4.
5.
6.
7.
Unplug transformer.
Close saddle valve.
Remove the front plastic panel and lift up top hinged cover.
Pull out pivot pin and remove float and float arm.
Lift out the media wheel and reservoir.
Pour contents of reservoir down the drain.
Clean lime from all parts using a solution of vinegar and wa-
ter, detergent and water, or Sears All-Purpose
Humidifier
Cleaner (Stock No. 42-14713).
8.
Remove media pad from inside of wheel and clean thor-
oughly,
replace
if
necessary
(Sears
Stock
No. 42-14603). IMPORTANT:
Stretch new media length-
wise before
placing in wheel.
9.
If the Reservoir
has been overflowing,
the operating Float
Valve Button may be worn. Remove the operating
Float
Valve Button, turn it over and reinsert or replace after both
surfaces are worn (see page 10, Fig. 25).
10. Reinstall reservoir, media wheel with pad, float and pivot pin.
11. Open saddle valve and check water level in reservoir. Adjust
float as required.
9
