Kenmore 1700 Owner's Manual page 11

11 gallon central humidifier
Hide thumbs

Advertisement

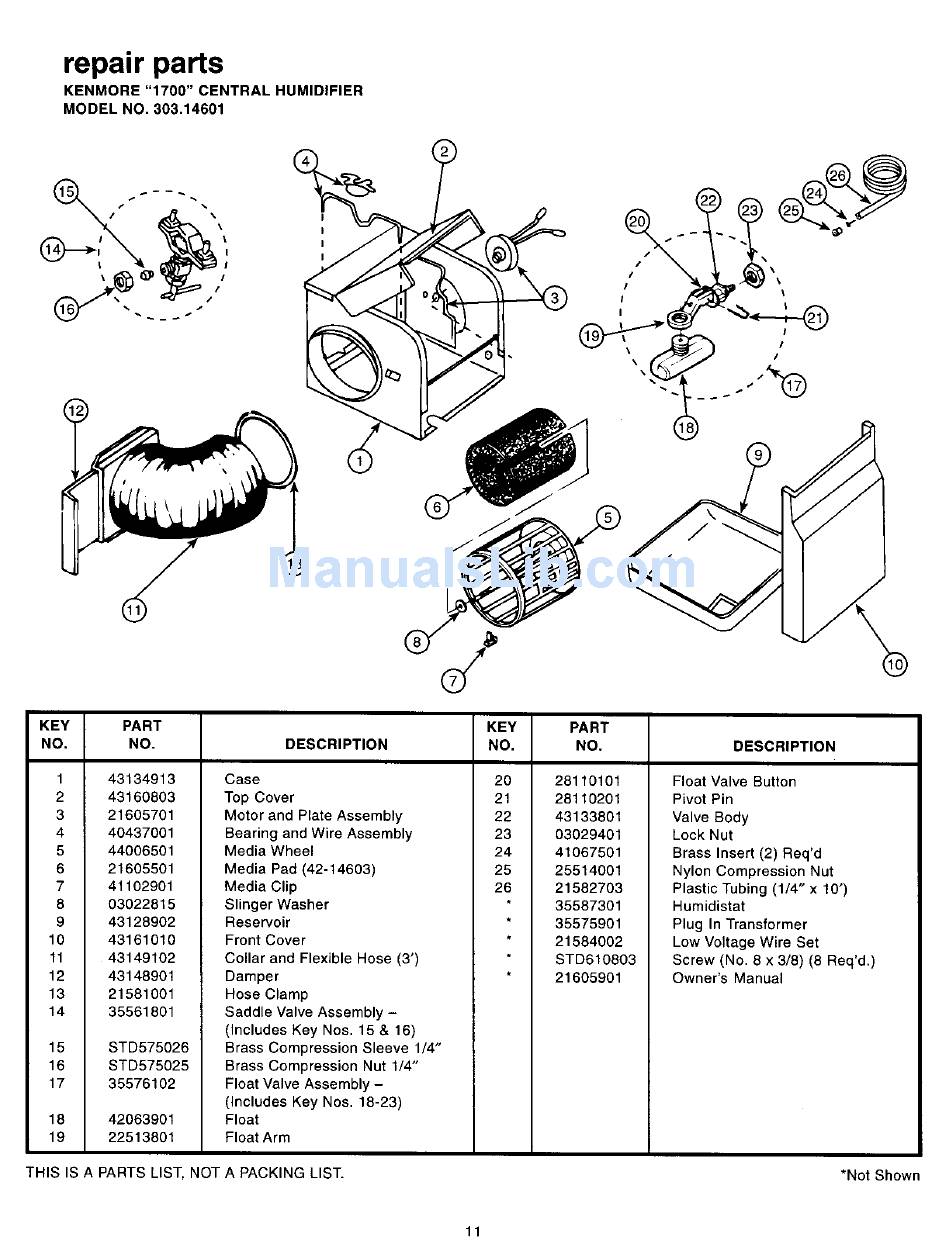

repair parts
KENMORE
"1700"
CENTRAL
HUMIDIFIER
MODEL NO. 303.14601
I
I
I
I
I
/
KEY
PART
KEY
PART
NO.
NO.
DESCRIPTION
NO.
NO.
DESCRIPTION
1
43134913
2
43160803
3
21605701
4
40437001
5
44006501
6
21605501
7
41102901
8
03022815
9
43128902
10
43161010
11
431491O2
12
43148901
13
21581001
14
35561801
15
STD575026
16
STD575025
17
35576102
18
42063901
19
22513801
Case
Top Cover
Motor and Plate Assembly
Bearing and Wire Assembly
Media Wheel
Media Pad (42-14603)
Media Clip
Slinger Washer
Reservoir
Front Cover
Collar and Flexible Hose (3')
Damper
Hose Clamp
Saddle Valve Assembly -
(Includes
Key Nos. 15 & 16)
Brass Compression
Sleeve 1/4"
Brass Compression
Nut 1/4"
Float Valve Assembly -
(Includes
Key Nos. 18-23)
Float
Float Arm
THIS IS A PARTS LIST, NOT A PACKING LIST.
2O
21
22
23
24
25
26
28110101
28110201
43133801
03029401
41067501
25514001
21582703
35587301
35575901
21584002
STD610803
21605901
Float Valve Button
Pivot Pin
Valve Body
Lock Nut
Brass Insert (2) Req'd
Nylon Compression
Nut
Plastic Tubing (1/4" x 10')
Humidistat
Plug In Transformer
Low Voltage Wire Set
Screw (No. 8 x 3/8) (8 Req'd.)
Owner's
Manual
*Not Shown
