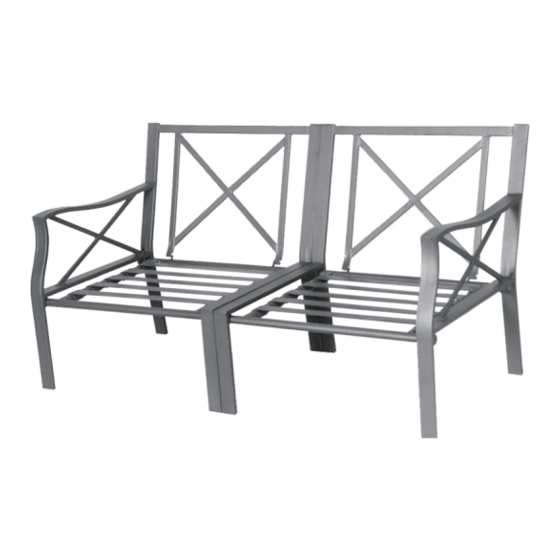

Courtyard Creations KFS562F-WM Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

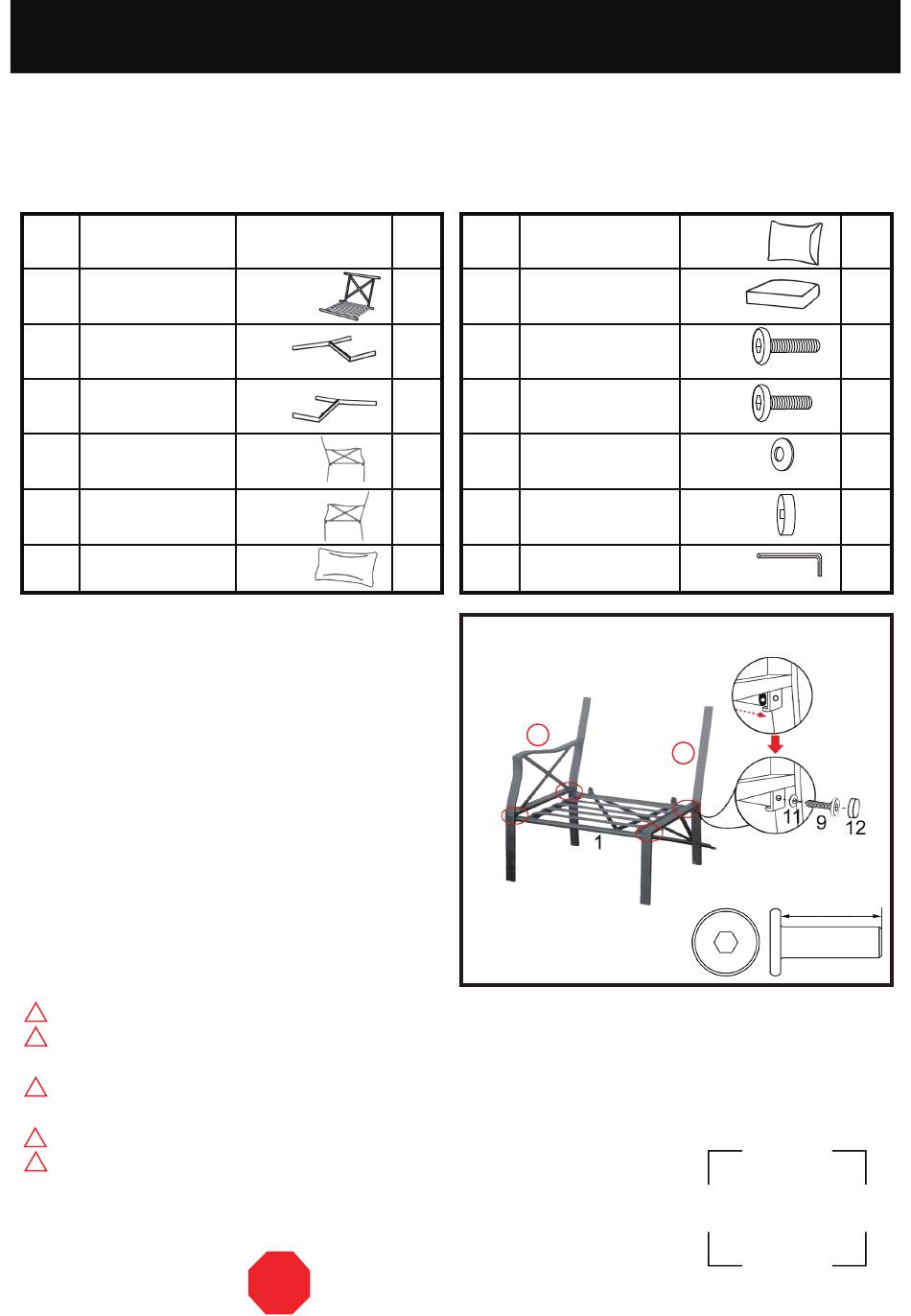

PARTS LIST
PART
MATERIAL CODE
NO.
1
KFS562F-CS01
2
KFS562F-CS02
3
KFS562F-CS03
4
KFS562F-CS04
5
KFS562F-CS05
6
61K562FJ00001BA
Attention:
Make sure that each bolt needed for all steps
matches the corresponding figure to ensure
proper assembly.
Step 1:
Insert one seat assembly (#1) into the right leg
(#4) and the leg A (#2). Fasten them together by
using bolts (#9) and washers (#11). Keep the bolts
loose. See Figure 1.
Note:
The number labels "2, 3, 4, 5" attached on the
legs should coincide with Figure 1, 2, 3 & 4 to
ensure proper assembly.
Use the correct bolts as indicated. Do not tighten any of the bolts until is completely assembled.
!
Do not discard of any of the packaging until you have checked that you have all of the parts and
!
fittings required.
Keep children away during assembly. This item contains small parts that can be swallowed by
!
children. Children should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
!
Quote the following FQC NO. when contacting the service center.
!
INTENDED FOR RESIDENTIAL USE ONLY.
KFS562F-
PART Q'TY
SEAT ASSEMBLY
LEG A
LEG B
RIGHT LEG
LEFT LEG
PILLOW
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
DON'T RETURN TO STORE!
STOP
PAGE 1 OF 3
WM
7
61K562FX00001BA
2 8
61K562FY00001BA
1 9
17C33A0708001Y4
1 10
17C33A0703001Y4
1 11
17FA05040301-Y4
1 12
18000337004
2 13
17KAA0101----Y4
FIGURE 1
4
#9 BOLT M6*20
BACK CUSHION
SEAT CUSHION
BOLT M6*20
BOLT M6*12
WASHER d6.5*D13*1.0
BOLT CAP
HEX.KEY WRENCH 4MM
2
COURTYARD CREATIONS INC.
2
2
8
4
12
12
1
20
