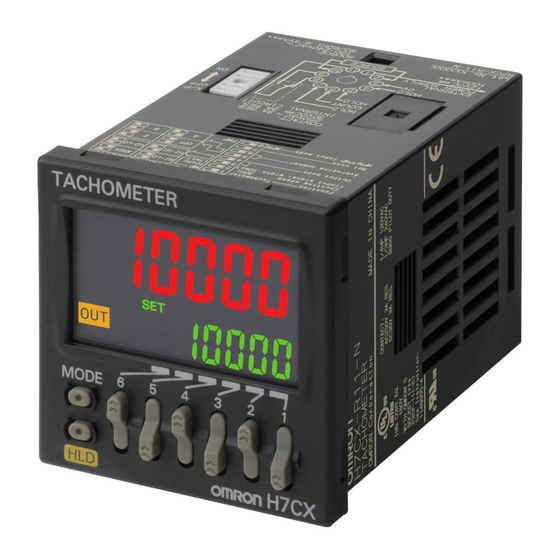

Omron H7CX-R-N Series Instruction Manual

H7CX-R -N
Digital Tachometer
INSTRUCTION MANUAL
EN
Thank you for purchasing the OMRON Product.
To ensure the safe application of the Product, read this
manual carefully before using the Product and always keep
it close at hand when the Product is in use.
OMRON Corporation
©All Rights Reserved
1148655-4C
For details, refer to the latest datasheet (Cat. No. M079).
Suitability for Use
OMRON shall not be responsible for conformity with any standards, codes, or regulations that
apply to the combination of the products in the customer's application or use of the product.
Take all necessary steps to determine the suitability of the product for the systems, machines,
and equipment with which it will be used. Know and observe all prohibitions of use applicable to
this product.
NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE
OR PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN
DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCT IS PROPERLY
RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT
OR SYSTEM.
See also Product catalog for Warranty and Limitation of Liability.
Mounting and Panel-cutout Dimensions Diagram
Mounting Dimensions (Unit: mm)
(The Adapter and Waterproof Packing are
sold separately.)
Flush Mounting Y92F-30 (order separately)
Flush Mounting Adapter
Y92S-29 (order separately)
Panel
Waterproof Packing P3GA-11 (order separately)
Back-connecting Socket
(51)
48
7.5 89.9
Surface Mounting
Panel-cutout Dimensions Diagram
(Unit: mm)
P2CF-11(-E) (order separately)
Back-connecting Socket
Panel cutouts are as shown below
(according to DIN43700).
H7CX-R -N
To allow easier operation, it is recommended
that Adapters be mounted so that the gap
between sides with hooks is at least 15 mm
(i.e., with the panel cutouts separated by at
least 60 mm).
100.9
103.2*
48
These dimensions vary with the
type of DIN track (reference
value).
Package Contents
Note 1: The mounting panel thickness should
• Digital Tachometer
be 1 to 5 mm.
• Instruction manual (this document)
Note 2: It is possible to mount counters side
by side, but only in the direction
without the hooks.
n Units mounted
side-by-side
A
1
A (48n 2.5)
0
Note 3: If the Tachometers are mounted side by
side, water resistance will be lost.
Parameters must be set using both the DIP switch and the operation keys
on the front panel. Refer to the following for the detailed procedure.
Step1
Set the basic parameters.
(Factory setting)
ON
OFF
1 2 3 4 5 6 7 8
Counting speed/
Pin 1 Pin 2 Input mode
minimum input signal width
OFF OFF Tachometer
Item OFF ON
ON OFF AMD compatible
1 Input mode *1
OFF ON Tachometer
Refer to the
Counting speed/Minimum
2 table on the right. ON ON AMD compatible
input signal width
3 Refer to the
Pin 3 Pin 4 Output mode
Output mode *3
table on the right.
4
OFF OFF Upper and lower limit
5
Refer to the
ON OFF Area
Average processing
6 table on the right.
OFF ON Upper limit
---
7 --- ---
ON ON Lower limit
NPN/PNP
8 NPN PNP
Pin 5 Pin 6 Average processing
input mode
OFF OFF (no average processing)
OFF
* The characters displayed in reverse
ON OFF 2 times
video are the default settings.
OFF ON 4 times
ON ON 8 times
The settings made using the DIP switch can be checked in the DIP switch monitor mode.
*1. The setting is disabled (OFF) for the H7CX-R11W .
*2. The value is 5 KHz for the H7CX-R11W .
*3. For the H7CX-R11W .
Pin 3
Item ON Output mode
OFF
OFF
Upper limit
3 Output 1 mode Refer to the table on the right.
ON Lower limit
4 Output 2 mode Refer to the table on the right.
Pin 4
Output mode
OFF Upper limit
Step2 ON Lower limit
Note: Refer to the datasheet (Cat. No. M079) for detailed parameter settings.
Change to Function Setting Mode.
Power ON
DIP switch
monitor mode U 1
MODE +
MODE
3 s min.
1 s min.
dip
Function
Run mode
setting mode
1off
U 1
MODE +
MODE
3 s min.
1 s min.
Terminal Arrangement and Wiring Connections
AMD-S H7CX-R11-N
Connection Sockets: 8PFA Connection Sockets: P2CF-11
Black (white)
Sensor
Brown
(red)
HOLD HOLD
Blue Black
(black)
(white)
6 5 4 3 8 7 6 5
4
8PFA P2CF-11
Blue
(black)
9 3
10 11 1 2
7 8 1 2
Brown (red)
Tb Ta Tc
100 to 240 VAC
Contact
Tc Ta Tb
100/110 VAC
output
(200/220 VAC) Contact
output
Note 1: Wiring must be changed from an 8-pin socket to an 11-pin socket.
2: Take into consideration the length of the wires and the terminal numbers.
3: Order the P2CF-11Connecting Socket separately.
SAFETY PRECAUTIONS
Keys to Warning Symbols
Indicates a potentially hazardous situation which, if not
CAUTION
avoided, is likely to result in minor or moderate injury or in
property damage.
CAUTION
Do not allow pieces of metal, wire clippings, or fine metallic
shavings or fillings from installation to enter the product. Doing so
may occasionally result in electric shock, fire, or malfunction.
Minor injury due to explosion may occasionally occur. Do not use
the Tachometer where subject to flammable or explosive gas.
Fire may occasionally occur. Tighten the terminal screws to the
rated torque.
P2CF Socket terminals: 4.4 lb-in (0.5 N⋅m)
Minor injury due to electric shock may occasionally occur. Do not
touch any of the terminals while power is being supplied. Be sure to
mount the terminal cover after wiring.
The life expectancy of the output relay varies considerably according to its
usage. Use the output relay within its rated load and electrical life
expectancy. If the output relay is used beyond its life expectancy, its
contacts may become fused or there may be a risk of fire. Also, be sure
that the load current does not exceed the rated load current and when
using a heater, be sure to use a thermal switch in the load circuit.
Minor electric shock, fire, or malfunction may occasionally occur.
Do not disassemble, modify, or repair the Tachometer or touch
internal components.
Nomenclature
Display Section
1. Hold Indicator (orange)
(Lit when the hold input or hold key is ON.)
2. Key Protect Indicator (orange)
Lit when the key protect switch is ON.
3. Control Output Indicator (orange)
2
OUT (1-output models)
3
OUT 1 2 (2-output models)
1
4. Comparison Value 1, 2 Stage
Indicator 7
5. Present Value (Main Display)
8
Character height: 10 mm (red)
6. Comparison Value (Sub-display)
Character height: 6 mm (green)
Operation Keys 8. Hold Key
7. Mode Key
(Used to sustain the measurement value
(Used to switch mode and setting items.) and output.)
9. Up Keys
Ratings (Specifications)
Power supply voltage 100 to 240 VAC, 50/60 Hz (Other than H7CX-R11 D1)
12 to 24 VDC/24 VAC, 50/60 Hz (H7CX-R11 D1)
Allowable voltage fluctuation range 85% to 110% of rated supply voltage (12 to 24 VDC: 90% to 110%)
Power consumption Approx. 9.4 VA at 100 to 240 VAC,
A p p o r . x 7 2 . V A 4 / 7 . W t a 2 4 V A
Operating temperature range −10 to 55°C (−10 to 50°C if Tachometer are mounted side by side)
(with no icing or condensation)
Storage temperature range −25 to 70°C (with no icing or condensation)
Operating humidity range 25% to 85%
Altitude 2,000 m max.
Recommended fuse T2A, 250VAC, time-lag, low-breaking capacity
Weight Approx. 110 g (main unit only)
Installation environment Over-voltage category II, pollution degree 2. (IEC 61010-1)
Input method
No-voltage input ON impedance: 1 kΩ max. (Leakage current: 12 mA when 0 Ω)
ON residual voltage: 3 V max.
OFF impedance: 100 kΩ min.
Voltage input High (logic) level: 4.5 to 30 VDC
Low (logic) level: 0 to 2 VDC (Input resistance: approx. 4.7 kΩ)
No-voltage (NPN) input/voltage (PNP) input (switchable)
Control output Contact output 250 VAC, 3 A (resistive load)
30 VDC, 3 A (resistive load)
Electrical life of relay 100,000 operations (at an ambient temperature of 23°C)
Mechanical life of relay 10,000,000 operations (at an ambient temperature of 23°C)
External power supply 12 VDC, 100 mA
Degree of protection IEC IP66, UL508 Type 4X *
Degree of protection on the front panel of the
* Individual mounting:
UL 508 Type 4X when all of the following conditions are satisfied:
•
The Y92S-29 waterproof packing and Y92F-30 mounting adapter are used with the
Tachometer. Use only these parts for replacement.
•
The Tachometer is mounted on the flat surface of an enclosure that is rated and marked
"Type 4X for Indoor Use Only."
Settings
Set the parameters that cannot be set with the DIP switch.
Set the parameters using the U Key.
The characters displayed in reverse video are the default settings.
Display Parameter name Set value
Decimal point
dp ------, -----.-,
position ----.--, ---.--- *1
Prescale value to1.000 to 99.999
pscl 0.001
Averaging method , *1
avgt
Auto-zero time 0.1 to
auto0 999.9
30 Hz
Startup time 0.0 to 99.9
10 ms
10 kHz *2 Peak/bottom off, on *1
dhld
1 ms
hold enabled
Output to 99999
hys 0
hysteresis
Output OFF delay
0.00 to 19.99
offd
Set value upper limit 1 to
sl-h 999999
Key protect
kypt kp-1, kp-2, kp-3, kp-4,
level kp-5, kp-6, kp-7 *1
Models other than "-R11W " Models
Output ON count to 9999
on-a 0
alarm set value
Output ON
on-c
---
count monitor value
"-R11W " Models
Output 1 OUT1) ON
on1a 0 to
9999
count alarm set value
Output 2 OUT2) ON to 9999
on2a 0
count alarm set value
Output 1 OUT1) ON
on1c
---
count monitor value
Output 2 OUT2)
on2c
---
ON count monitor value
After reaching the last set value, the U Key will scroll to the first set value.
*1:
Converting from the AMD-S to the H7CX-R11-N
Characteristics
Model
AMD-S
Item
100 to 110 VAC
Power supply
voltage 200 to 220 VAC
Voltage input (high: 4 to
Input method
14 V, low: 0 to 1 V)
External power
12 VDC ±1 V, 12 mA
supply
5 A at 200 VAC (resistive
Relay output
Sensor
load)
Rotation increase (AMD-
SU )
Output mode
Rotation decrease (AMD-
SL )
Setting method
Input pulse interval (s)
*
Detection rota- 6 to 6,000 rpm
tion rate range (for 1 pulse/rotation)
Always from 0.1 to 10 s
Startup time (Always 10 s if not
specified.)
Output relay electrical
Life expectancy
operations of 500,000 min.
Memory backup None
*When set to AMD mode.
Precautions for Safe Use
1) When mounting the Tachometer to a panel, tighten the two mounting screws alternately, a little at a
time, so as to keep them at an equal tightness. If the panel screws are tightened unequally, water may
enter the panel.
2) Store the Tachometer at the specified temperature. If the Tachometer has been stored at a temperature
of less than −10°C, allow the Tachometer to stand at room temperature for at least 3 hours before use.
3) Mounting the Tachometer side-by-side may reduce the life expectancies of internal components.
4) Use the Tachometer within the specified ranges for the ambient operating temperature and humidity.
5) Do not use in the following locations:
• Locations subject to sudden or extreme changes in temperature.
• Locations where high humidity may result in condensation.
• Locations with excessive vibration or shock.
• Locations subject to water.
• Locations subject to oil.
6) Do not use this Tachometer in dusty environments, in locations where corrosive gasses are present, or in
locations subject to direct sunlight.
7) Install the Tachometer well away from any sources of static electricity, such as pipes transporting
molding materials, powders, or liquids.
8) Do not use the Tachometer outside of the rated ranges for vibration, shock, water exposure, and oil
exposure.
9) Internal elements may be destroyed if a voltage outside the rated voltage range is applied.
10) Separate the Tachometer from sources of noise, such as devices with input signals from power lines
carrying noise, and wiring for I/O signals.
11) Do not connect more than two crimp terminals to the same terminal.
12) Up to two wires of the same size and type can be inserted into a single terminals.
13) Use the specified wires for wiring. Applicable Wires: AWG 18 to AWG 22, solid or twisted, copper
14) Install a switch or circuit breaker that allows the operator to immediately turn OFF the power, and label it
to clearly indicate its function.
15) When the Tachometer is operated with no-voltage input (NPN input), approximately 14 V is output from
the input terminals. Use a sensor that contains a diode.
16) Use a switch, relay, or other contact so that the rated power supply voltage will be reached within 0.1
seconds. If the power supply voltage is not reached quickly enough, the Tachometer may malfunction or
outputs may be unstable.
17) Use a switch, relay, or other contact to turn the power supply OFF instantaneously. Outputs may
malfunction and memory errors may occur if the power supply voltage is decreased gradually.
18) When changing the comparison value during operation, because the H7CX uses a constant read-in
system, the output status will change if the comparison value is changed to a value on the other side of
the present value.
19) When the power is turned ON using the factory settings, the output will turn ON after 999.9 s if no pulses
are received as count input.
20) Do not use organic solvents (such as paint thinners or benzine), strong alkali, or strong acids. They will
damage the external finish.
21) Confirm that indications are working normally, including the backlight LED, and LCD. The indicator LEDs,
LCD, and resin parts may deteriorate more quickly depending on the application environment, preventing
normal indications. Periodic inspection and replacement are required.
22) The waterproof packing may deteriorate, shrink, or harden depending on the application environment.
Periodic inspection and replacement are required.
Terminal Arrangement
Wire properly after checking the specifications of the power supply voltage.
H7CX-R11-N/-R11D1-N
5
Hold*
6 Count
Hold*
4
6 7
5
Hold*
4
9
0 V
3
(−)
2 10
Sensor
1 11
12 VDC
(+)
6th digit 1st digit External
power supply
(−) (+)
*The hold function is the same whichever terminal is connected. Terminals are not connected
internally and so do not use them for cross wiring.
to
1 6
Input Connections
No-voltage Inputs (NPN Inputs)
Open Collector
PLC or
sensor
C 1 / 2 o t 2 4 V D C
Note: Operate with transistor ON
Voltage Inputs (PNP Inputs)
No-contact Input
(NPN Transistor)
Sensor
Note: Operate with transistor OFF
Tachometer conforms to
Step3
Set the comparison values after switching from function setting mode to run mode.
Output Mode: Upper/
Lower Limit or Area
Set value
---
2280.00
Measurement value
(Not displayed for R11W)
Displayed only when the mode is
not AMD compatible mode.
MODE
MODE
---
Measurement value
2280.00
Displayed only when the mode is
not AMD compatible mode. Unit: second Comparison value 1
2300.00
SET1
Unit: second
MODE
---
Measurement value
2280.00
Comparison value 2
The position of the decimal point for the 2000.00
SET2
value after prescaling will be set according
to the decimal point position setting.
Output Mode Setting
Unit: Second
Models Other Than H7CX-R11W in Tachometer Mode
---
--- Output mode
Operation
setting
Comparison value 2
(Upper-limit)
× 1,000
Measurement
value
The monitor value is only displayed. Upper
Comparison
× 1,000 and value 1
It cannot be set.
(Lower-limit)
lower
limit
OUT
× 1,000 (HI-LO)
ON condition: Measurement value ≤ Comparison
value 1 or Measurement value ≥ Comparison
value 2
× 1,000
Note: When comparison value 1 ≥ Comparison
value 2, the output is always ON regardless
of the comparison value.
The monitor value is only displayed.
× 1,000
It cannot be set.
Comparison
The monitor value is only displayed.
value 2
× 1,000
It cannot be set.
Measurement
value
Comparison
Area
value 1
(AREA)
OUT
Condi- Comparison value 1 ≤
Comparison value 2
tion
ON Comparison value 1 ≤
condi- measurement value ≤
Comparison value 2
tion
Setting Procedure
Perform the following settings to achieve the functions of the
AMD-S using the H7CX-R11-N.
H7CX-R11-N
DIP Switch Settings
100 to 240 VAC
Model
AMD-S
Item
No-voltage input/voltage
input (high: 4.5 to 30 V, low:
0 to 2 V)
0.01 to 0.1 s
(AMD-S 1),
12 VDC (±10%), 100 mA
Measuring
0.1 to 1 s
ranges
(AMD-S 2),
3 A at 250 VAC/30 VDC
1 to 10 s
(resistive load)
(AMD-S 3)
HI-LO, AREA, HI-HI, LO-LO
Rotation increase
(Set using DIP switch.)
detection
(AMD-SU )
Output
mode
Input pulse interval (s) * Rotation decrease
detection
(AMD-SL )
0.00006 to 20,000 rpm *
(for 1 pulse/rotation)
Average
None
processing
Setting range: 0.0 to 99.9 s
Input mode Voltage Input
Output relay electrical
operations of 100,000 min. Operation Key Settings
EEPROM (overwrites: Model
AMD-S
100,000 times min.)
Item
Startup
Fixed (0.1 to 10 s)
time
Note: The characters displayed in reverse video are the default settings.
1) An inrush current of approx. 10 A will flow for a short time when the power supply is turned ON. If
the capacity of the power supply is not sufficient, the Tachometer may not start. Be sure to use a
power supply with sufficient capacity.
2) Maintain voltage fluctuations in the power supply within the specified operating voltage range.
3) To allow for the startup time of peripheral devices (e.g., sensors), start Tachometer timing operation
200 ms to 290 ms after turning ON the power. The input signal will not be accepted before 200 to
290 ms has elapsed.
4) The input signal will not be accepted after 5 to 1005 ms has elapsed from when the power supply is
turned OFF.
5) Inrush current generated by turning ON or OFF the power supply may deteriorate contacts on the
power supply circuit. Turn ON or OFF to a device with the rated current of more than 10 A.
6) The capacity of the external power supply is 100 mA at 12 V. When using a 24 VAC/12 to 24 VDC
power supply, reduce the load with the power supply voltage, as shown in the following diagram
(DC power supplies only).
7) If the prescale value setting is incorrect, a counting error will occur. Check that the settings are
correct before using this function.
8) Make sure that all settings are appropriate for the application. Unexpected operation resulting in
property damage or accidents may occur if the settings are not appropriate.
9) Do not leave the Tachometer for long periods at a high temperature with output current in the ON
state. Doing so may result in the premature deterioration of internal components (e.g., electrolytic
capacitors).
10) EEPROM is used as memory when the power is interrupted. The write life of the EEPROM is
100,000 writes. The EEPROM is written when the power is turned OFF or when switching from
function setting mode to run mode.
11) Dispose of the product according to local ordinances as they apply.
• When conforming to EMC standards, refer to the information provided in this
Instruction Manual for cable selection and other conditions.
• This is a class A product. In residential areas it may cause radio interference, in
which case the user may be required to take adequate measures to reduce
H7CX-R11W-N/-R11WD1-N
interference.
• Basic insulation is provided between power supply and input terminals and
Internal circuit
between input and output terminals.
• Connect the input and output terminals to devices that do not have any exposed
Count 1 OUT2
charged parts.
• When double insulation is required, apply double insulation as defined in IEC
Count 2
Internal circuit
Internal circuit
60664 that is suitable for the maximum operating voltage with clearances or
6 7
5
solid insulation.
8
4 8
0 V
9
3 9
(−)
Precautions for Compliance with UL Standards and CSA Standards
2 10
Sensor
1 11
12 VDC
(+)
Notice to Users of the H7CX in the USA and Canada
External
OUT
OUT1
Please use the following installation information instead of the general information in the instruction
power supply
manuals in order to use the product under certified conditions of UL and CSA when the product is
(−) (+)
installed in the USA or Canada. These conditions are required by NFPA 70, National Electrical Code in
the USA and the Canadian Electrical Code, Part I in Canada and may vary from information given in
the product manuals or safety precautions.
• Installation in a Panel
H7CX is normally installed on a flat surface in an operation panel. Use a Type 1 Enclosure for the
operation panel.
• Use the isolated source for Inputs.
• Environment
Surrounding Air Temperature: −10 to 40°C
•
Use an isolated source for power input for H7CX- D1.
Voltage Output Contact Input
• Accessories (Order Separately)
Sensor
Track Mounting/Front Connecting Socket
Flush Mounting Adapter
Waterproof Packing
Note: Operate with transistor ON Note: Operate with relay ON
Contact Input
No-contact Input
(PNP Transistor)
When the key-protect switch is ON,
Sensor
individual key operations can be
disabled to prevent setting errors
according to the key protect levels
(KP-1 to KP-7) shown in the
following table.
Note: Operate with transistor ON Note: Operate with relay ON
* Key protect levels are set in
function setting mode.
KP-1 (default setting)
* Changing mode to DIP switch monitor mode or function setting mode.
The following displays will appear if an error occurs.
Output Mode:
Upper Limit or Lower Limit
Main display
ffffff
2280.00
Measurement value
e1
e2
MODE MODE
e2
Measurement value
2280.00
Comparison value
2300.00
SET
*1. This includes times when the life of the EEPROM has expired.
*2. Occurs when the measurement value reaches 999,999.
*3. Display flashes (1-second cycles).
*4. The normal display and e3 will appear alternately.
When the Hold Key is pressed, e3 with no longer be displayed even if the alarm set value is exceeded.
(Monitoring is possible, however, because the counter will continue without clearing the output ON count.)
Models Other Than H7CX-R11W in AMD Compatible Mode
Output mode Output mode
Operation
setting setting
Comparison
Comparison value 2
value
(Upper-limit)
(Upper-limit)
Measure-
Upper Measurement
ment value
value
Upper and
Comparison
limit lower value 1
(Lower-limit)
(HI-HI) limit
OUT (HI-LO)
ON condition: Measurement value < Comparison
value 1 or Measurement value ≥ Comparison
ON condition: Measurement value ≥
Note:
value 2
Comparison value
Note:
Measurement
Measure-
value
ment value
Comparison
Lower Area
value 1
Comparison
limit (AREA)
value
(LO-LO) (Lower-limit)
OUT
Comparison value 1 >
Comparison value 2 ON condition: Measurement value ≤
Note:
Comparison value
Comparison value 2 ≤
measurement value ≤
Comparison value 1
*If time "a" is exceeded during operation, the output will turn ON. If time "b" is exceeded during
operation, the output will turn OFF. (If average processing is enabled, the output operation will be
performed when the time is exceeded once.)
H7CX-R11W
Upper
limit
H7CX-R11-N
(HI-HI)
DIP switch pin status Set value
1 2 3 4 5 6 7 8
ON
OFF
Set DIP switch pin 1 to ON for
AMD-compatible mode.
1 ms
Pin 1 Pin 2 Input Counti n g Speed /
10 ms
mode Mi n i m um i n put si g nal wi d th
OFF OFF Tachometer 30 Hz
ON OFF AMD compatible 10 ms
Lower
OFF ON Tachometer 10 kHz
limit
ON ON AMD compatible 1 ms
(LO-LO)
1 2 3 4 5 6 7 8
ON
Lower
limit
OFF *
1 2 3 4 5 6 7 8
ON
Upper
limit
OFF
1 2 3 4 5 6 7 8 OMRON EUROPE B.V.
ON
Wegalaan 67-69-2132 JD Hoofddorp
OFF
OFF The Netherlands
Tel: (31)2356-81-300/Fax: (31)2356-81-388
1 2 3 4 5 6 7 8
ON
PNP
OFF OMRON ELECTRONICS LLC (U.S.A.)
Tel: (1) 847-843-7900/Fax: (1) 847-843-7787
* When set to AMD Compatible Mode
H7CX-R11-N
OMRON ASIA PACIFIC PTE. LTD. (SINGAPORE)
Tel: (65) 6835-3011/Fax: (65) 6835-2711
Parameters Setting range Set value
OMRON (CHINA) CO., LTD.
(STMR) Tel: (86) 21-5037-2222/Fax: (86) 21-5037-2200
(0.0 s) (99.9 s)
Precautions for Correct Use
100
Load
current
(mA)
20
0
10.8 15
Power supply voltage (VDC)
Conformance to EN/IEC Standards
11-pin P2CF-11
11-pin, finger-safe type P2CF-11-E
--- Y92F-30
--- Y92S-29
Key-protect Switch Settings
ON (enable)
OFF (disable)
(Factory setting)
Key protect indicator
Level * Mode change Display switch in the run mode Hold Key Up Key
Invalid Valid Valid Valid
Invalid Valid Invalid Valid
KP-2
Invalid Valid Valid Invalid
KP-3
KP-4 Invalid Valid Invalid Invalid
KP-5 Invalid Invalid Invalid Invalid
KP-6 Invalid Invalid Valid Valid
Invalid
KP-7 Invalid Invalid Valid
Self-diagnostic Functions
Sub-display Description Output status Correction method Set value after reset
Measurement value
No change No change Measurement value ≤ 999999 No change
*3
overflow*2
Either press the hold
OFF CPU error OFF No change
key or reset the power supply.
OFF Memory error (RAM) OFF Turn ON the power again No change
Memory error Hold key
OFF Factory setting.
(EEP-ROM)*1
No change
e3 * No change Output Counter Overflow No change Hold Key
4
Output mode
Operation Operation
setting
Comparison
value
a
(Upper-limit)
Measure-
Upper
ment value
limit
(HI-HI)
OUT OUT
ON condition: Measurement value ≥
Note:
Comparison value
When comparison value 1 ≥ comparison
value 2, the output is always ON regardless
of the comparison value.
b
Comparison
value 2
Measure-
ment value
Lower
Comparison
limit
value
(LO-LO) (Lower-limit)
OUT
OUT
Comparison value 1 ≤ Comparison value 1 >
Condi- ON condition: Measurement value <
Note:
Comparison value 2 Comparison value 2
tion
Comparison value
ON Comparison value 1 ≤ Comparison value 2 ≤
condi- measurement value < measurement value <
Comparison value 2 Comparison value 1
tion
Output 1 Output 2
Comparison Comparison
value 1 value 2
CP1 display
CP2 display
value
value
OUT1 OUT2
ON condition for output 1: CP1 present value (display value) ≥ Comparison value 1
ON condition for output 2: CP2 present value (display value) ≥ Comparison value 2
Output 1 Output 2
CP2
CP1
display value
display value
Comparison Comparison
value 1 value 2
OUT1 OUT2
ON condition for output 1: CP1 present value (display value) ≤ Comparison value 1
ON condition for output 2: CP2 present value (display value) ≤ Comparison value 2
a
b
