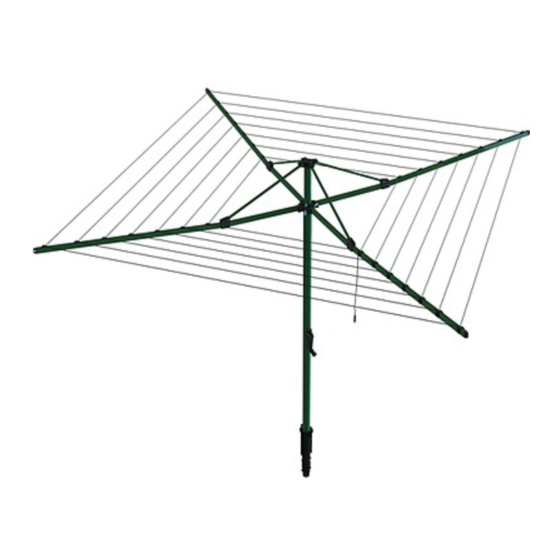

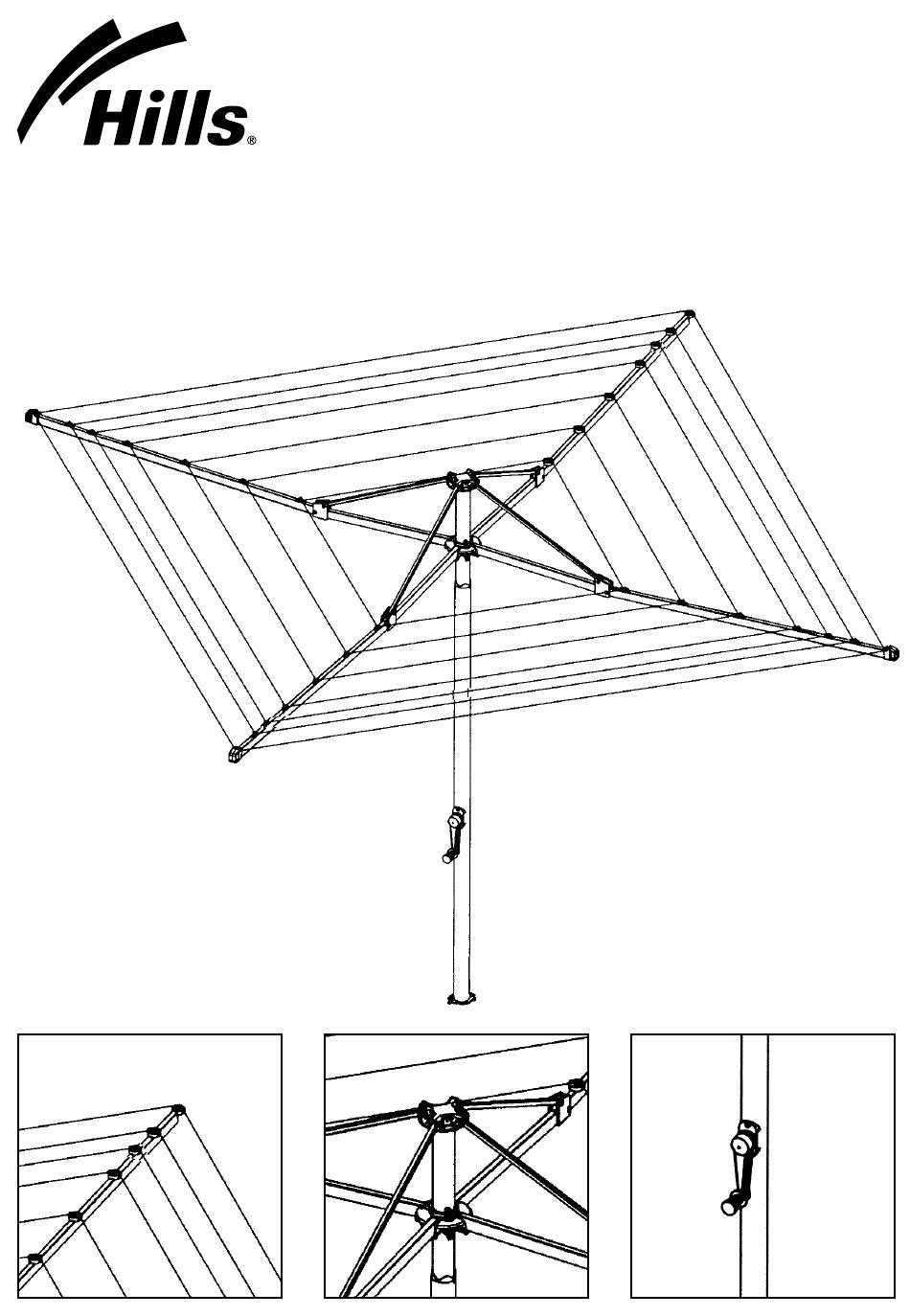

- Page 1 Traditional Rotary 42 Hoist Owner’s Manual...
-
Page 2: Carton Contents
Introduction Congratulations Carton Contents Congratulations on the purchase of your Part name Qty. new Hills Traditional Rotary Hoist, which Main standard will bring you many years of trouble free and Head assembly efficient outdoor drying. Ground socket It is important that you read this Owner’s... -
Page 3: Installation
Installation Site Selection Fig. 1 Select a suitable area for installation. Allow 4.6m (15’) diameter clearance for your Rotary Hoist (Fig. 1). 4.6m (15’) Install the Ground Socket 1. Dig a hole 250mm (10”) diameter by approximately 650mm (26”) deep (Fig. 2). 2. Place approximately 200mm (8”) of coarse gravel into the hole. Fig. 2 3. - Page 4 Assembly Assemble the Hoist Fig. 3 1. Remove any packaging from the head assembly. 2. Place the main standard in the ground socket. 3. Place the bottom of the head assembly into the top of the Remove any main standard and lower it packaging gently until it stops (Fig. 3). 4. To engage, raise the head assembly by approximately Tie-off cord 100mm (4”) and lower until...
-
Page 5: Operation
Operation Operating the Hoist 3. To Fold: Press the latch to release the 1. To adjust the height of your Rotary Hoist, lower cross. Place your hands on the wind the handle and head assembly arms and pull downwards. down and then fit one or more of the plastic spacers in the ground socket. The 4. - Page 6 Line Tensioning Tensioning the Lines 2. Insert the tensioner key into the end The lines are pre-tensioned in the factory. tensioner and turn clockwise until the line No initial tensioning is required. sag has been removed. If over time, the line does need tensioning, the Rotary Hoist must be in the open 3.
- Page 7 Line Tie-Off Cord Line Tie-Off Cord IMPORTANT: The extended length of clothesline fitted with a plastic toggle is called the line tie-off cord, and is designed to keep lines neatly together when the Rotary Hoist is not in use. Never leave the line tie-off cord in an unsecured position.
-
Page 8: Handy Hints
If there is any damage, parts up drying time. should be replaced with original Hills spares or the Hoist repaired before using again. Raise your hoist for maximum drying... -
Page 9: Guarantee And Contact Details
Unless any addition or attachment to this or visit www.hills.com.au product has Hills specific approval or is sold as a Hills product the warranty on this product is waived. The product is designed to perform a specific task under established... - Page 10 Hills Industries Limited A.B.N. 35 007 573 417 Issue October 2008 PD1971b...
