Summary of Contents for Hills FD52007

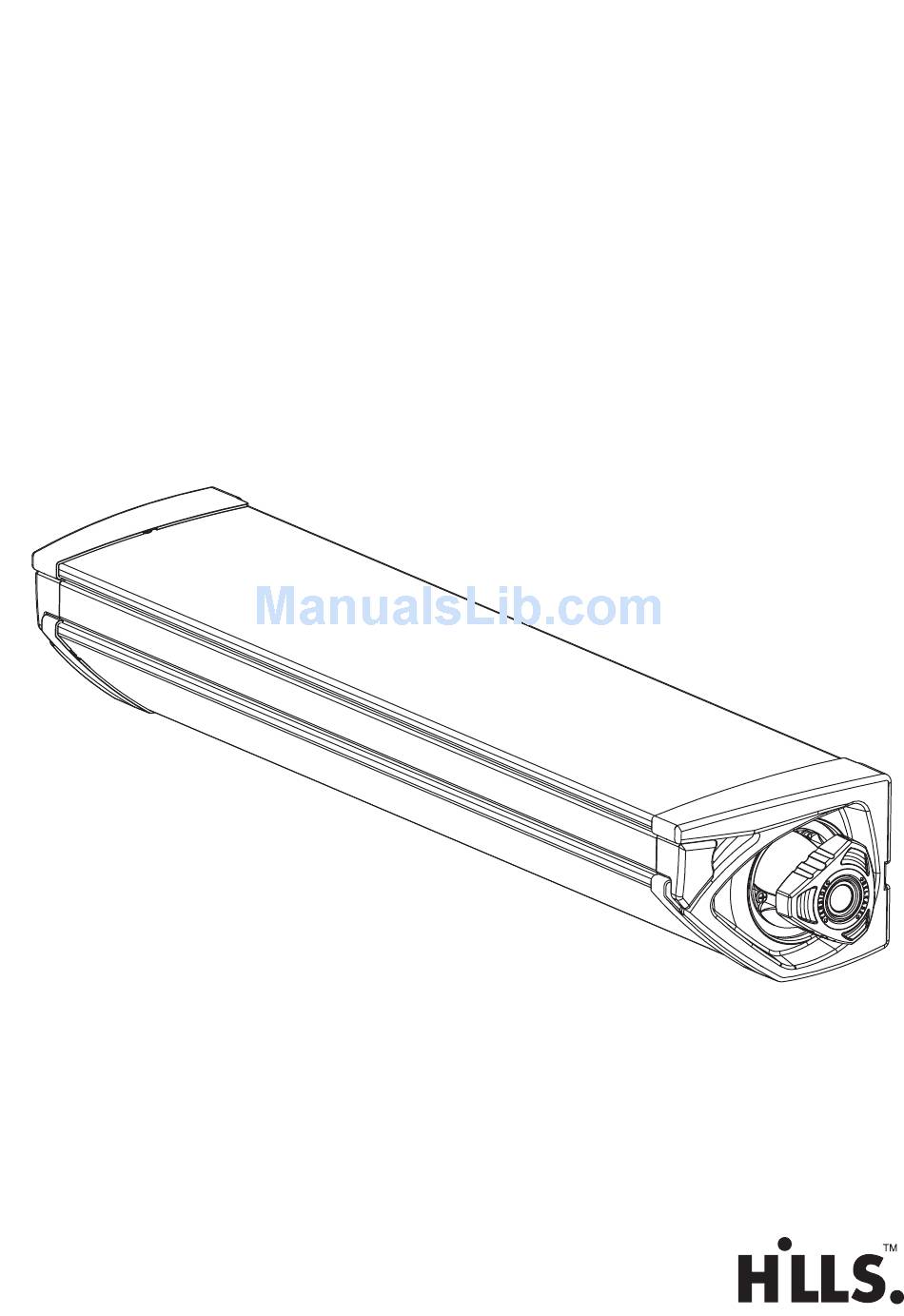

  • Page 1 retracting clothesline product manual 5-line...
  • Page 2: Mounting Options

    Clothesline cabinet or receiving bracket on posts, the following products are available. Thank you for choosing Hills. Post Kits: 100550 – Hills Retracting Clothesline Post Kit Warning Wall to Post Mount Bar Kits: • Do not allow children or pets to swing on the Requires: 100548 –...
  • Page 3: Site Selection

    Site Selection Installation Height Step 1 – Select a suitable location Step 2 – Recommended installation height Select a suitable location for either wall or post mounted installations. 2.1 For all installations, we recommend the operational height for the line is approximately 50mm (2") above the user’s head height.
  • Page 4: Installation

    Installation Installation Step 3 – Mounting your cabinet to a wall Step 3 (continued) – Mounting your cabinet to a wall 3.1 Prepare your cabinet location 3.6 Remove the arm from the cabinet by pulling on the two blue end caps. Remove the end covers only from the cabinet by unscrewing the two screws (Fig 3).
  • Page 5 Installation Installation Step 4 – Mounting your cabinet to a post Step 4 (continued) – Mounting your cabinet to a post 4.1 Prepare your cabinet location 4.5 Remove the arm from the cabinet by pulling on the two blue end caps. Remove the end covers only from the cabinet by unscrewing the two screws (Fig 5).
  • Page 6 Installation Installation Step 5 – Mounting your receiving bracket to a wall Step 6 – Mounting your receiving bracket to a post 5.1 Prepare your receiving bracket location 6.1 Prepare your receiving bracket location Mark the mount hole centres on your pre-determined centre line at the desired height On the pre-determined product centre, locate the position for your post and receiving (refer to page 5).
  • Page 7: Operation

    Operation Operation Step 7 (continued) – Operation Step 7 (continued) – Operation 7.3 To tension the lines: 7.5 Hold the arm firmly, remove it from the receiving bracket and walk it back to the cabinet keeping the arm horizontal and in line with the cabinet. With the arm engaged correctly in the receiving bracket turn the tension knob on the cabinet clockwise to tension (Fig 10).
  • Page 8: Step 8 - Adjusting Tension

    Operation Operation Step 8 – Adjusting tension 8.6 If after trying the method in steps 8.2 to 8.5, your product is still not evenly tensioned to your satisfaction, you can manually adjust the tension of individual lines.* 8.1 If after installation you find your product is not tensioning uniformly, please follow 8.7 To manually tension a line: steps 8.2 to 8.5.
  • Page 9: Handy Hints

    When you don’t expect to fill the capacity of damage, parts should be replaced with original your clothesline, hang your clothes on the Hills spares. The Clothesline should be repaired outer lines, as this will allow clothes to dry more before using again.
  • Page 10: Warranty

    Warranty Warranty 1. Hills provides consumers with the following 3. Hills warrants that for the duration of the 5. This warranty is in addition to any 8. The warranty on Products is waived if any non-excludable legal rights or remedies...
  • Page 11 Hills Limited ABN 35 007 573 417 Issue January 2014 PD4205d...
