3.8 Calling Line ID Functions

The telephone is capable of decoding, saving and displaying up to 50 calling line ID numbers (CID).
Calling line ID is a paid feature provided by the telephone company (TELCO) which sends the telephone
number of the caller to the user so that he can identify who is calling before answering the call.

3.8.1 CID Type I

Upon successful reception of the CID data sent by the CO between the first and the second power ringing,
the display on the handset will show the name and number field received appropriately.

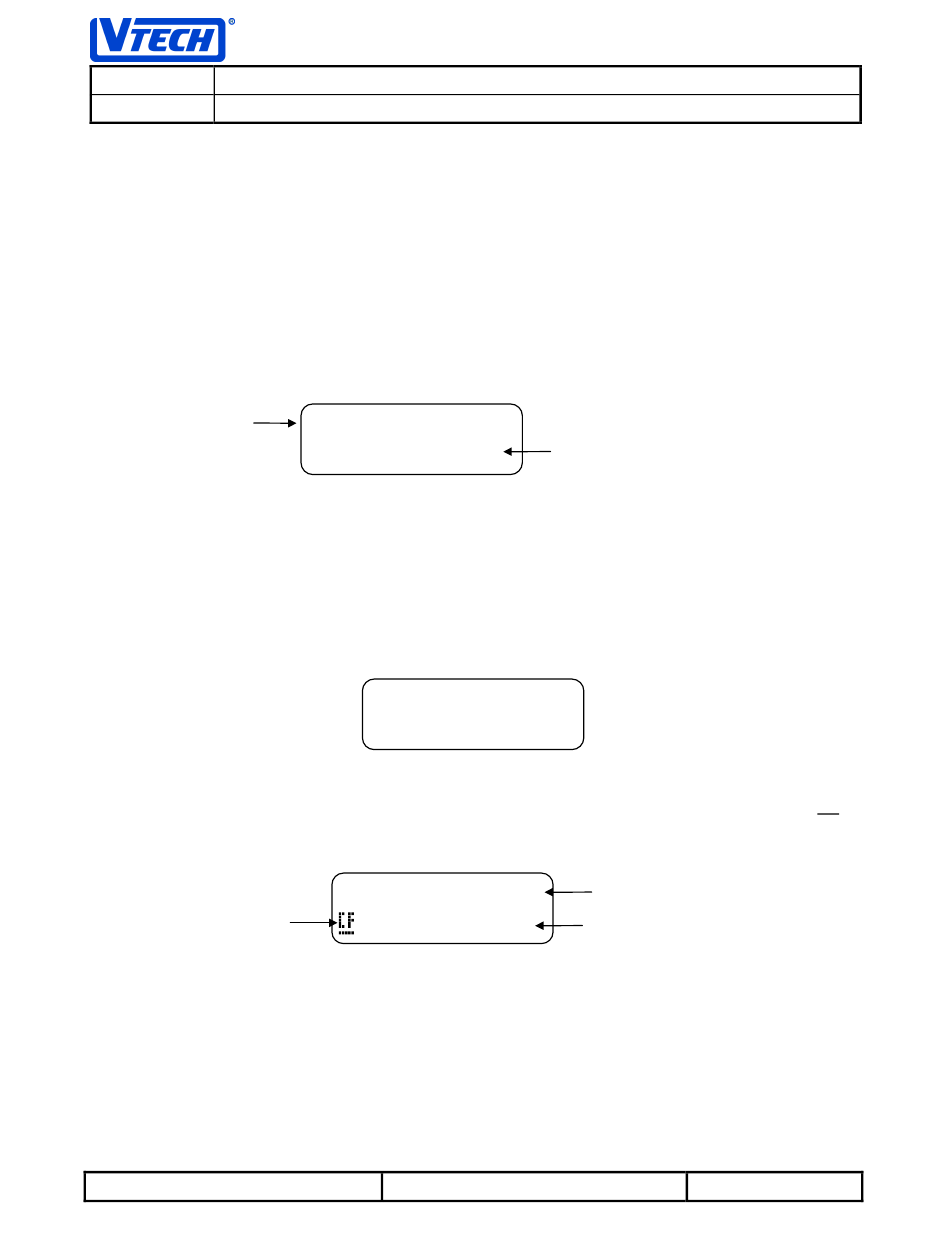

Name Field: The
first 12 characters
of this field are
displayed.
This display will persist for the duration of ringing and will remain active for 5 seconds after the last
detected power ring on signal.
Once new valid CID data is received, the new calls counter will be incremented by one.
The name and number field may also display 'PRIVATE' or 'UNAVAILABLE' if it's blocked or is not
provided by the CO. If erroneous CID data as is received (as determined by a checksum error) the
following message will be displayed:

3.8.2 Call Forward Indicator

In some cases, a user may receive calls forwarded from another telephone. To indicate this a 'CF' is
displayed in the first character of the number field as shown below:
Call Forward Indicator
This feature helps a user to identify that the call he received was not made directly to this telephone.
This feature can be disabled via a bit flag in EEPROM during factory programming to support those
customers who do not require the feature.
