4 – USE CHARACTERISTICS

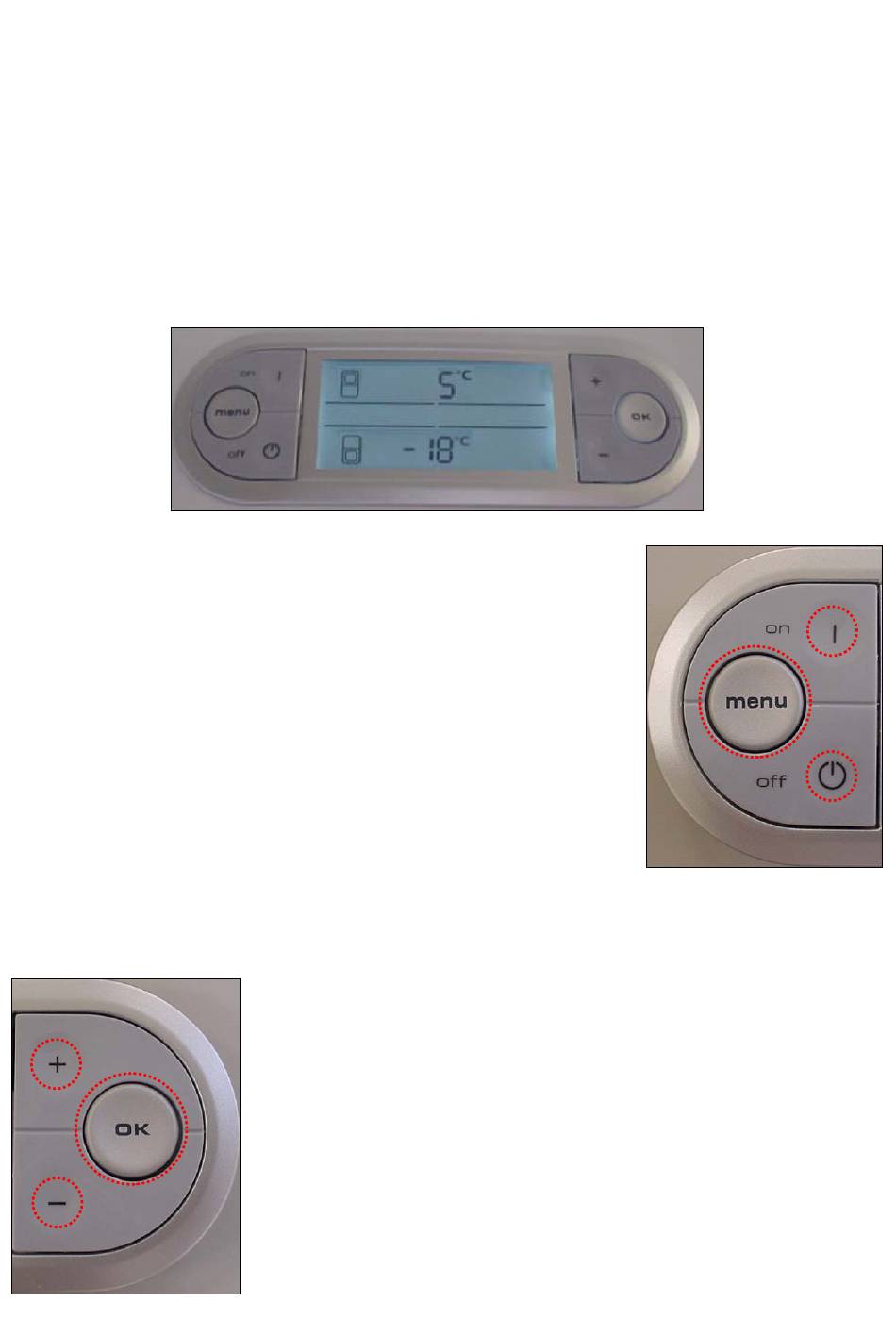

4.1 – Keys selection on the Control Panel
This product has 2 differents electronic temperature controls for which compartment, both located at the
Refrigerator Door on the Interface Panel – LCD Display.
When the product is connected for the first time to the Electrical power supply, the digital panel (LCD)
light up for 2 seconds (all icons will appear) and the buzzer will beep once, then the presentation mode
will be activated (around 10 seconds), after that, 5
and the real freezer temperature will start blinking on Freezer temperature icon followed by an Alarm
"BEEP" & Caution Alarm Icon. To disable the sound Alarm, keep OK key pressed for 3 seconds and 3
dashes will replace the real temperature until it reaches –12°C, when – 18
temperature will appear. At this moment all functions will be deactivaded, therefore, when one of the
doors is opened, it will assume the 6
a) On key
Key for turning the product on, when it is in the Stand-by (Off) mode
If the product is disconnected from the electrical power supply during
operation, or in case of lack of energy, it will assume the position On when
re-connected, or when the power returns.
b) Stand-by / Off key
Key for turning the product off when it is in its normal mode.
If the product is disconnected from power during operation in Stand-by
(Off) mode, it will assume the "Off" position when re-connected.
Whenever it is Off/ Stand-by, the display will show 3 horizontal traces on
the Freezer display and 2 on the Refrigerator display.
c) Menu key
Select / Disable the several product functions, as well as Temperature
Levels for the Freezer and Refrigerator (see functions details below). The
available options will be shown on the Display on each touch on this key. They will flash until
confirmation with the OK key.
Note: The function/program selection will always have to be confirmed with the OK key (see details
below). If it is not confirmed (OK key), after 5 seconds it will return to the prior programming.
MSEX0105i – Electronic No Frost Refrigerator Bottom Mount/ Dual Fan - Maestro High
th
Sense function.
"+"
d)
Temperature level key
It selects the Temperature level to warmer in the Freezer compartment or
in the Refrigerator compartment, depending on the selection chosen with
the menu Key.
"–"
e)
Temperatura leve key
It selects the Temperature level to colder in the Freezer compartment or in
the Refrigerator compartment depending on the selection chosen with the
menu Key.
f) OK key
It confirms the selection of the desired function previously programmed with
the Menu or Temperature Level Keys (+/-).
It also works as Off Sound Alarm – Beeper.
o
C pre-selected Refrigerator temperature will appear
o
C pre-selected Freezer
6
