Display - Decatur Electronics Surface Velocity Radar SVR2-01 User Manual

RCL
When the recall button (RCL) is pressed the unit enters recall mode if
the following are true:
• The unit is not transmitting
• All 10 measurements have been completed and the speed result
has been displayed
The function is active if the letter "r" appears on the left-hand side of
the display . Up to 15 previous readings can be reviewed .
MODE
The MODE button lets you change the resolution of the display . You
can choose to have the speed displayed in 10ths or 100ths .

4.2 Display

4.2.1 Number Segments
The 5 large digits (88888) display the speed . Resolution is
determined by the placement of the decimal point . The icons
indicate the status .
4.2.2 Status Indicator Icons
When first turned on the SVR™ performs a segment check of the
display to show that all segments and icons are working . The
following icons will appear at the top and bottom of the display
screen, however not all of the icons are for features used by the
SVR™ . The icons that represent the features that are used by the
SVR™ describe the following conditions:

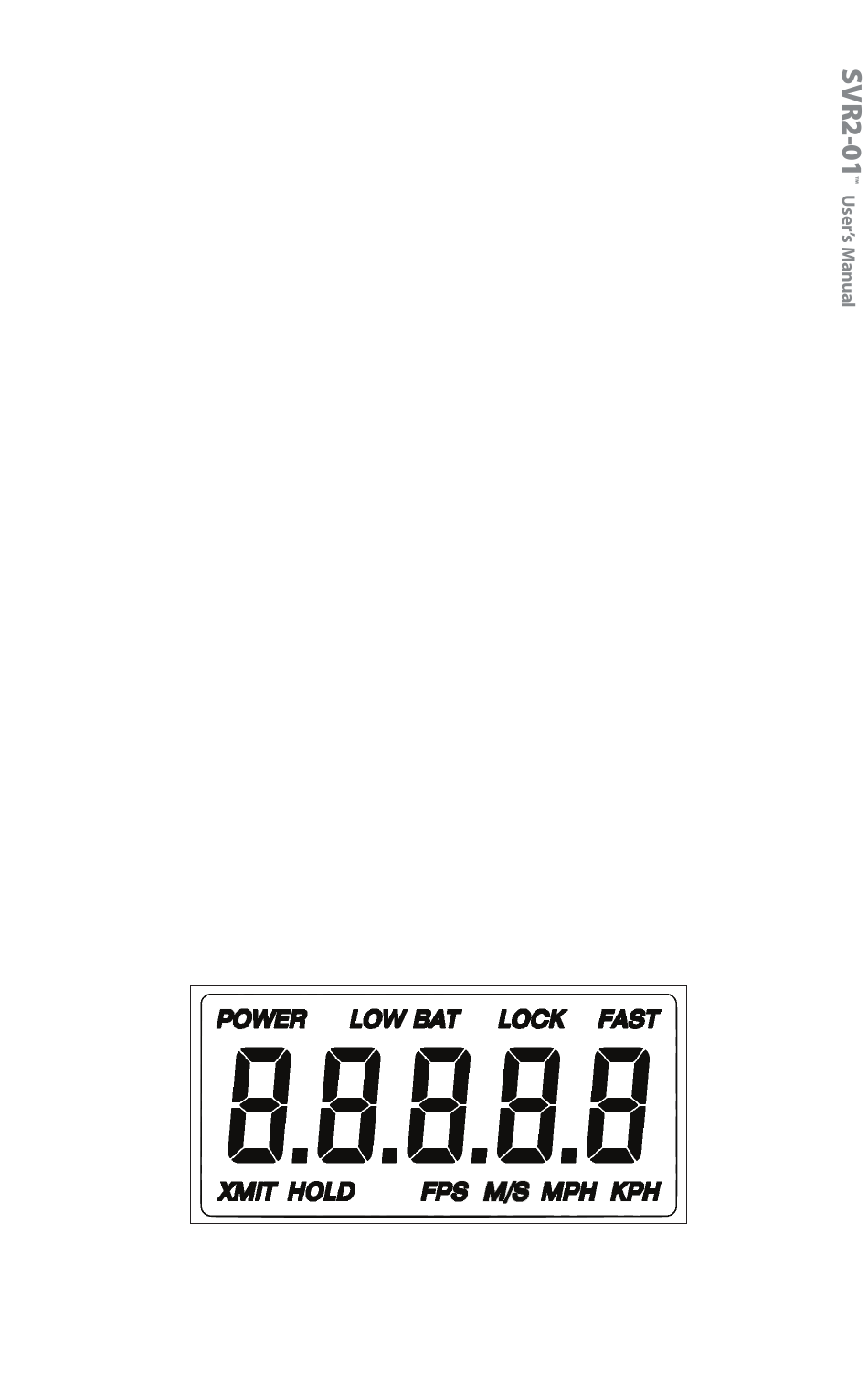

Number segments and status indicator icons .
Figure 4.2.2
