1. Installation

Use the following instructions to mount your Directional radar:
1.1 Separating the Computer/Display Unit (optional)
If the space in your motor vehicle is at a premium, you will appreciate
Genesis II Select Directional's compact size and versatile components .
You can separate and remotely mount the computer unit from the
display unit . Common places to mount it are behind the dash, under
the driver's seat, or on the console .

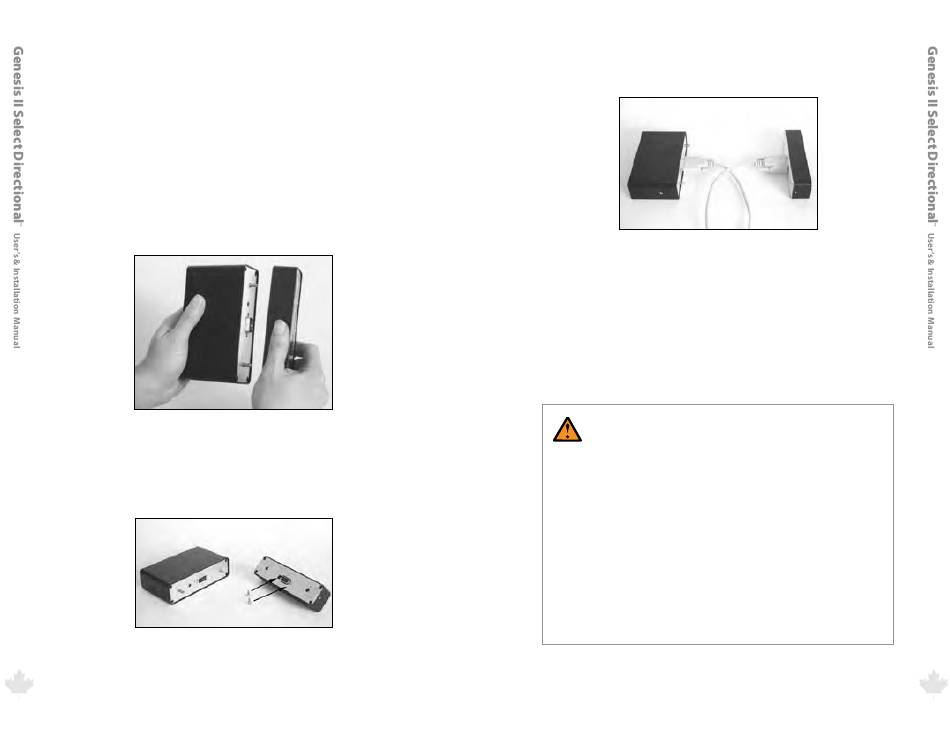

To separate the combined unit, firmly grasp the ends and pull
them apart .

Separating the computer/display unit .

Note the 9-pin connectors on each half of the unit . Screw two
standoffs into the holes next to each connector to attach the two
pieces with the 9-pin connector cable .
To connect the separated unit, first insert the
standoffs to secure the cable connectors .
10
Figure 1.1a
Figure 1.1b
25/Aug/2010
Then attach and secure the connectors with the thumbscrews on the
sides of each cable connector .
Figure 1.1c
Secure the connecting cable by fastening the
thumbscrews into the standoffs .
To return the unit to a one-piece configuration, remove the cables
and standoffs, line up the 9-pin connectors, and push the two pieces
together .
1.2 Mounting the Computer/Display Unit & Connecting Cabling.
WARNINGS
• Do not place the Genesis II Select Directional
components in locations that will obscure the driver's
view of the road .
• Double-check each component to ensure it is securely
mounted . In an accident, a loose component could
strike an occupant of the vehicle .
• Do not place the Genesis II Select Directional computer,
antennas, cables, or brackets in your vehicle's air bag
deployment zones . Refer to your vehicle's owner's
manual or call the vehicle manufacturer if you are
unsure where the air bag deployment zones are .
