5.1.5 Display Function SEN – Sensitivity Display and Adjustment
Higher numbers tell the gun to pickup surface velocity from
a further distance . Lower numbers reduce the distance . If the
sensitivity is too high the indicated velocity may be unpredictable
and erratic . Choose a value that works best for the site you are
taking measurements at .

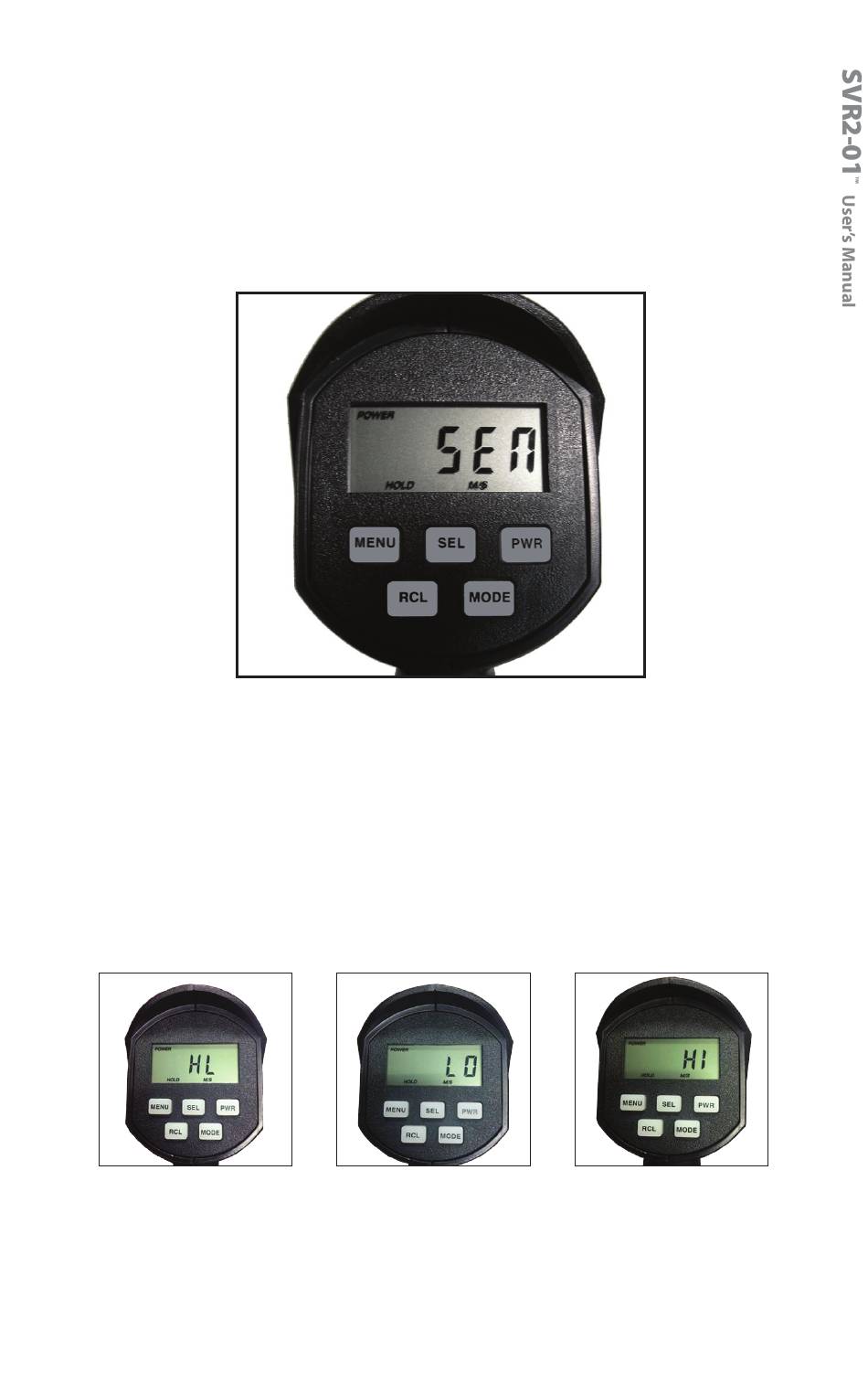

Figure 5.1.5
Sensitivity Mode

5.1.6 High/Low Speed Selection

Used to set the range of speeds that the SVR will measure . A "LO"
setting sets the SVR to measure speeds in the range of 1 fps to
30 fps (0 .3 m/s to 9 .1 m/s) . A "HI" setting sets the SVR to measure
speeds in the range of 2 fps to 65 fps (0 .6 m/s to 20 m/s) .
Figure 5.1.6c
Figure 5.1.6b
Figure 5.1.6a
High speed selection
Low speed selection
High/Low Mode
23
