5.1.1 Backlight
Use the backlight function to turn the SVR's™ display backlight on
or off . Turning the backlight off when not needed saves battery
power .
5.1.2 Display Function COS
Use COS (cosine) to adjust the cosine correction angle for the
horizontal (yaw) angle (the valid range is 0° to 60° in increments of
5°) . The correction angle chosen will be saved and retained until
you change it again .

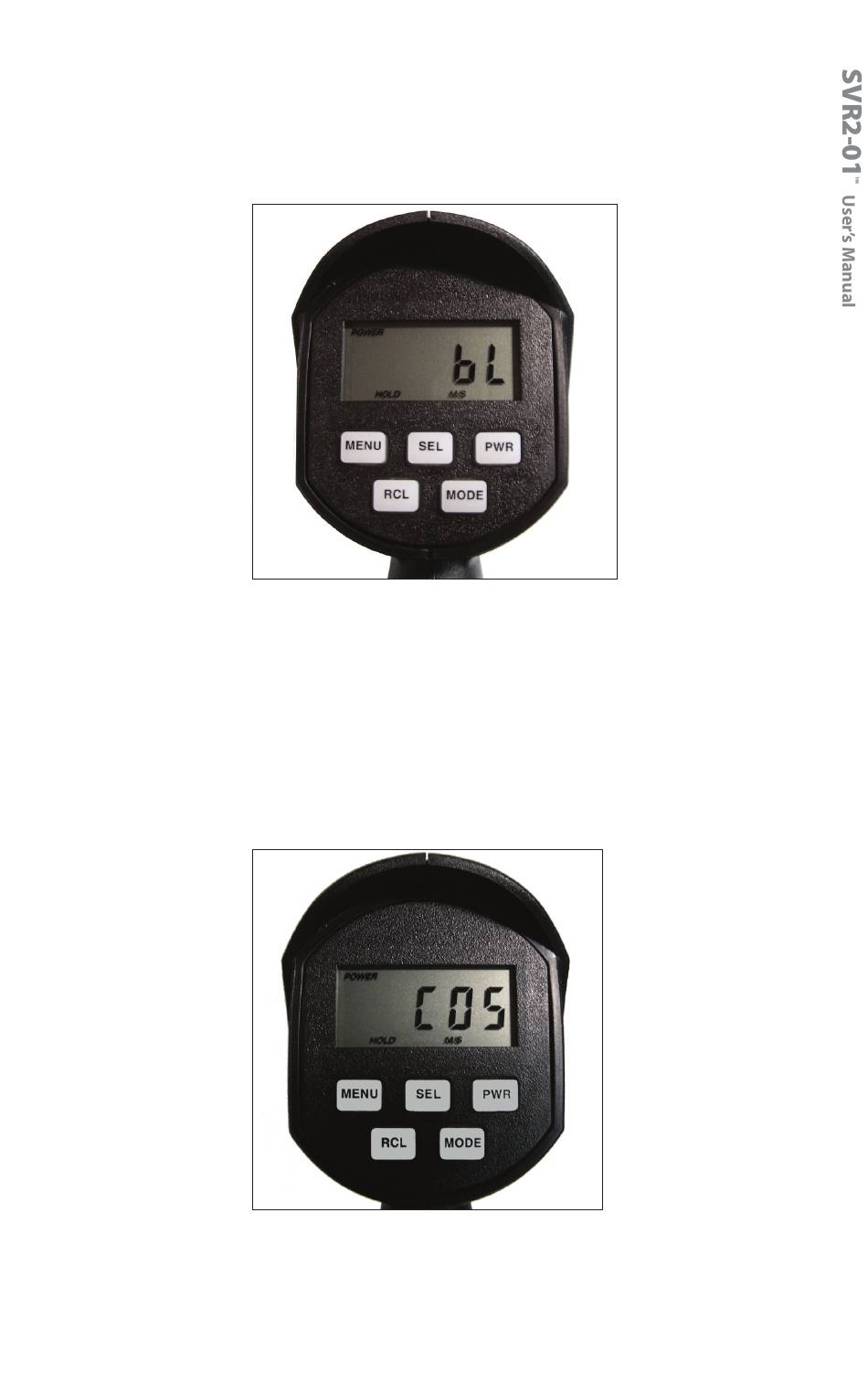

Figure 5.1.1
Backlight mode
Figure 5.1.2
Cosine mode
21
