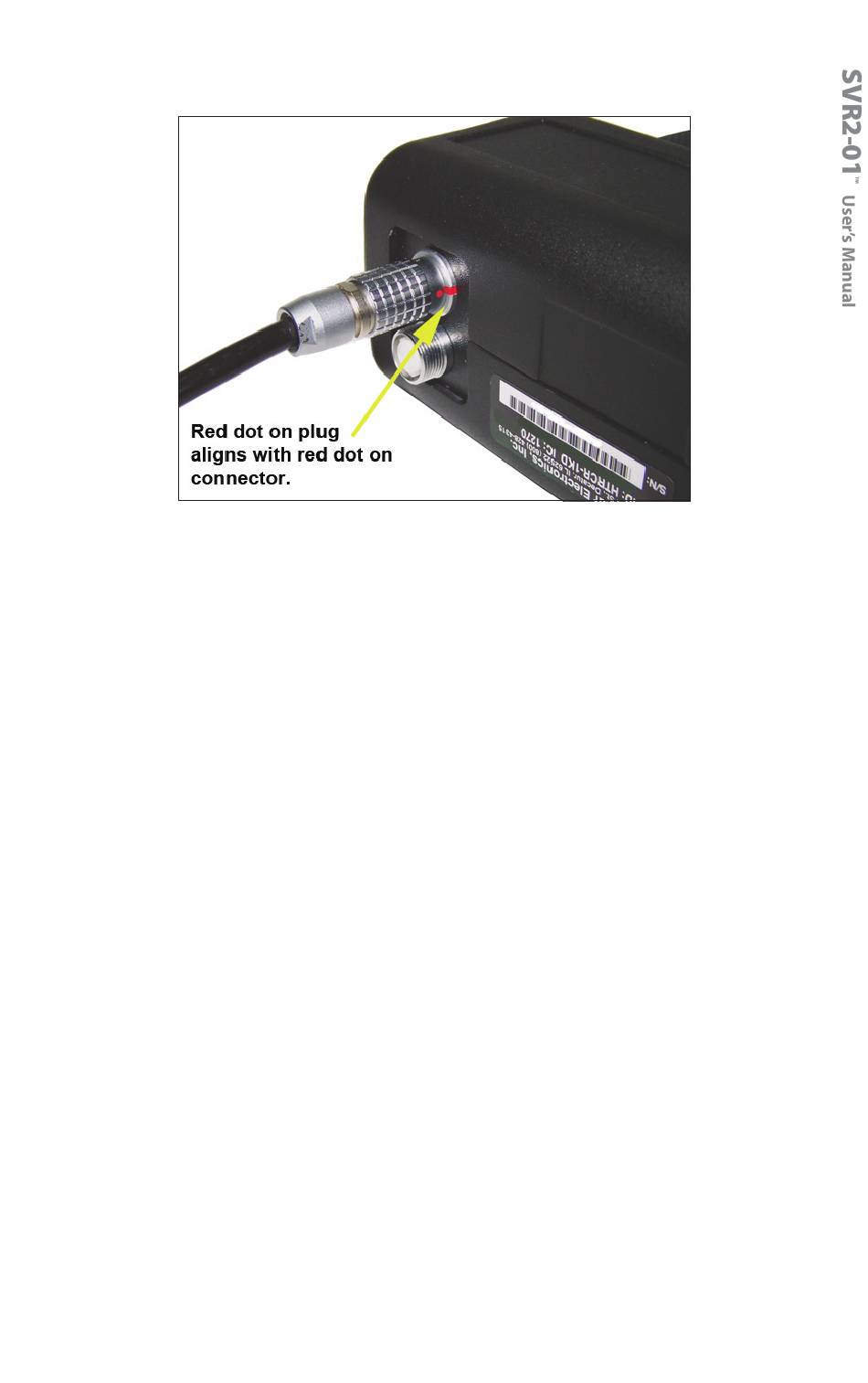

Figure 3.6
Align the dots .
Next, plug the lighter plug into an active cigarette lighter receptacle
in the vehicle . The red led on the lighter plug should come on
showing that power is being applied to the SVR™ . With the SVR™
turned off, it will take approximately 2 hours to fully charge the
batteries . Turning the SVR™ on with the cord plugged in will stop the
charge cycle allowing the gun to be operated from the power cord .
Batteries do not charge when the gun is turned on .
3.7 Charge Status Indicator (LED)
The status of the charge can be determined by the Charge Status
Indicator LED located on the bottom of the handle (See Figure 3 .7) .
The table below defines the status .
Fast blinking green light = checking battery condition
Medium blinking green light = charging battery
Solid green light = charged
Solid red light = charging error
13
