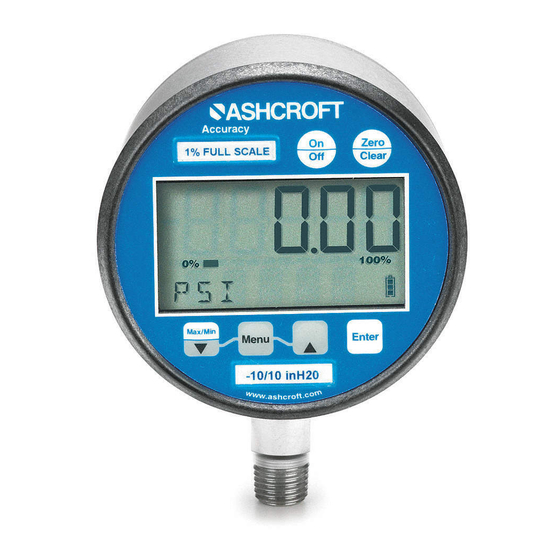

Summary of Contents for Ashcroft 2074
- Page 1 Digital Industrial Gauge Operating Instructions I&M008-10109-3/06 dwg. 83B234-01 Rev. B 12/04...
-
Page 2: Table Of Contents
With the range • Set Password • Recalibration of Gauge printed on the keypad, Ashcroft digital gauges meet • Zero Key Adjustment ASME B40.7 specification. See a complete listing of • Disabling Menu Options •... -
Page 3: Quick Reference
QUICK REFERENCE Press to turn unit on or off .88˝ high digital display (4 ⁄ ˝ case) .60 high digital display(3˝ case) While in unit of measurement mode (eg: psi), press the ZERO CLEAR button to rezero the gauge. This feature functions when displayed Bar graph pressure is within ±5% or 10% of zero value % of full scale... -
Page 4: Keypad Functions
KEYPAD FUNCTIONS KEYPAD FUNCTIONS This key allows for customization of the gauge. Turns the gauge on and off. When pressing the Pressing the MENU key allows cycling through ON/OFF key while in the off position, gauge start- MENU ON/OFF the main MENU items; UNITS, CONFIG, GRAPH, up display first indicates the software version OFF, UPDAT &... -
Page 5: Menu Functions (Menu Mode)
KEYPAD FUNCTIONS KEYPAD FUNCTIONS This key allows for selecting gauge features in the MENU FUNCTIONS menu finalizing selection. Use of the enter key is ENTER How to Use Your Menu Functions described throughout operating instructions. To set a user password (SETPW): MENU OPTIONS Step 1: Press the Menu key on the keypad UNITS: 12 units of measurement are available: psi, mmHG,... - Page 6 MENU FUNCTIONS MENU FUNCTIONS To use RECAL option: Note: Calibration of Zero, mid-scale or span can be set inde- pendently of each other. For instance, if only full-scale cali- Step 1: Press the Menu key on the keypad bration is required, press the (down arrow key) until the Step 2: Press the (up arrow key) or...
- Page 7 MENU FUNCTIONS MENU FUNCTIONS Step 5: Press the ENTER key to finalize your choice. The Step 3: press ENTER. The current setting (ENAB or dISAB) gauge display will now display SET. After two seconds the will be displayed. screen will display the pressure value for 0% on the top Step 4: Press the (up arrow key) or (down arrow...
- Page 8 MENU FUNCTIONS MENU FUNCTIONS Step 2: Press the (up arrow key) or (down arrow Note: Setpoints are limited to the full-scale pressure range of the gauge. key) until the word UPDATE appears. Step 3: Press Enter. Step 4: Press the (up arrow key) or (down arrow key) on the keypad to increase or decrease switch set-point...
-
Page 9: Engineering Units
DIGITAL INDUSTRIAL GAUGE SPECIFICATIONS: DIGITAL INDUSTRIAL GAUGE RANGES: Type: 2074 (battery), 2174 (loop), 2274 (line) Comp. mmHg in.Hg Bar/ (psi) (press.) (press.) mBar Accuracy: .25% Full Scale, terminal point -15/0/15 1500 Case Size: 3˝, 4 ⁄ ˝ -15/0/30 2000 1000 Case Material: 3˝... -
Page 10: Wiring Diagrams
WIRING DIAGRAM WIRING DIAGRAM Line Powered/Loop Powered 4-20mA (Type 2274 XAO) 4 conductor, 20 AWG shielded Line Powered (Type 2274) 2 conductor, 20 AWG shielded Black LOOP+ LOOP– ECND D10 C14 T9 F1D1 F1D1 FID2 FID2 FID6 FID6 R22 R20 FID4 FID4 Sensor Input... - Page 11 WIRING DIAGRAM WIRING DIAGRAM Line Powered/Loop Powered 4-20mA with (1) SPDT switch Line Powered/Loop Powered 4-20mA with (2) SPDT switches (Type 2274 XAOU1) 7 conductor, 22 AWG shielded (Type 2274 XAOU2) 10 conductor, 22 AWG shielded Black (N.O.) O O Blue (N.C.) Orange (COM) Brown Black...
- Page 12 WIRING DIAGRAM POWER SUPPLY – PIN A GAUGE (–) PIN B V– – METER 4-20mA (seperate power supply required when switch(s) is/are ordered) Load Limitations 4-20mA Output Only 1000 OPERATING REGION Loop Supply Voltage (Vdc) Vdc MIN = 12V + [0.022A* X (RL) ] = Loop Resistance (ohms) = Sense Resistance (ohms) = Wiring Resistance (ohms)
- Page 13 3˝ CASE PANEL Battery Installation and Replacement: The Type 2074 comes standard with batteries installed. The 3˝ case uses qty (2) AA alka- line batteries, the 4 ⁄ ˝ case uses qty (2) C alkaline batteries. Use either Duracell MN2400, MX2400 or Energizer E92BP, X92RP AAA alkaline, non-rechargeable batteries.
