Operating Instructions
1 Make sure you are properly trained in the use of
aerial lifts on cribbing, using the information
provided in this manual.
2 Make sure the Genie aerial lift has been
modified with a lock-out switch that disables the
drive function. This switch will be located on the
ground control panel and labeled with a patch
(part number 97549). NOTE: If the machine
does not have a lock-out switch, contact your
Genie dealer to order a switch installation kit.
Note: Z-80/60 machines will not have a lock-out
switch. Use the operating software and follow the
Drive Disable Instructions to disable the drive
function while lifting.
3 Place the cribbing on a surface that complies
with the requirements of this manual and the
illustrations below.
4 With the machine in the stowed position, drive
onto the cribbing. One set of wheels or tracks
must remain on the ground.
5 Be sure the base of the machine is level on the
cribbing.
6 Move the drive disable switch on the ground
control panel to lock out the drive function (all
machines except Z-80/60).
7 Operate the boom functions according to the
instructions in the appropriate operator's
manual.

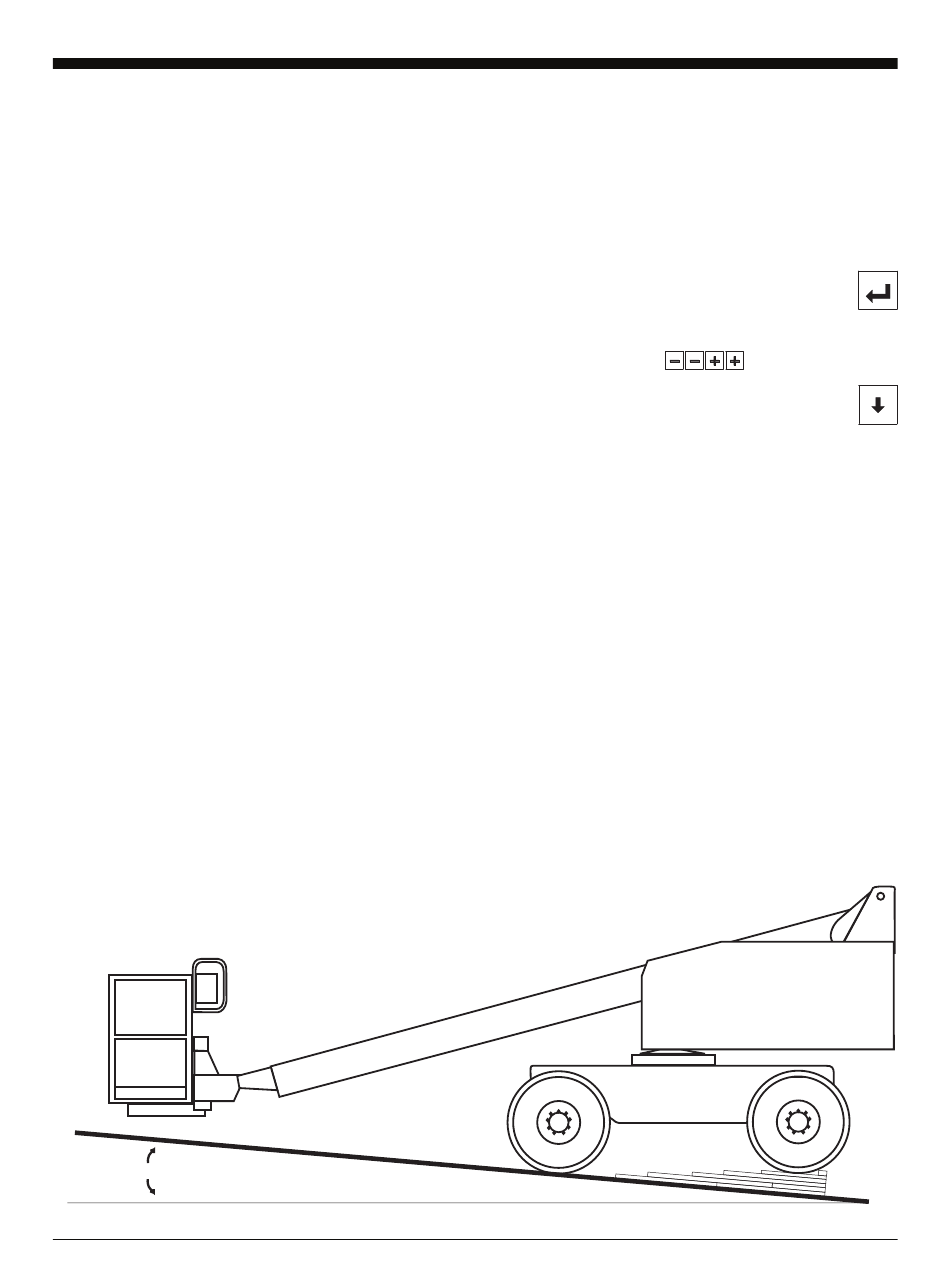

6° (10%) max.
Part No. 82943

Instructions For Use

Drive Disable Instructions for Z-80/60
1 At the ground controls, turn the key switch to
the off position.
2 Press and hold the enter button and turn
the key switch to ground control.
3 When the system beeps, release the enter
button and press
4 Press the down arrow button repeatedly
until the LED screen displays
.
OPTION NO CO
5 Press the plus button to scroll through the
options until is displayed. Press the enter
DCONS
button.
6 Press the down arrow button until
displayed.
7 Press the plus button until
Press enter.
8 To return to normal drive function, repeat steps
1 through 3. Press the down arrow button
repeatedly until the LED screen displays
/
LIFT DRIVE OPTION DCONS
9 Press the minus button until
Press the enter button.
10 Press the down arrow button until
displayed.
11 Press the plus button until
Press enter.
Cribbing Instructions
/
LIFT DRIVE
is
?
EXIT NO
is displayed.
YES
.
is displayed.
NO CO
is
?
EXIT NO
is displayed.
YES
5
