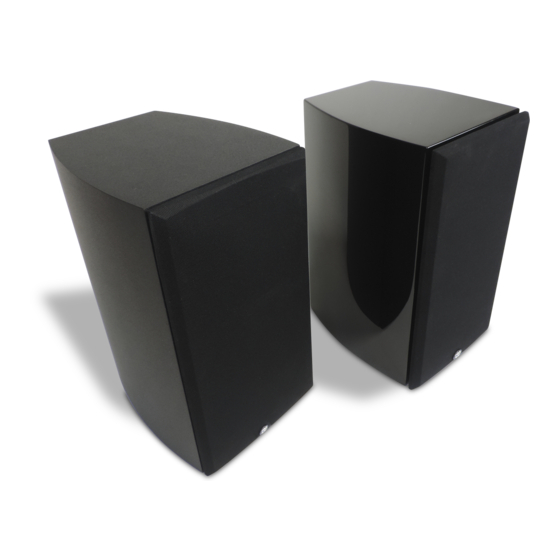

RBH Sound R-5E Owner's Manual

Impression series freestanding speakers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IMPRESSION SERIES
FREESTANDING SPEAKERS
O w n e r ' s M a n u a l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R-5E and is the answer not in the manual?

Questions and answers

Related Manuals for RBH Sound R-5E

Summary of Contents for RBH Sound R-5E

  • Page 1 IMPRESSION SERIES FREESTANDING SPEAKERS O w n e r ’ s M a n u a l...

  • Page 3: Break-In Period

    R-55E R-55 R-515 R-515E R-5E BREAK-IN PERIOD Allow several hours of listening time to adequately break-in your Impression Series speakers. As your speakers break in during the first few hours of listening, the driver suspension will loosen. Following this initial break-in period, there will be an increase in low-frequency response, improved definition, and increased clarity and detail.

  • Page 4: Care And Cleaning

    CARE AND CLEANING To maintain your speaker and/or subwoofer appearance, we recommend carefully wiping it with a clean, damp, and soft cloth. To help clean dust from the grille cloth, we recommend using a vacuum with a brush attachment. FEATURES The Impression Series includes the R-55, a sleek tower, the R-515, an LCR/surround channel, and the R-5, an elegantly-matched bookshelf speaker.
  • Page 5 ATTACHING SPEAKER WIRES If using a banana jack, attach the matching positive or negative wire and push directly into the binding post’s top hole. If you’re not using a banana jack, simply loosen the binding nut to allow the hole in the side of the terminal to become exposed.
  • Page 6 ROOM SETUP SUGGESTIONS In order to obtain the best possible sound from your speaker system, it is important to determine where the speakers will sound best in your listening room. Room reflections from the floor, ceiling and side walls influence the balance, imaging and overall sonic quality at the listening position.
  • Page 7 ROOM SETUP SUGGESTIONS (continued) IMPORTANT NOTICE REGARDING BASS MANAGEMENT: It is important the signal being sent to the subwoofer be a non-boosted or “flat” signal. Check the settings on your receiver or processor to make sure any “bass boost”, “super bass” or “loudness” is set to Off. In most cases a home theater receiver or processor will determine the crossover frequency through bass management settings.
  • Page 8 ROOM SETUP SUGGESTIONS (continued) Speaker positioning for Dolby 7.2.4 and Dolby Atmos borrowed from Dolby Laboratories, Inc. Dolby Atmos is a registered trademark of Dolby Laboratories Licensing Corporation. Impression Series Owner’s Manual...
  • Page 9 TOWER SPEAKER OUTRIGGER INSTALLATION Use these attractive outriggers for the Impression Series R-55 tower speakers to create a wider support base for the cabinet. These outriggers make your tower speakers more stable, and are ideal when placing them on a carpeted floor. Package contents include: (A) 1 each back outrigger (B) 1 each front outrigger...
  • Page 10 ADJUSTMENT FEET FOR LCR SPEAKER Two dome adjustment feet and two double-sided tapes have been provided so the R-515LCR speaker can be positioned to aim up, down or to make it level. Simply place the domed adjustment feet anywhere along the side of the speaker facing down until you get the angle desired.

  • Page 11: Specifications

    SPECIFICATIONS Model R-55 R-515 Tower LCR/Surround Bookshelf Frequency Response: 37Hz – 25kH 57Hz – 25kHz 57Hz – 25kHz Sensitivity: 87dB 87dB 85.5dB Recommended Power: 50-250 Watts 25-175 Watts 25-125 Watts Woofer: (3) 6½” (165mm) (2) 5¼” (133mm) (1) 5¼” (133mm) Poly-mica Poly-mica Poly-mica...
  • Page 12 SPECIFICATIONS Model R-55E R-515E R-5E Tower LCR/Surround Bookshelf Frequency Response: 35Hz – 30kH 55Hz – 30kHz 55Hz – 30kHz Sensitivity: 88dB 88dB 86dB Recommended Power: 50-250 Watts 25-175 Watts 25-125 Watts Woofer: (3) 6½” (165mm) (2) 5¼” (133mm) (1) 5¼” (133mm)

  • Page 13: Troubleshooting

    5 years from the original date of purchase. This warranty is provided by the authorized RBH Sound dealer where the speaker was purchased. Warranty repair will be performed only when your purchase receipt is presented as proof of ownership and date of purchase.
  • Page 14 Impression Series Owner’s Manual...
  • Page 16 382 Marshall Way, Suite A, Layton, Utah • USA • 84041 Toll Free: (800) 543-2205 • Fax: (801) 543-3300 http://rbhsound.com It is RBH Sound policy to continuously incorporate improvements into our products; all specifications are subject to change without notice. © Copyright...

This manual is also suitable for:

R-5R-55eR-515eR515R-55
