UM2094
User manual
STEVAL-IDB007V1 evaluation board quick start guide
Introduction
®
The STEVAL-IDB007V1 is an evaluation board based on BlueNRG-1, a low power Bluetooth
Smart
®
System on Chip that is compliant with the Bluetooth
v4.1 specification and supports both master and
slave roles.

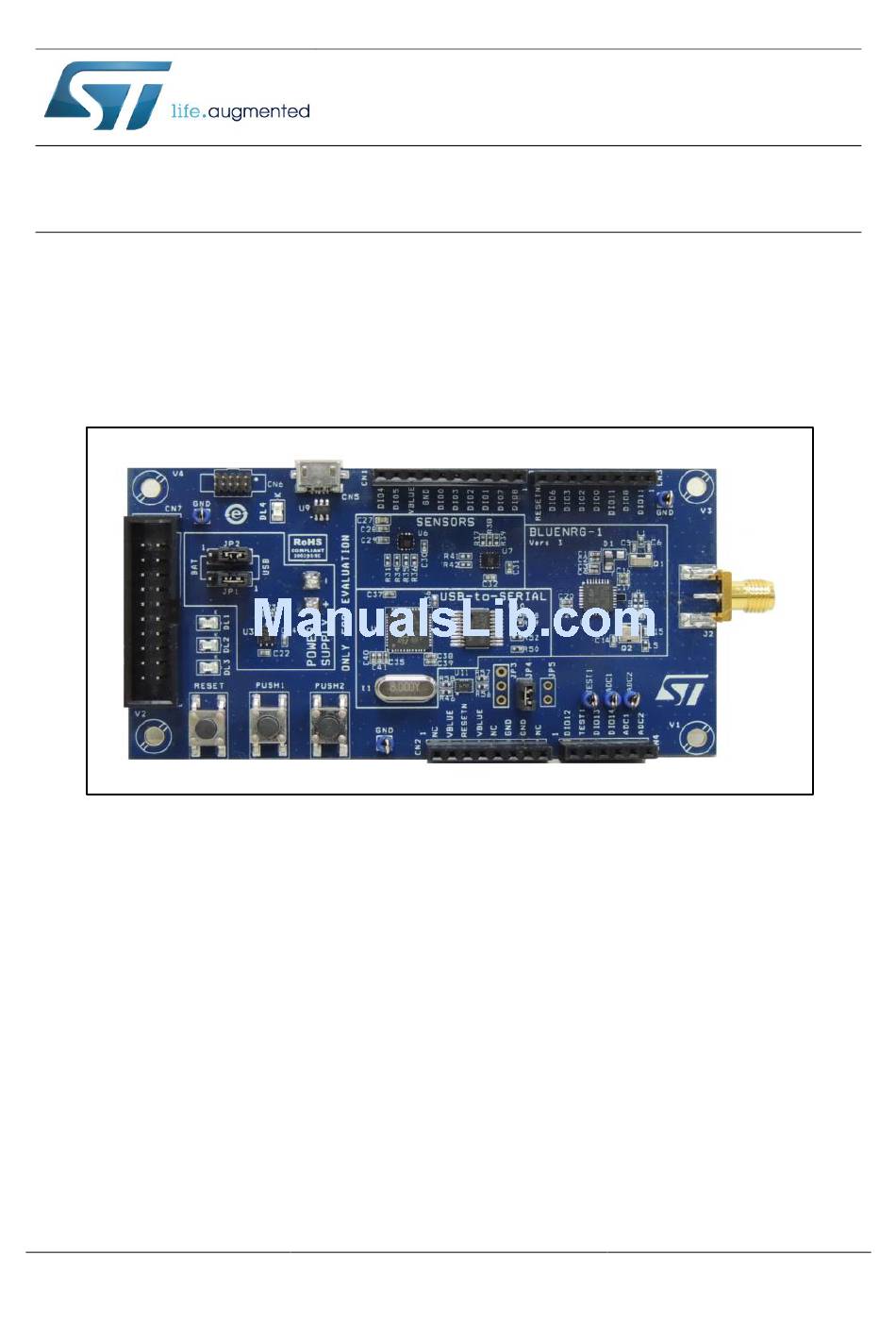

Figure 1: STEVAL-IDB007V1 Bluetooth® low energy evaluation board
July 2016
DocID029565 Rev 1
1/12
www.st.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STEVAL-IDB007V1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ST STEVAL-IDB007V1

Summary of Contents for ST STEVAL-IDB007V1

  • Page 1: Figure 1: Steval-Idb007V1 Bluetooth® Low Energy Evaluation Board

    User manual STEVAL-IDB007V1 evaluation board quick start guide Introduction ® The STEVAL-IDB007V1 is an evaluation board based on BlueNRG-1, a low power Bluetooth Smart ® System on Chip that is compliant with the Bluetooth v4.1 specification and supports both master and slave roles.

  • Page 2: Table Of Contents

    Contents UM2094 Contents Getting started ................. 5 Powering up STEVAL-IDB007V1 evaluation board running the sensor profile firmware (peripheral role) ............5 Install the BlueNRG app for smartphones (central role) ....6 Run BlueNRG app for smartphones ..........6 SW demonstration applications ............. 8 References ..................
  • Page 3 UM2094 List of tables List of tables Table 1: Reference information ........................9 Table 2: List of acronyms used in the document ..................10 Table 3: Document revision history ......................11 DocID029565 Rev 1 3/12...
  • Page 4 List of figures UM2094 List of figures Figure 1: STEVAL-IDB007V1 Bluetooth® low energy evaluation board ............ 1 Figure 2: STEVAL-IDB007V1 power options ....................6 Figure 3: Smartphone BlueNRG SensorApp acceleration notification ............7 Figure 4: Smartphone BlueNRG SensorApp RSSI notifications ..............7...

  • Page 5: Getting Started

     Free fall characteristic: it allows detection of free-fall condition by the LSM6DS3 MEMS sensor on the STEVAL-IDB007V1 board (the condition is detected if the acceleration on the 3 axes is near zero for a certain amount of time). The environmental service contains characteristics that expose data from some environmental sensors, such as temperature sensors.

  • Page 6: Install The Bluenrg App For Smartphones (Central Role)

    (this is the STEVAL-IDB007V1 running the sensor profile firmware)  Tap on the BlueNRG name to connect to the STEVAL-IDB007V1 running the sensor profile firmware. The BlueNRG SensorApp application enables notifications on the acceleration characteristic and displays the received value on the screen.

  • Page 7: Figure 3: Smartphone Bluenrg Sensorapp Acceleration Notification

    UM2094 Getting started Figure 3: Smartphone BlueNRG SensorApp acceleration notification  Data from environmental sensors are also periodically read and displayed. Figure 4: Smartphone BlueNRG SensorApp RSSI notifications DocID029565 Rev 1 7/12...

  • Page 8: Sw Demonstration Applications

    UM2094 SW demonstration applications  In order to develop a software application for the STEVAL-IDB007V1 evaluation board, it is recommended to start with the reference demonstration applications provided within the BlueNRG-1 DK software package (STSW-BLUENRG1-DK) available on the STEVAL-IDB007V1 web page.

  • Page 9: References

    Sensor App ls?id=com.st.blunrg Sensor App web page Smartphone IoS Sensor https://itunes.apple.com/us/app/bluenrg/ IoS BlueNRG Sensor App id705873549?l=it&ls=1&mt=8 web page BlueNRG-1 DK SW STEVAL-IDB007V1 web page, Tools package with reference STSW-BLUENRG1-DK and Software section demonstration applications www.st.com/bluenrg-1, Evaluation STEVAL-IDB007V1 STEVAL-IDB007V1 Tools section...

  • Page 10: List Of Acronyms

    List of acronyms UM2094 List of acronyms Table 2: List of acronyms used in the document Term Meaning Bluetooth Low Energy Development kit Software Universal serial bus 10/12 DocID029565 Rev 1...

  • Page 11: Revision History

    UM2094 Revision history Revision history Table 3: Document revision history Date Revision Changes 14-Jul-2016 Initial release. DocID029565 Rev 1 11/12...
