6.4.4 SURFACE INSTALLATION FOR FIXED
ANGLE

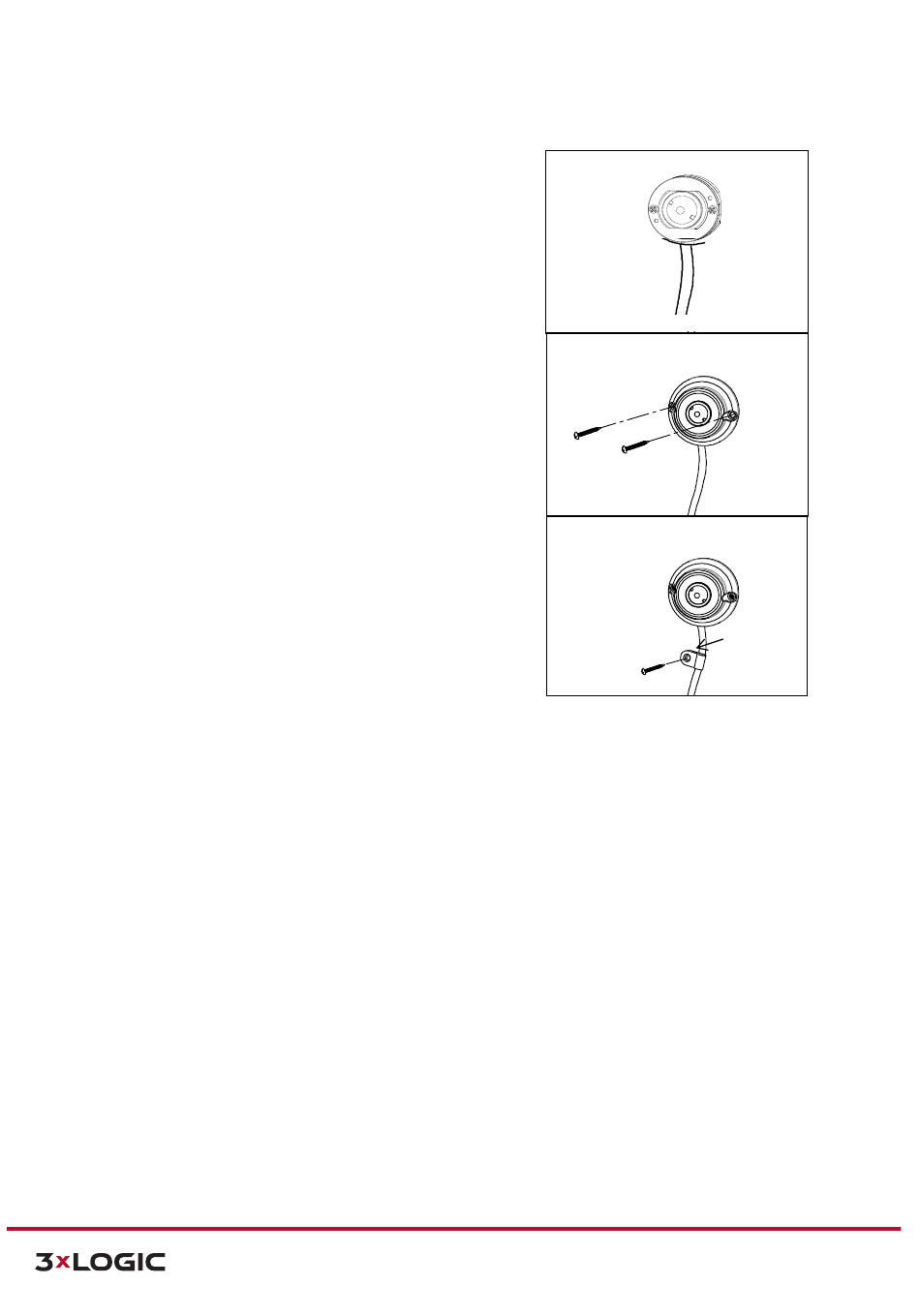

Steps:
1).
Place the camera on a desired installation surface.
2).
Cover the camera with the surface mount
bracket by routing the camera's cable into the
cable holder on the bracket. Then, fasten the
bracket using the tapping screws (M3x20) and
anchor blocks appropriate for the material of the
installation surface.
3).
Use the cable clamp optionally if you want to fix
the camera's cable to a desired spot with a
tapping screw (M4x20).
