Eaton 200 A 15 kV class Installation Instructions Manual
Elbow, deadbreak apparatus connectors
Hide thumbs
Also See for 200 A 15 kV class:
- Installation instructions manual (12 pages) ,
- Installation instructions (2 pages)
Related Manuals for Eaton 200 A 15 kV class
Summary of Contents for Eaton 200 A 15 kV class

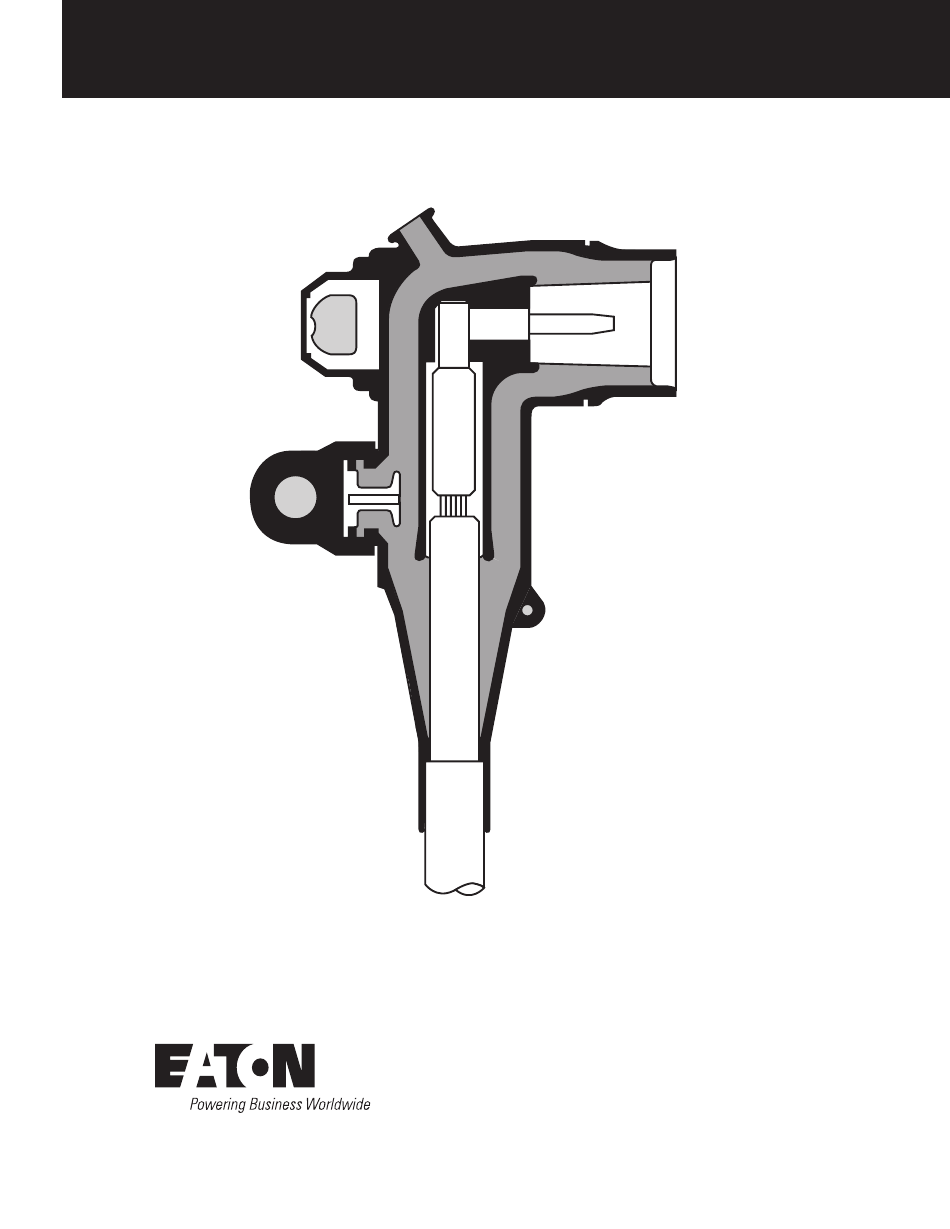

- Page 1 COOPER POWER Deadbreak Apparatus Connectors SERIES Effective February 2017 MN650042EN Supersedes December 2009 (S550-10-1) 200 A 15/25 kV class elbow installation instructions...
- Page 2 CONTENTS OF THIS DOCUMENT SHALL NOT BECOME PART OF OR MODIFY ANY CONTRACT BETWEEN THE PARTIES. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or other-wise for any special, indirect, incidental or consequential damage or loss whatsoever, including but not limited to...
-
Page 3: Table Of Contents
Contents DISCLAIMER OF WARRANTIES AND LIMITATION OF LIABILITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I SAFETY FOR LIFE . -
Page 4: Safety For Life
FOR LIFE FOR LIFE Eaton’s Cooper Power series products meet or exceed all applicable industry standards relating to product safety. We actively promote safe practices in the use and maintenance of our products through our service literature, instructional training programs, and the continuous efforts of all Eaton employees involved in product design, manufacture, marketing and service. -
Page 5: Product Information
All associated apparatus must be de-energized during installation, operation and/or maintenance . Product information Introduction The Eaton Cooper Power series Deadbreak Elbow Connector is a fully-shielded and insulated plug-in termination for connecting underground cable to transformers, switching cabinets and junctions equipped with deadbreak bushings. -
Page 6: Installation Instructions
200 A 15/25 kV class elbow installation instructions Step 1 Step 2 Step 3 Step 4 Wire 16 " Conductor brush (49.2 mm) conductor " Bevel Insulation Insulation shield " (145 mm) " (216 mm) Bend Jacket neutral seal wires down and out of the way Tools/Accessories needed:... -
Page 7: Preparation Of Concentric Neutral Cable
Unwind neutral wires. If not already in place, apply a suitable jacket seal over the otee: If an Eaton Cooper Power series jacket seal is used, jacket and exposed neutral wires. follow instructions supplied with the jacket seal kit. Proceed to Step 5. -
Page 8: Elbow And Probe Contact Installation
200 A 15/25 kV class elbow installation instructions Elbow and probe contact installation Clean and lubricate the cable entrance of the elbow. Place elbow on cable. With a twisting motion, push elbow Step 5 onto cable until threaded eye of coppertop connector is visible in the elbow interface. - Page 9 200 A 15/25 kV class elbow installation instructions Stainless steel bail Figure 2 . De225 deadbreak elbow connector dimensional information WARNING This is a Deadbreak Connector System . All associated apparatus must be de-energized before and during installation and/or operation . InstallatIon InstructIons MN650042EN February 2017...
- Page 10 200 A 15/25 kV class elbow installation instructions This page intentionally left blank. InstallatIon InstructIons MN650042EN February 2017...
- Page 11 200 A 15/25 kV class elbow installation instructions This page intentionally left blank. InstallatIon InstructIons MN650042EN February 2017...
- Page 12 United States Eaton.com/cooperpowerseries © 2017 Eaton All Rights Reserved Printed in USA Eaton is a registered trademark. For Eaton’s Cooper Power series product Publication No. MN650042EN information (Replaces S550-10-1 Rev 00) call 1-877-277-4636 or visit: All trademarks are property www.eaton.com/cooperpowerseries.
