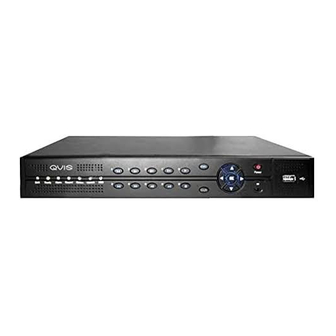

Qvis Quattro Quick Setup Manual

NVR
NVR
NVR
VIEWING LIVE FOOTAGE
To view the live footage from the cameras connected to the NVR
and customise the multi-tiled live view interface please follow the
steps below:
1.
When the NVR has fully booted/powered up (complete startup
wizard if using the NVR for the first time), login with these
details:
User Name: admin
No password is required at this
point. To create one go to 'Main
Menu' -> 'System' -> 'Accounts'
2.
To customise the live view interface
right click mouse button anywhere on
the interface, the option list appears (as
shown to the right). Select any of the
preferred views (highlighted by the red
box). Choose which camera channel you
want to view in the view tiles.
3. When the live view interface is
customised, you will see the selected
live camera feeds. Double click on one of
the panels to view it in full screen mode.
Double click again to return to multi-tile
mode.
Analogue Camera Connection
NVR
(See 'Main User's Guide' for instructions
on how to setup IP cameras with the NVR)
NVR
NVR
Double click left mouse
button on one of the
tiles to go full screen.
Setup is now complete.
It is very important you
change the password
on your device to
ensure optimum
security.
PLAYING BACK RECORDED FOOTAGE
To play back the footage from your cameras that has been recorded
to the NVR's HDD, please follow these steps below:
1.
When on the multi-tiled live view screen,
right click mouse button, the option list
appears (as shown to the right). Select
the option 'Playback' (highlighted by the
red box).
You can also access Playback interface
via the 'Main Menu' option and clicking
on the item:
2.
The Playback interface will appear. To view footage from
a specific date and time please follow the numbered steps
below:
4. To synchronise
channels selected to
play simultaneously
click button here
You will now be
able to play and
view footage.
Video playback
3. Select on timeline
controls also
what time you which
provided above
to view footage from
that date.
NVR
1. Choose
the date
here.
2. Choose
channels
here
timeline.
