Qvis KIT005-SFX Quick Setup Manual

BEFORE INSTALLING ANYTHING WE
STRONGLY RECOMMEND THAT YOU
CONNECT YOUR CAMERAS TO YOUR DVR
AND TEST YOUR SYSTEM FIRST.
WE CHECK EVERYTHING TO MAKE SURE IT
IS WORKING WHEN IT LEAVES US BUT
OCCASIONALLY THINGS FAIL AND IT IS
BETTER TO KNOW NOW THAN AFTER YOU
HAVE FITTED EVERYTHING!
1.

Connecting your cameras.

Your Cameras have 2 plugs
attached, one is a BNC connector
(for the video) the other is for
power. Connect these plugs into
the sockets on the end of one of
the cables included in the kit.
2.

Connecting cameras to your DVR.

At the other end of the cable there
are two plugs, these connect your
camera to the DVR and also to the
power supply.
You will also need to connect yout
DVR to a TV or monitor. You can
connect your system to a HD TV using
a HDMI cable, you can also use the
RCA (Video Out) socket or the VGA
socket on the back of the DVR.
.
3.

Switch on

Once you have connected all the
cables successfully connect the
DVR & Camera power leads to a
power outlet. Switch on your TV
and select the HDMI socket you
have DVR connected to.
ENGLISH
Model No. CAM005
1/3" Sony Exmor Digital Sensor IMX138
Image Sensor
PAL/NTSC
Signal System
1280 x 1024 (1.3Mp)
Effective Pixels
3.6mm Fixed Lens
Lens
1000 TV Line
Horizontal Resolution
>50 dB ( AGC off )
S/N Ratio
0 Lux (IR ON - IR-cut technology)
Min Illumination
PAL:1/50 - 1/100,000 sec, NTSC:1/60 -
Auto Electronic Shutter
1/100,000 sec
AUTO
White Balance
AUTO
3D-NR
Built-in
Auto Gain Control
CVBS/1.0Vp-p/75Ω
Video output
γ = 0.45
Gamma Correction
DC12V±10%
Power Supply
100mA(IR OFF) , 260mA(IR ON)
Current Consumption
24 pcs
IR LED
IR Distance in Effect 15-25M
IP Rating IP66
Storage Temperature -30C ~+80C
-30C ~+75C
Operating Temperature
168(L)x65(W)x62(H)mm
Dimension
420g
Weight
WARNING: This camera requires professional installation
For further assistance in setting up your system please visit: www.qvishome.co.uk

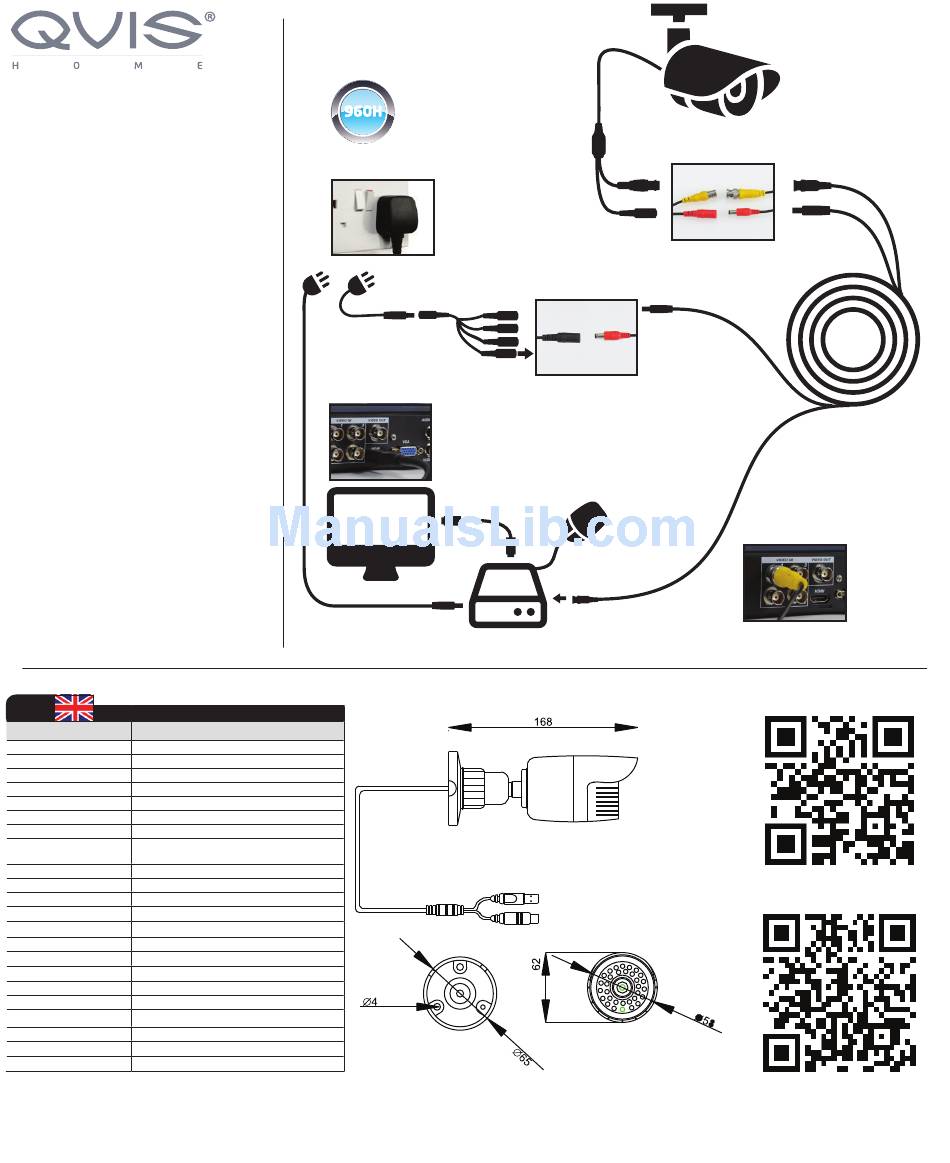

QUICK SET UP
GUIDE
KIT005-SFX
KIT006-SFX
CAM005
Power Adaptor
3.
4-Way Split Cable
Output to TV
or Monitor
You can connect your system to
a HD TV using a HDMI Cable, you
can also connect them together
using an RCA lead, or to a
monitor using a VGA lead.
DVR Power
Further, more detailed instructions on how to operate your DVR are included in the main manual which is on the set up disc included.
We refrain from printing these large manuals in an effort to limit our impact on the environment.
Power Connector
BNC Connector
Power
Connecto r
This connects
your camera to
the power supply
2.
Connect the
mouse to the
USB socket
Camera
1.
(We recommend you
keep your cables
coiled whilst you test
your system)
BNC Connecto r
to DVR
This connects
your camera to
the DVR
WEBSITE LINK
YOUTUBE LINK
