Product Overview

The Vector is a high-performance, low-cost single board computer based on the Intel
Z5xxP/PT processor. It uses an integrated two-chip solution comprised of the Intel Atom processor
®
and Intel System Controller Hub US15WP/PT (Intel
the new low-power Intel micro architecture, while the Intel SCH US15W contains an integrated 2D/3D
graphics controller supporting hardware-accelerated graphics display and video processing
capabilities. The Vector conforms to the EPIC form factor and implements several industry-standard
interfaces supporting a broad spectrum of end-use applications. With the Vector, embedded users can
gain higher performance at a lower cost.
The Vector is available with Windows
operating systems. Support is also available for the Java Virtual Machine and Eurotech's Everyware
Software Framework, which offers an easy-to-use, Java-based development environment that
minimizes time to market and allows for easy portability for future expansion.

Block Diagram

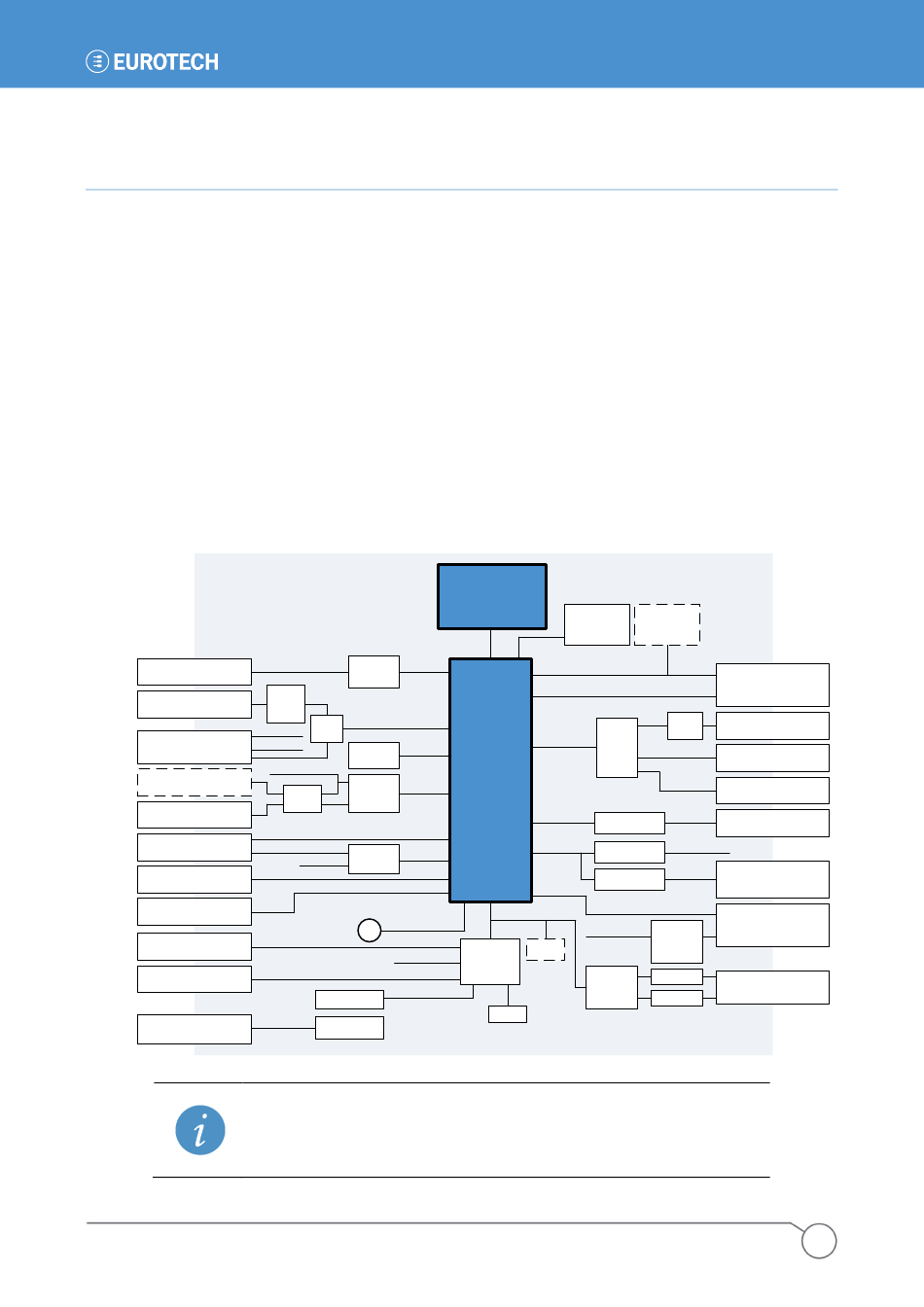

The following diagram illustrates the system organization of the Vector. Dotted lines indicate volume
production options. For additional information, contact your Eurotech local sales representative.
Vector
Gigabit Ethernet Port
SATA Drive Socket
SMBus
USB Hub2
Mini PCIe Slot
EIA 232/485
Serial Port (optional)
EIA 232/485
Serial Port
USB5
2 x USB2.0 Host Ports
USB1
(high current)
USB3 & USB4
2 x USB2.0 Host Ports
USB Client USB2
(optional internal host)
2 x A/D Inputs
2
I C Bus
Power Input
Notes:
Figure 1 represents the full feature set of the Vector as provided by the Vector Development
Kit (VEC7000). Scaled-down feature configurations are available offering lower cost
solutions for your specific application. For additional information about the various
configurations of the Vector, contact your local Eurotech sales representative.
