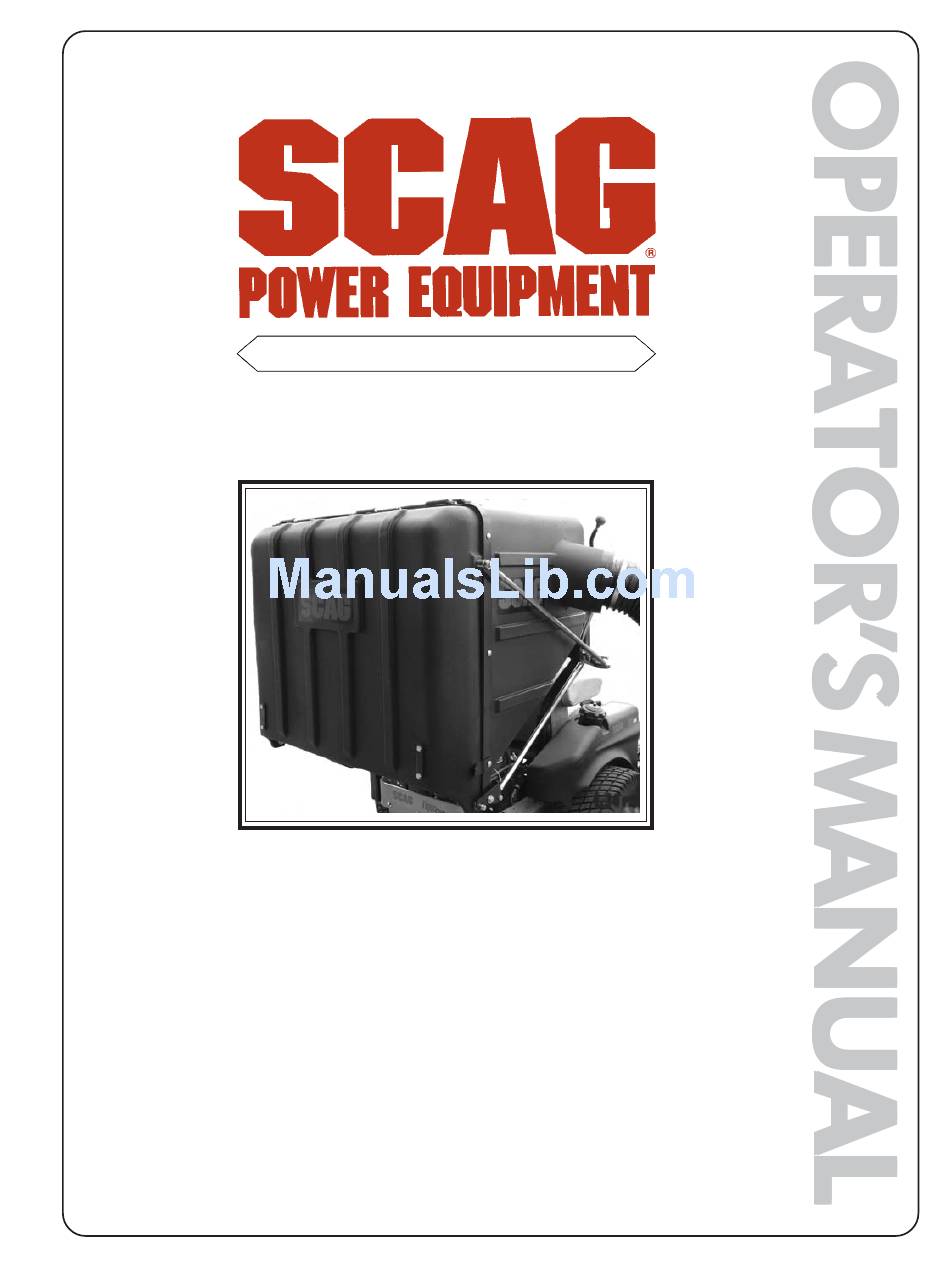

MODEL GC-STT-CSV
THIS MANUAL CONTAINS THE OPERATING
INSTRUCTIONS AND SAFETY INFORMA-
TION FOR YOUR SCAG ACCESSORY. READ-
ING THIS MANUAL WILL PROVIDE YOU
WITH MAINTENANCE AND ADJUSTMENT
PROCEDURES TO KEEP YOUR ACCESSORY
PERFORMING TO MAXIMUM EFFICIENCY.
THE SPECIFIC MODELS THAT THIS BOOK
COVERS ARE CONTAINED ON THE INSIDE
COVER. BEFORE OPERATING YOUR MA-
CHINE, PLEASE READ ALL THE INFORMA-
TION ENCLOSED.
PART NUMBER 03187

Advertisement

loading
Need help?

Need help?

Do you have a question about the GC-STT-CSV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Scag Power Equipment GC-STT-CSV

  • Page 1 MODEL GC-STT-CSV THIS MANUAL CONTAINS THE OPERATING INSTRUCTIONS AND SAFETY INFORMA- TION FOR YOUR SCAG ACCESSORY. READ- ING THIS MANUAL WILL PROVIDE YOU WITH MAINTENANCE AND ADJUSTMENT PROCEDURES TO KEEP YOUR ACCESSORY PERFORMING TO MAXIMUM EFFICIENCY. THE SPECIFIC MODELS THAT THIS BOOK COVERS ARE CONTAINED ON THE INSIDE COVER.
  • Page 2 FAILURE TO FOLLOW SAFE OPERATING PRACTICES MAY RESULT IN SERIOUS INJURY. * Keep all safety shields in place. * Before performing any maintenance or service, stop the machine and remove the spark plug wire. * If a mechanism becomes clogged, stop the engine and wait for all moving parts to come to a complete halt before cleaning.
  • Page 3 A replacement manual is available from your authorized Scag Service Dealer or by contacting: Scag Power Equipment, Service Department at P.O. Box 152, Mayville, WI 53050. You may also contact us through our website at www.scag.com The...
  • Page 4 3. When dumping the hopper into a disposal area: WARNING WARNING DO NOT DUMP CLIPPINGS IN A DISPOSAL AREA THAT IS BURNING Disengage the deck drive, apply the parking brake and allow all moving parts to come to a complete stop. Pull downward on the hopper door handle to allow the hopper sweeper to remove the material from inside the hopper.
  • Page 5 3.1 ASSEMBLY INSTRUCTIONS -NOTE- Use the illustrated parts list as a part number reference when following the assembly instructions. 1. Remove all packaging materials. Lay out the mounting hardware and the catcher assembly parts for easy access. Prepare the work area making sure that it is a clean, safe environment.
  • Page 6 REAR OF CUTTER DECK VIEW FROM RIGHT SIDE OF CUTTER DECK 61" & 72" Cutter Decks REAR OF CUTTER DECK VIEW FROM RIGHT SIDE 52" Cutter Deck BOLT, 3/8-16 x 1-1/4" DISCHARGE CHUTE OPENING P R O P E R L Y S E R V I C E E N G I N E W I T H...
  • Page 7 8. Install the blower assembly to the mounting bracket and secure with the mounting pin and hair pin. See Figure 3-4. 9. Align the blower assembly with the discharge opening of the cutter deck. Tighten the hardware for the mounting bracket. Install the quick pin through the rear hole in the discharge chute mounting bracket.
  • Page 8 13. Install the hopper mounting brackets (p/n 451512 & p/n 451595) to the outside of the frame on the rear of the machine using 3/8-16 x 1" hex head bolts (p/n 04001-19) and 3/8-16 elastic stop nuts (p/n 04021-09). See Figure 3-7, Page 7. 14.
  • Page 9 Item # Part # 04001-19 04021-09 04066-03 423670 451512 451595 Liquid Cooled Only Description Bolt, Hex Head 3/8-16 x 1" Nut, Elastic Stop 3/8-16 Quick Pin Spacer, Hitch Hitch Bracket Weldment Hitch Bracket Weldment, Floating Hopper Assembly Illustration is for reference only. Some parts have been Frame removed for visual purposes and may vary depending FIGURE 3-7...
  • Page 10 6.1 GRASS CATCHER REMOVAL INSTRUCTIONS 1. Prepare the work area making sure that it is a clean, safe environment. 2. Remove the rubber strap holding the adapter to the blower assembly. See Figure 5-1. 3. Remove the belt from the spindle pulley and the quick pin securing the blower to the discharge mounting bracket.
  • Page 11: Maintenance Chart - Recommended Service Intervals

    5.1 MAINTENANCE CHART - RECOMMENDED SERVICE INTERVALS HOURS Break-In 8 20 40 100 200 500 (First 10) * Perform these maintenance procedures more frequently under extreme dusty or dirty conditions. GREASE FITTING ON BEARING HOUSING MAINTENANCE Procedure Check all hardware for tightness Inspect hose and adapter Check belt for proper alignment Inspect fabric bags...
  • Page 12 GC-STT-V BLOWER HOUSING ASSEMBLY 2005 GC V+ Blower Assembly...
  • Page 13 GC-STT-V BLOWER HOUSING ASSEMBLY Ref. Part Number Description 04067-07 Pin, Ring 2-1/4" Long 481547 Lanyard, Deck Height Pin 04019-02 Nut, Serr. Flange 1/4-20 04001-59 Bolt, Hex Head 1/4-20 x 1-1/4" 481377 Decal, Blower 482080 Decal, Rotating Blower 481428 Grip, Blower Lever 483223 Cap, Square 04024-02...
  • Page 14 GC-STT-V BLOWER MOUNTING COMPONENTS UNDER SIDE OF VELOCITY-PLUS CUTTER DECK SHOWN RIGHT SIDE OF CUTTER DECK SHOWN 2006 GC-STC-V BMC...
  • Page 15 GC-STT-V BLOWER MOUNTING COMPONENTS Ref. Part Number Description 483225 Belt Cover, GC-STT - 52" 483227 Belt Cover, GC-STT - 61" 04029-04 Wingnut, Plastic 3/8" Small 483223 Cap, Square Vinyl 04021-08 Nut, Elastic Stop 1/4-20 461723 Adapter, Blower GC-STT, includes item #7 04040-14 Flatwasher, 1/4-.312 x .750 x .065 48137-04...
  • Page 16 GC-STT-CSV HOPPER COMPONENTS 25 36 2006 GC-STT-CSV Hopper...
  • Page 17 GC-STT-CSV HOPPER COMPONENTS Ref. Part Number Description 483038 Hopper, GC-STT-CS 482732 Door, GC-CS 461626 Sweeper Weldment, GC-CS 482777 Pad, Rubber 04090-02 Pop Rivet, 3/16 x .652 423834 Plate, Stiffener 423938 Support Frame, Hopper 423849 Hinge Bracket, L.H. 423850 Hinge Bracket, R.H.
  • Page 18 GC-STT-CSV DECALS 481039 482275 483044 481327 481377 483037 482080...
  • Page 19 This warranty does not cover engines and electric starters, which are warranted separately by their manufacturer. Scag Power Equipment reserves the right to change or improve the design of any accessory without assuming any obligation to modify any accessory previously manufactured.
  • Page 20 © 2005 PART NO. 03187 SCAG POWER EQUIPMENT PRINTED 7-2005 DIVISION OF METALCRAFT OF MAYVILLE, INC PRINTED IN USA www.scag.com...
