Scag Power Equipment GC-STT-CS Operator's Manual

Scag Power Equipment GC-STT-CS Operator's Manual

Scag power equipment operator's manual
Hide thumbs

Advertisement

Quick Links

Download this manual

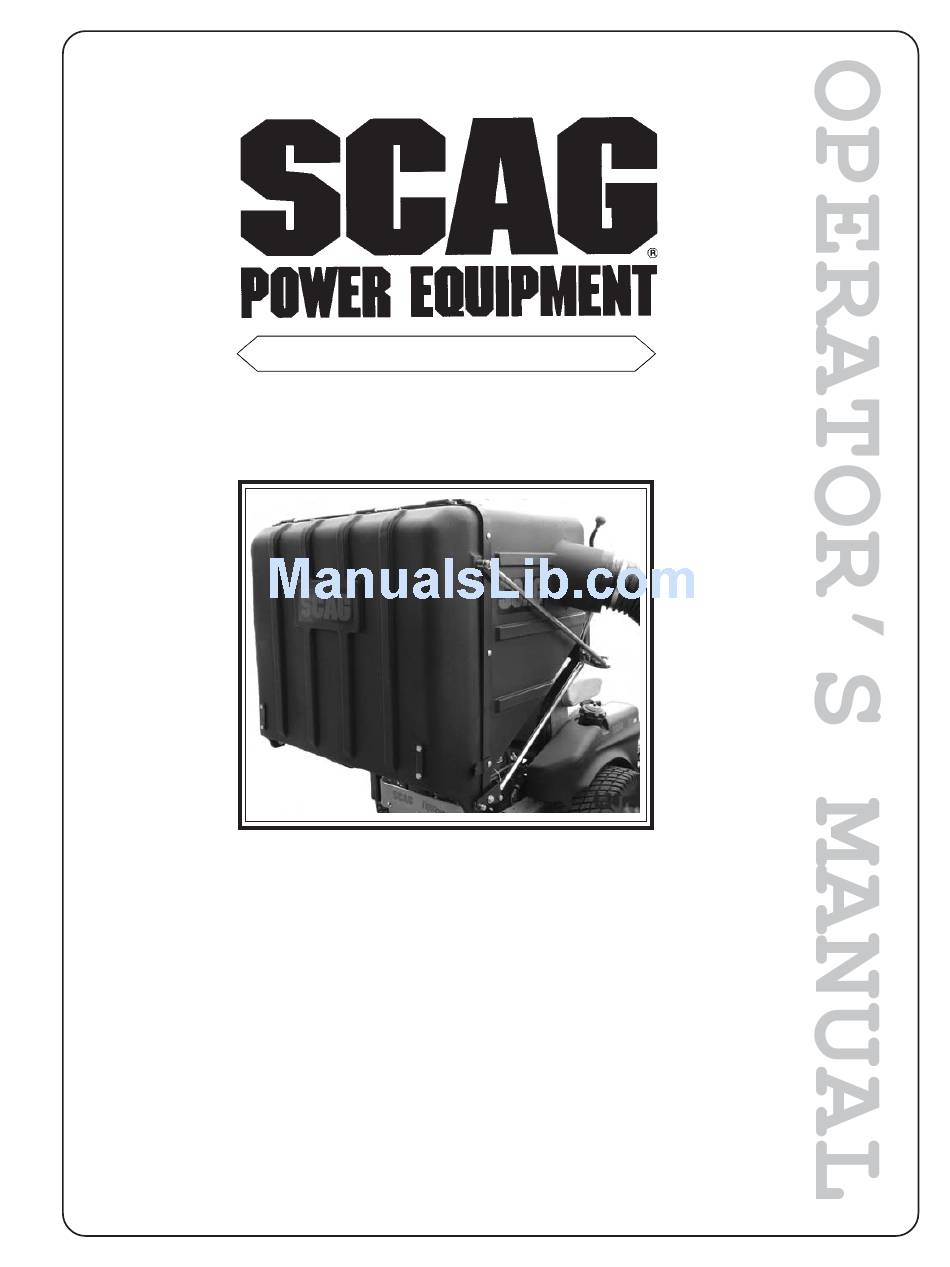

MODEL GC-STT-CS
THIS MANUAL CONTAINS THE OPERATING
INSTRUCTIONS AND SAFETY INFORMA-
TION FOR YOUR SCAG ACCESSORY. READ-
ING THIS MANUAL WILL PROVIDE YOU
WITH MAINTENANCE AND ADJUSTMENT
PROCEDURES TO KEEP YOUR ACCESSORY
PERFORMING TO MAXIMUM EFFICIENCY.
THE SPECIFIC MODELS THAT THIS BOOK
COVERS ARE CONTAINED ON THE INSIDE
COVER. BEFORE OPERATING YOUR MA-
CHINE, PLEASE READ ALL THE INFORMA-
TION ENCLOSED.
PART NUMBER 03140

Advertisement

loading
Need help?

Need help?

Do you have a question about the GC-STT-CS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Scag Power Equipment GC-STT-CS

Summary of Contents for Scag Power Equipment GC-STT-CS

  • Page 1 MODEL GC-STT-CS THIS MANUAL CONTAINS THE OPERATING INSTRUCTIONS AND SAFETY INFORMA- TION FOR YOUR SCAG ACCESSORY. READ- ING THIS MANUAL WILL PROVIDE YOU WITH MAINTENANCE AND ADJUSTMENT PROCEDURES TO KEEP YOUR ACCESSORY PERFORMING TO MAXIMUM EFFICIENCY. THE SPECIFIC MODELS THAT THIS BOOK COVERS ARE CONTAINED ON THE INSIDE COVER.
  • Page 2 FAILURE TO FOLLOW SAFE OPERATING PRACTICES MAY RESULT IN SERIOUS INJURY. * Keep all safety shields in place. * Before performing any maintenance or service, stop the machine and remove the spark plug wire. * If a mechanism becomes clogged, stop the engine and wait for all moving parts to come to a complete halt before cleaning.

  • Page 3: Direction Reference

    A replacement manual is available from your authorized Scag Service Dealer or by contacting: Scag Power Equipment, Service Department at P.O. Box 152, Mayville, WI 53050. You may also contact us through our website at www.scag.com. Please indicate the complete model number of your Scag product when ordering a replacement manual.
  • Page 4 3. When dumping the hopper into a disposal area: WARNING WARNING DO NOT DUMP CLIPPINGS IN A DISPOSAL AREA THAT IS BURNING Disengage the deck drive, apply the parking brake and allow all moving parts to come to a complete stop. Pull downward on the hopper door handle to allow the hopper sweeper to remove the material from inside the hopper.
  • Page 5 3.1 ASSEMBLY INSTRUCTIONS FOR 52" CUTTER DECKS -NOTE- Use the illustrated parts list as a part number reference when following the assembly instructions. 1. Remove all packaging materials. Lay out the mounting hardware and the catcher assembly parts for easy access. Prepare the work area making sure that it is a clean, safe environment.
  • Page 6 REAR OF CUTTER DECK VIEW FROM RIGHT SIDE OF CUTTER DECK ELASTIC STOP NUTS LOCK WASHERS CATCH PLATE CARRIAGE BOLTS HEX HEAD BOLT GC-STT install art 3 BOLT, 3/8-16 x 1-1/4" DISCHARGE CHUTE OPENING FIGURE 3-3 BLOWER ASSEMBLY HAIR MOUNTING P R O P E R L Y S E R V I C E E N G I N E...
  • Page 7 6. Install the blower mounting bracket to the deck using 1/2-13 x 1-1/2" hex head bolts (p/n 04001- 71), 1/2" spring lockwashers (p/n 04030-06), and 1/2-13 elastic stop nuts (p/n 04021-07). See Figure 3-3, Page 3. Do not fully tighten the hardware at this time.
  • Page 8 18. Install the weight support bar to the front of the machine by resting it directly on top of the caster support arms and sliding it tight against the frame of the machine. Secure the weight bar to the machine using (2) bar clamps, (4) 3/8-16 x 1-1/2" bolts and (4) 3/8-16 elastic stop nuts.

  • Page 9: Cutter Decks

    4.1 ASSEMBLY INSTRUCTIONS FOR 61" CUTTER DECKS -NOTE- Use the illustrated parts list as a part number reference when following the assembly instructions. 1. Remove all packaging materials. Lay out the mounting hardware and the catcher assembly parts for easy access. Prepare the work area making sure that it is a clean, safe environment.
  • Page 10 REAR OF CUTTER DECK VIEW FROM RIGHT SIDE ELASTIC STOP NUTS LOCK WASHERS CATCH PLATE CARRIAGE BOLTS HEX HEAD BOLTS GC-STT install art 3 DISCHARGE CHUTE OPENING OF CUTTER DECK FIGURE 4-3 BLOWER ASSEMBLY HAIR MOUNTING POST P R O P E R L Y S E R V I C E E N G I N E W I T H...
  • Page 11 6. Install the blower mounting bracket to the deck using 1/2-13 x 1-1/2" hex head bolts (p/n 04001- 71), 1/2" spring lockwashers (p/n 04030-06), and 1/2-13 elastic stop nuts (p/n 04021-07). See Figure 4-3, Page 8. Do not fully tighten the hardware at this time.
  • Page 12 16. Install the weight support bar to the front of the machine by resting it directly on top of the caster support arms and sliding it tight against the frame of the machine. Secure the weight bar to the machine using (2) bar clamps, (4) 3/8-16 x 1-1/2" bolts and (4) 3/8-16 elastic stop nuts.
  • Page 13 5.1 ASSEMBLY INSTRUCTIONS FOR 72" CUTTER DECKS -NOTE- Use the illustrated parts list as a part number reference when following the assembly instructions. 1. Remove all packaging materials. Lay out the mounting hardware and the catcher assembly parts for easy access. Prepare the work area making sure that it is a clean, safe environment.
  • Page 14 ELASTIC STOP NUTS LOCK WASHERS CATCH PLATE CARRIAGE BOLTS HEX HEAD BOLTS GC-STT install art 3 BLOWER ASSEMBLY HAIR MOUNTING POST RIGHT SIDE OF CUTTER DECK SHOWN (Note: Some parts not shown for viewing purposes.) FIGURE 5-3 P R O P E R L Y S E R V I C E E N G I N E W I T H...
  • Page 15 6. Install the blower mounting bracket to the deck using 1/2-13 x 1-1/2" hex head bolts (p/n 04001- 71), 1/2" spring lockwashers (p/n 04030-06), and 1/2-13 elastic stop nuts (p/n 04021-07). See Figure 5-3, Page 12. Do not fully tighten the hardware at this time.
  • Page 16 17. Install the weight support bar to the front of the machine by resting it directly on top of the caster support arms and sliding it tight against the frame of the machine. Secure the weight bar to the machine using (2) bar clamps, (4) 3/8-16 x 1-1/2" bolts and (4) 3/8-16 elastic stop nuts.
  • Page 17 Item # Part # 04001-19 04021-09 04066-03 423670 451512 451595 Liquid Cooled Only Description Bolt, Hex Head 3/8-16 x 1" Nut, Elastic Stop 3/8-16 Quick Pin Spacer, Hitch Hitch Bracket Weldment Hitch Bracket Weldment, Floating Hopper Assembly Illustration is for reference only. Some parts have been Frame removed for visual purposes and may vary depending FIGURE 5-6...
  • Page 18 6.1 GRASS CATCHER REMOVAL INSTRUCTIONS 1. Prepare the work area making sure that it is a clean, safe environment. 2. Remove the rubber strap holding the adapter to the blower assembly. See Figure 5-1. 3. Remove the belt from the spindle pulley. 4.
  • Page 19 Notes...
  • Page 20 GC-STT BLOWER HOUSING ASSEMBLY 390STT0200A...
  • Page 21 GC-STT BLOWER HOUSING ASSEMBLY Ref. Part Number Description 04067-07 Pin, Ring 2-1/4" Long 481547 Lanyard, Deck Height Pin 04019-02 Nut, Serr. Flange 1/4-20 04001-59 Bolt, Hex Head 1/4-20 x 1-1/4" 04001-01 Bolt, Hex Head 1/4-20 x 3/4" 423298 Belt Cover, Rear 481428 Grip, Blower Lever 482300...
  • Page 22 GC-STT BLOWER MOUNTING COMPONENTS UNDER SIDE OF CUTTER DECK SHOWN RIGHT SIDE OF 61" CUTTER DECK SHOWN Note: Parts for 52"cutter deck may vary slightly from illustration. Some parts not shown for viewing purposes. 390STT0203...
  • Page 23 GC-STT BLOWER MOUNTING COMPONENTS Ref. Part Number Description 482406 Belt Cover, GC-STT - 52" 482378 Belt Cover, GC-STT - 61" & 72" 04029-04 Wingnut, Plastic 3/8 Small 482300 Cap, Square Vinyl 04021-08 Nut, Elastic Stop 1/4-20 461419 Adapter, Blower GC-STT 04040-14 Flatwasher, 1/4-.312 x .750 x .065 48137-04...
  • Page 24 GC-STT-CS HOPPER COMPONENTS 25 36 CSHOPPEREXPLODE2-STT...
  • Page 25 GC-STT-CS HOPPER COMPONENTS Ref. Part Number Description 461627 Hopper, GC-STT-CS 482732 Door, GC-CS 461626 Sweeper Weldment, GC-CS 482777 Pad, Rubber 04090-02 Pop Rivet, 3/16 x .652 423834 Plate, Stiffener 423831 Support Frame, Hopper 423849 Hinge Bracket, L.H. 423850 Hinge Bracket, R.H.
  • Page 26 GC-STT DECALS 481039 482275 482733 482293...
  • Page 27 This warranty does not cover engines and electric starters, which are warranted separately by their manufacturer. Scag Power Equipment reserves the right to change or improve the design of any accessory without assuming any obligation to modify any accessory previously manufactured.
  • Page 28 © 2003 PART NO. 03140 SCAG POWER EQUIPMENT PRINTED 8-2003 DIVISION OF METALCRAFT OF MAYVILLE, INC PRINTED IN USA www.scag.com...
