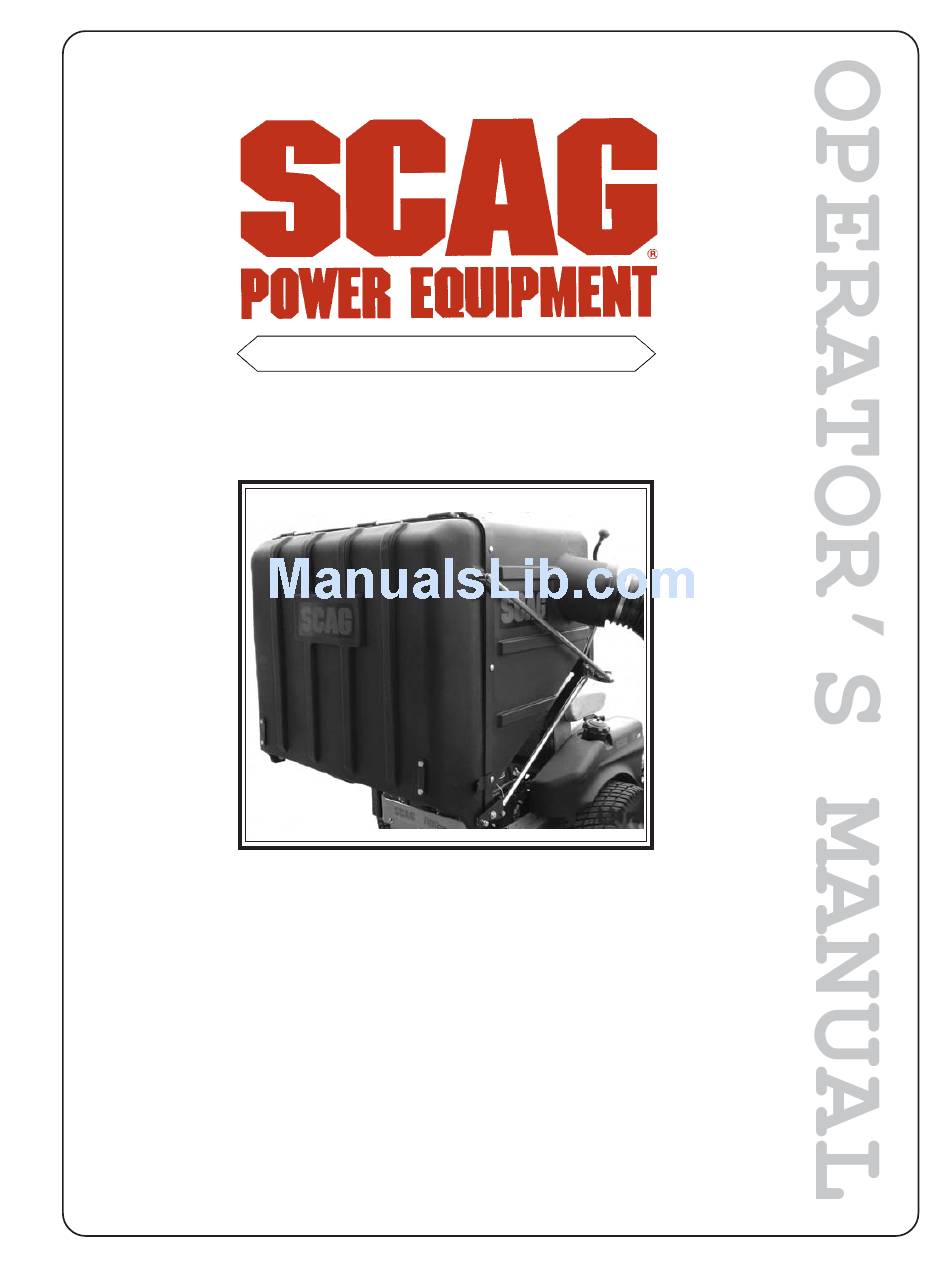

MODEL GC-STC-CSV
THIS MANUAL CONTAINS THE OPERATING
INSTRUCTIONS AND SAFETY INFORMA-
TION FOR YOUR SCAG ACCESSORY. READ-
ING THIS MANUAL WILL PROVIDE YOU
WITH MAINTENANCE AND ADJUSTMENT
PROCEDURES TO KEEP YOUR ACCESSORY
PERFORMING TO MAXIMUM EFFICIENCY.
THE SPECIFIC MODELS THAT THIS BOOK
COVERS ARE CONTAINED ON THE INSIDE
COVER. BEFORE OPERATING YOUR MA-
CHINE, PLEASE READ ALL THE INFORMA-
TION ENCLOSED.
PART NUMBER 03183
Advertisement
Related Manuals for Scag Power Equipment GC-STC-CSV
Summary of Contents for Scag Power Equipment GC-STC-CSV
- Page 1 MODEL GC-STC-CSV THIS MANUAL CONTAINS THE OPERATING INSTRUCTIONS AND SAFETY INFORMA- TION FOR YOUR SCAG ACCESSORY. READ- ING THIS MANUAL WILL PROVIDE YOU WITH MAINTENANCE AND ADJUSTMENT PROCEDURES TO KEEP YOUR ACCESSORY PERFORMING TO MAXIMUM EFFICIENCY. THE SPECIFIC MODELS THAT THIS BOOK COVERS ARE CONTAINED ON THE INSIDE COVER.
- Page 2 This manual covers the operating instructions GC-STC-CSV with a serial number of B9100001 to B9199999 WARNING and illustrated parts list for:...
-
Page 3: Direction Reference
A replacement manual is available from your authorized Scag Service Dealer or by contacting: Scag Power Equipment, Service Department at P.O. Box 152, Mayville, WI 53050. You may also contact us through our website at www.scag.com. The... - Page 4 3. When dumping the hopper into a disposal area: WARNING WARNING DO NOT DUMP CLIPPINGS IN A DISPOSAL AREA THAT IS BURNING Disengage the deck drive, apply the parking brake and allow all moving parts to come to a complete stop. Pull downward on the hopper door handle to allow the hopper sweeper to remove the material from inside the hopper.
- Page 5 3.1 ASSEMBLY INSTRUCTIONS FOR 48" AND 52" CUTTER DECK -NOTE- Use the illustrated parts list as a part number reference when following the assembly instructions. 1. Remove all packaging materials. Lay out the mounting hardware and the catcher assembly parts for easy access. Prepare the work area making sure that it is a clean, safe environment.
- Page 6 7. Install the blower assembly to the mounting bracket and secure with the mounting pin. See Figure 3-4. 8. Align the blower assembly with the discharge opening of the cutter deck. Tighten the hardware for the mounting bracket. See Figure 3-4.
- Page 7 14. Install the hose from the blower assembly adapter to the hopper hood and secure using the 6-1/2" clamps. 15. Using the weight support bar (p/n 451517) as a guide, identify the four corresponding mounting holes, and the existing hardware that will need to be removed in order to secure the weight support bar to the front of the machine as shown.
- Page 8 4.1 GRASS CATCHER REMOVAL INSTRUCTIONS 1. Prepare the machine so there is easy and safe access to the work area. Remove the key and maintain all safety related work procedures. Always wear eye and hand protection. 2. Remove the bag assemblies from the grass catcher.
-
Page 9: Maintenance Chart - Recommended Service Intervals
5.1 MAINTENANCE CHART - RECOMMENDED SERVICE INTERVALS HOURS Break-In 8 20 40 100 200 500 (First 10) * Perform these maintenance procedures more frequently under extreme dusty or dirty conditions. GREASE FITTING ON BEARING HOUSING MAINTENANCE Procedure Check all hardware for tightness Inspect hose and adapter Check belt for proper alignment Inspect fabric bags... - Page 10 GC-STC-CSV 48" & 52" BLOWER HOUSING ASSEMBLY 2005 GC V+ Blower Assembly...
- Page 11 GC-STC-CSV 48" & 52" BLOWER HOUSING ASSEMBLY Ref. Part Number Description 04067-07 Pin, Ring 2-1/4" Long 481547 Lanyard, Deck Height Pin 04019-02 Nut, Serr. Flange 1/4-20 04001-59 Bolt, Hex Head 1/4-20 x 1-1/4" 481377 Decal, Blower 482080 Decal, Rotating Blower...
- Page 12 GC-STC-CSV 48" & 52" BLOWER MOUNTING COMPONENTS RIGHT SIDE OF CUTTER DECK SHOWN UNDER SIDE OF VELOCITY-PLUS CUTTER DECK SHOWN 2006 GC-STC-V BMC...
- Page 13 GC-STC-CSV 48" & 52" BLOWER MOUNTING COMPONENTS Ref. Part Number Description 483224 Belt Cover, GC-STC 04029-04 Wingnut, Plastic 3/8" Small 483223 Cap, Square Vinyl 04021-08 Nut, Elastic Stop 1/4-20 461723 Adapter, Blower GC-STC, includes item #7 04040-14 Flatwasher, 1/4-.312 x .750 x .065 48137-04 Rubber Strap 7-3/4"...
- Page 14 GC-STC-CSV HOPPER COMPONENTS 25 36 2006 CSHOPPEREXPLOD-STC...
- Page 15 GC-STC-CSV HOPPER COMPONENTS Ref. Part Number Description 461627 Hopper, GC-STC-CS 482732 Door, GC-CS 461626 Sweeper Weldment, GC-CS 482777 Pad, Rubber 04090-02 Pop Rivet, 3/16 x .652 423834 Plate, Stiffener 423938 Support Frame, Hopper 423849 Hinge Bracket, L.H. 423850 Hinge Bracket, R.H.
- Page 16 GC-STC-CSV DECALS 481039 482275 483044 481327 481377 483037 483039...
- Page 17 This warranty does not cover engines and electric starters, which are warranted separately by their manufacturer. Scag Power Equipment reserves the right to change or improve the design of any accessory without assuming any obligation to modify any accessory previously manufactured.
- Page 18 © 2005 PART NO. 03183 SCAG POWER EQUIPMENT PRINTED 7-2005 DIVISION OF METALCRAFT OF MAYVILLE, INC PRINTED IN USA www.scag.com...
