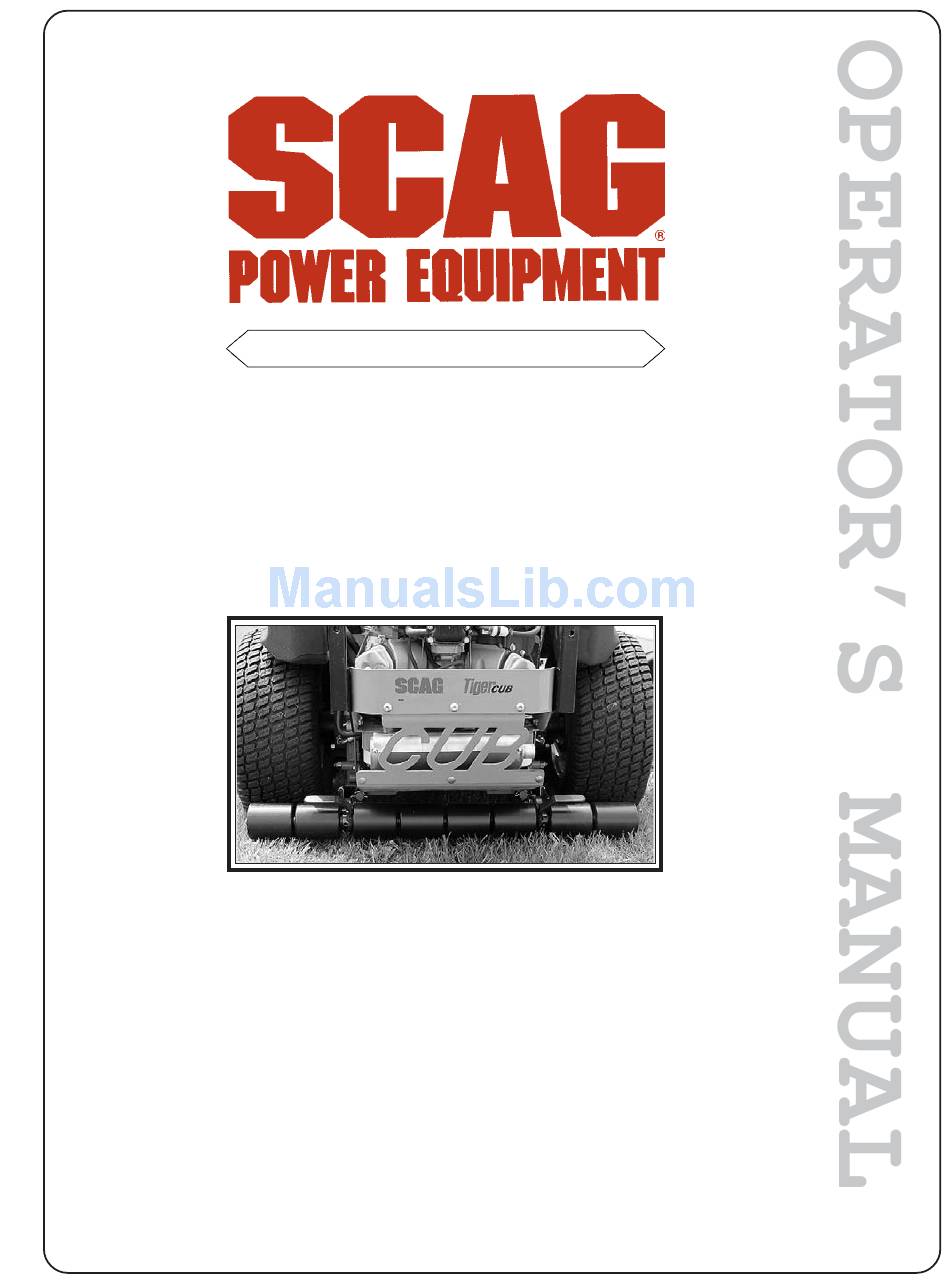

STC - MODELS ABOVE SERIAL NUMBER 7630001
THIS MANUAL CONTAINS THE OPERATING
INSTRUCTIONS AND SAFETY INFORMATION
FOR YOUR SCAG ACCESSORY. READING THIS
MANUAL WILL PROVIDE YOU WITH MAIN-
TENANCE AND ADJUSTMENT PROCEDURES
TO KEEP YOUR ACCESSORY PERFORMING
TO MAXIMUM EFFICIENCY. THE SPECIFIC
MODELS THAT THIS BOOK COVERS ARE CON-
TAINED ON THE INSIDE COVER. BEFORE
OPERATING YOUR MACHINE, PLEASE READ
ALL THE INFORMATION ENCLOSED.
© 2004
SCAG POWER EQUIPMENT
DIVISION OF METALCRAFT OF MAYVILLE, INC
WWW.SCAG.COM
MODEL TS
ACCESSORY FOR:
STT - ALL MODELS
PART NO. 03158
PRINTED 8-2004
PRINTED IN USA
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Scag Power Equipment MODEL TS
Summary of Contents for Scag Power Equipment MODEL TS
- Page 1 MODEL TS ACCESSORY FOR: STC - MODELS ABOVE SERIAL NUMBER 7630001 THIS MANUAL CONTAINS THE OPERATING INSTRUCTIONS AND SAFETY INFORMATION FOR YOUR SCAG ACCESSORY. READING THIS MANUAL WILL PROVIDE YOU WITH MAIN- TENANCE AND ADJUSTMENT PROCEDURES TO KEEP YOUR ACCESSORY PERFORMING TO MAXIMUM EFFICIENCY.
- Page 2 FAILURE TO FOLLOW SAFE OPERATING PRACTICES MAY RESULT IN SERIOUS INJURY. * Keep all safety shields in place. * Before performing any maintenance or service, stop the machine and remove the spark plug wire. * If a mechanism becomes clogged, stop the engine and wait for all moving parts to come to a complete halt before cleaning.
-
Page 3: Safety Information
A replacement manual is available from your authorized Scag Service Dealer or by contacting: Scag Power Equipment, Service Department at P.O. Box 152, Mayville, WI 53050. You may also contact us through our website at www.scag.com. Please indicate the complete model number of your Scag product when ordering a replacement manual. - Page 4 Roll Pin Lift Up on Handle Push and Turn Pin to line up Roll Pin with Slot to Unlock FIGURE 2-1 2. Repeat this procedure on the opposite side. The machine is now ready to operate. 2.3 REMOVING THE TIGER STRIPER The Tiger Striper can be easily removed whenever the machine is being transported or when striping is not needed.
- Page 5 3. Attach the mounting brackets to the cross bar between the wheel motor brackets using (4) u- bolts and (8) serrated flange nuts. See Figure 3-1. Do not tighten the hardware. -NOTE- If the Tiger Striper is installed on an STT with a serial number below 7219999, part number 423966 mounting spacer will need to be installed between the mounting bracket...
- Page 6 3. Attach the mounting brackets to the cross bar between the wheel motor brackets using (4) u-bolts and (8) serrated flange nuts. See Figure 3-3. Do not tighten the hardware. -Note- The Tiger Striper cannot be installed on an STC with a serial number below 7630001. (4x) U-Bolts Mounting Spacer...
- Page 7 LAWN STRIPING GUIDELINES A stripe pattern can add richness and depth to any lawn. Here are some guidelines to help produce various patterns and to enhance your striping techniques. Basic stripe pattern: Begin by mowing the perimeter around the property (Reference Figure 4-1).
- Page 8 TIGER STRIPER ASSEMBLY - STT STT with a serial number of 7219999 or Below 4 (4x) 1 (4x) 4 (4x) 3 (4x) 1 (4x) 3 (4x) STT-TS Exploded View...
- Page 9 TIGER STRIPER ASSEMBLY - STT Ref. Part Number Description 04021-09 Nut, Elastic Stop 3/8-16 423953 Striper Stop, L.H. 04001-19 Bolt, Hex Head 3/8-16 x 1" 04100-01 U-Bolt, 5/16-18 x 1" 451660 Mounting Bracket Weldment, LH. 04041-11 Flatwasher, 3/8-.406 x 1-1/2" 7 Gauge 04001-22 Bolt, Hex Head 3/8-16 x 2-3/4"...
- Page 10 TIGER STRIPER ASSEMBLY - STC 4 (4x) STC-TS Exploded View...
- Page 11 TIGER STRIPER ASSEMBLY - STC Ref. Part Number Description 423966 Spacer, Striper Mounting 43653 Roller Shaft 48100-24 Bushing, .752 Oilite 04100-01 U-Bolt, 5/16-18 x 1" 451660 Mounting Bracket Weldment, LH. **L.H. Mounting Bracket is used on the Right Side on STC 04041-11 Flatwasher, 3/8-.406 x 1-1/2"...
- Page 12 NOTES...
- Page 13 This warranty does not cover engines and electric starters, which are warranted separately by their manufacturer. Scag Power Equipment reserves the right to change or improve the design of any accessory without assuming any obligation to modify any accessory previously manufactured.
- Page 14 © 2004 PART NO. 03158 SCAG POWER EQUIPMENT PRINTED 8-2004 DIVISION OF METALCRAFT OF MAYVILLE, INC PRINTED IN USA WWW.SCAG.COM...
