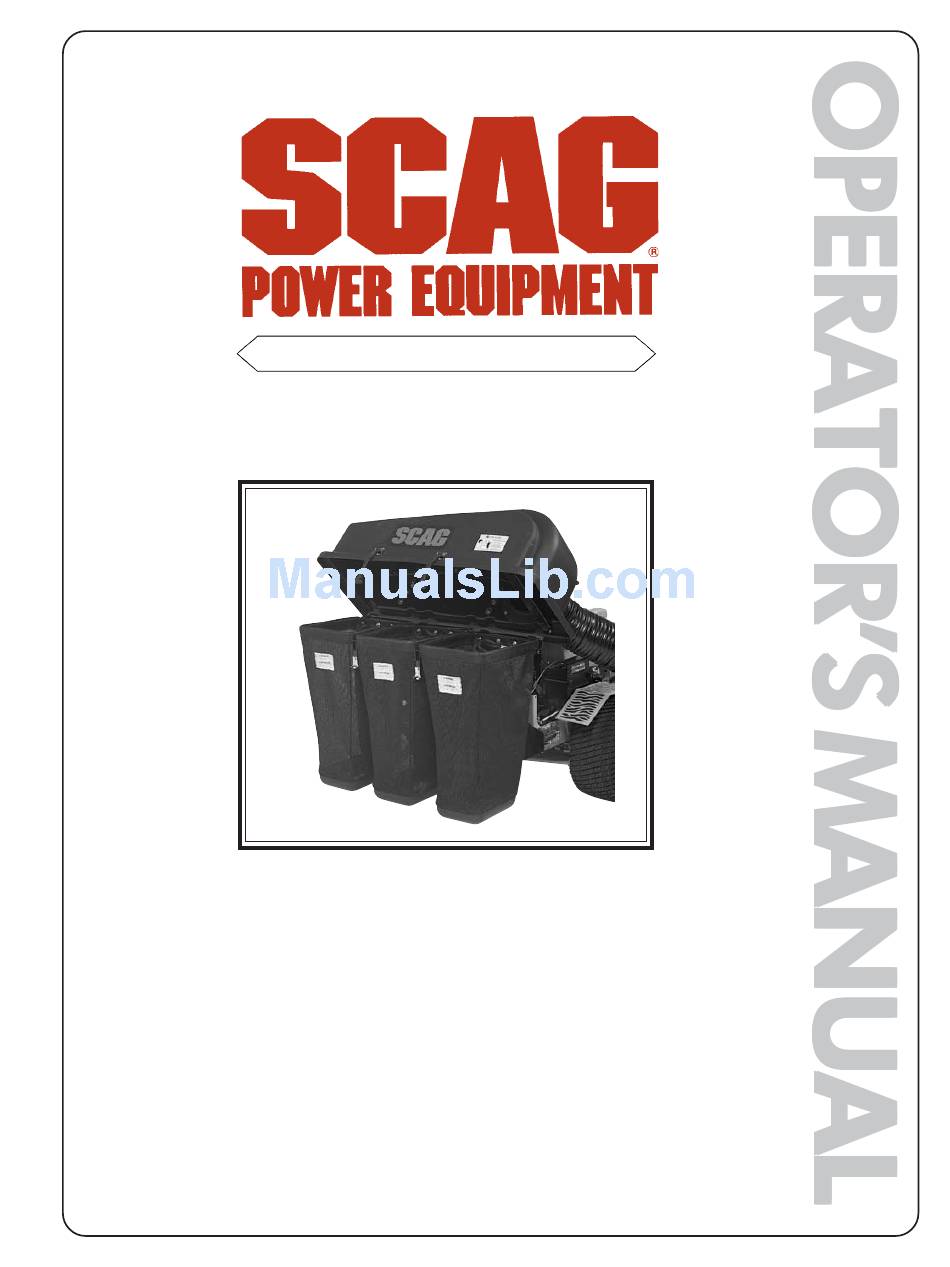

MODEL GC-STT-V
THIS MANUAL CONTAINS THE OPERATING
INSTRUCTIONS AND SAFETY INFORMA-
TION FOR YOUR SCAG ACCESSORY. READ-
ING THIS MANUAL WILL PROVIDE YOU
WITH MAINTENANCE AND ADJUSTMENT
PROCEDURES TO KEEP YOUR ACCESSORY
PERFORMING TO MAXIMUM EFFICIENCY.
THE SPECIFIC MODELS THAT THIS BOOK
COVERS ARE CONTAINED ON THE INSIDE
COVER. BEFORE OPERATING YOUR MA-
CHINE, PLEASE READ ALL THE INFORMA-
TION ENCLOSED.
PART NUMBER 03181
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Scag Power Equipment GC-STT-V
Summary of Contents for Scag Power Equipment GC-STT-V
- Page 1 MODEL GC-STT-V THIS MANUAL CONTAINS THE OPERATING INSTRUCTIONS AND SAFETY INFORMA- TION FOR YOUR SCAG ACCESSORY. READ- ING THIS MANUAL WILL PROVIDE YOU WITH MAINTENANCE AND ADJUSTMENT PROCEDURES TO KEEP YOUR ACCESSORY PERFORMING TO MAXIMUM EFFICIENCY. THE SPECIFIC MODELS THAT THIS BOOK COVERS ARE CONTAINED ON THE INSIDE COVER.
- Page 2 FAILURE TO FOLLOW SAFE OPERATING PRACTICES MAY RESULT IN SERIOUS INJURY. * Keep all safety shields in place. * Before performing any maintenance or service, stop the machine and remove the spark plug wire. * If a mechanism becomes clogged, stop the engine and wait for all moving parts to come to a complete halt before cleaning.
-
Page 3: Direction Reference
A replacement manual is available from your authorized Scag Service Dealer or by contacting: Scag Power Equipment, Service Department at P.O. Box 152, Mayville, WI 53050. You may also contact us through our website at www.scag.com The... -
Page 4: Assembly Instructions
"Turbo" baffles. These baffles may be reinstalled anytime the grass catcher has been removed from the machine. 6. Install the blower mounting bracket to the deck using 1/2-13 x 1-1/2" hex head bolts (p/n 04001- 71), 1/2" spring lockwashers (p/n 04030-06), and 1/2-13 elastic stop nuts (p/n 04021-07). - Page 5 8. Install the blower assembly to the mounting bracket and secure with the mounting pin and hair pin. See Figure 3-5, Page 4. 9. Align the blower assembly with the discharge opening of the cutter deck. Tighten the hardware for the mounting bracket. Install the quick pin through the rear hole in the discharge chute mounting bracket.
- Page 6 VIEW FROM RIGHT SIDE MOUNTING PIN TIGHTEN MOUNTING BRACKET HARDWARE 2006 GC-STC-V install art 3 61" Cutter Deck OF CUTTER DECK FIGURE 3-4 BLOWER ASSEMBLY QUICK HAIR MOUNTING BRACKET RIGHT SIDE OF CUTTER DECK SHOWN (Note: Some parts not shown for viewing purposes.)
- Page 7 Figure 3-8, Page 17. Install adapter (p/n 461723) to the blower assembly and secure with the strap. 18. Install the hose from the blower assembly to the hopper hood. Secure using the 8-1/2" clamps. -NOTE-...
- Page 8 Hood Assembly Heatshield Item # Part # 04001-46 04001-19 04021-09 04030-04 04041-07 04066-03 423670 451512 Description Bolt, Hex Head 3/8-16 x 2-1/4" Bolt, Hex Head 3/8-16 x 1" Nut, Elastic Stop 3/8-16 Lockwasher, 3/8 Spring Flatwasher, 3/8-.391 x .938 x .105 Quick Pin Spacer, Hitch Hitch Bracket Weldment...
- Page 9 3. Remove the rubber strap holding the adapter to the blower assembly. See Figure 4-1. 4. Remove the belt from the spindle pulley and the large hair pin securing the blower to the discharge chute mounting hole. 5. Remove the mounting pin, hair pin and quick pin securing the blower assembly to the cutter deck and remove the blower assembly.
-
Page 10: Maintenance Chart - Recommended Service Intervals
Check belt for proper alignment Inspect fabric bags *Check screen in hopper Inspect hose and adapter Inspect fabric bags Check condition of blower *Apply grease to blower bearings Check belt for proper alignment ON BEARING HOUSING Comments Remove debris from screen See figure below... - Page 11 NOTES...
- Page 12 GC-STT-V BLOWER HOUSING ASSEMBLY 2005 GC V+ Blower Assembly...
- Page 13 GC-STT-V BLOWER HOUSING ASSEMBLY Ref. Part Number Description 04067-07 Pin, Ring 2-1/4" Long 481547 Lanyard, Deck Height Pin 04019-02 Nut, Serr. Flange 1/4-20 04001-59 Bolt, Hex Head 1/4-20 x 1-1/4" 481377 Decal, Blower 482080 Decal, Rotating Blower 481428 Grip, Blower Lever...
- Page 14 GC-STT-V BLOWER MOUNTING COMPONENTS UNDER SIDE OF VELOCITY-PLUS CUTTER DECK SHOWN RIGHT SIDE OF CUTTER DECK SHOWN 2006 GC-STC-V BMC...
- Page 15 GC-STT-V BLOWER MOUNTING COMPONENTS Ref. Part Number Description 483225 Belt Cover, GC-STT - 52" 483227 Belt Cover, GC-STT - 61" 04029-04 Wingnut, Plastic 3/8" Small 483223 Cap, Square Vinyl 04021-08 Nut, Elastic Stop 1/4-20 461723 Adapter, Blower GC-STT, includes item #7 04040-14 Flatwasher, 1/4-.312 x .750 x .065...
- Page 16 GC-STT-V BUCKET SUPPORT COMPONENTS...
- Page 17 GC-STT-V BUCKET SUPPORT COMPONENTS Ref. Part Number Description 423302 Screen, Catcher Hood 04090-02 Pop Rivet, 3/16 x .652 04041-19 Flatwasher, 3/16-.196 x .469 x .048 04001-32 Bolt, Hex Head 3/8-16 x 1-1/4" 04041-07 Flatwasher, 3/8-.391 x .938 x .105 461408 Hood Assembly, GC-STT (includes item 1and items 2 &...
- Page 18 GC-STT-V BAG SUPPORT BRACKET AND SEAL 390STT0201...
- Page 19 GC-STT-V BAG SUPPORT BRACKET AND SEAL Ref. Part Number Description 04090-02 Pop Rivet, 3/16 x .652 482321 Seal, Hood 04021-02 Lock Nut, 1/4-20 Center Lock 423312 Retainer, Seal 04003-02 Bolt, Carr. 1/4-20 x 3/4" 04001-08 Bolt, Hex Head 5/16-18 x 3/4"...
- Page 20 GC-STT DECALS 481039 482275 483044 481327 481377 483037 482080...
- Page 21 NOTES...
- Page 22 This warranty does not cover engines and electric starters, which are warranted separately by their manufacturer. Scag Power Equipment reserves the right to change or improve the design of any accessory without assuming any obligation to modify any accessory previously manufactured.
- Page 23 © 2005 PART NO. 03181 SCAG POWER EQUIPMENT PRINTED 7-2005 DIVISION OF METALCRAFT OF MAYVILLE, INC PRINTED IN USA WWW.SCAG.COM...
