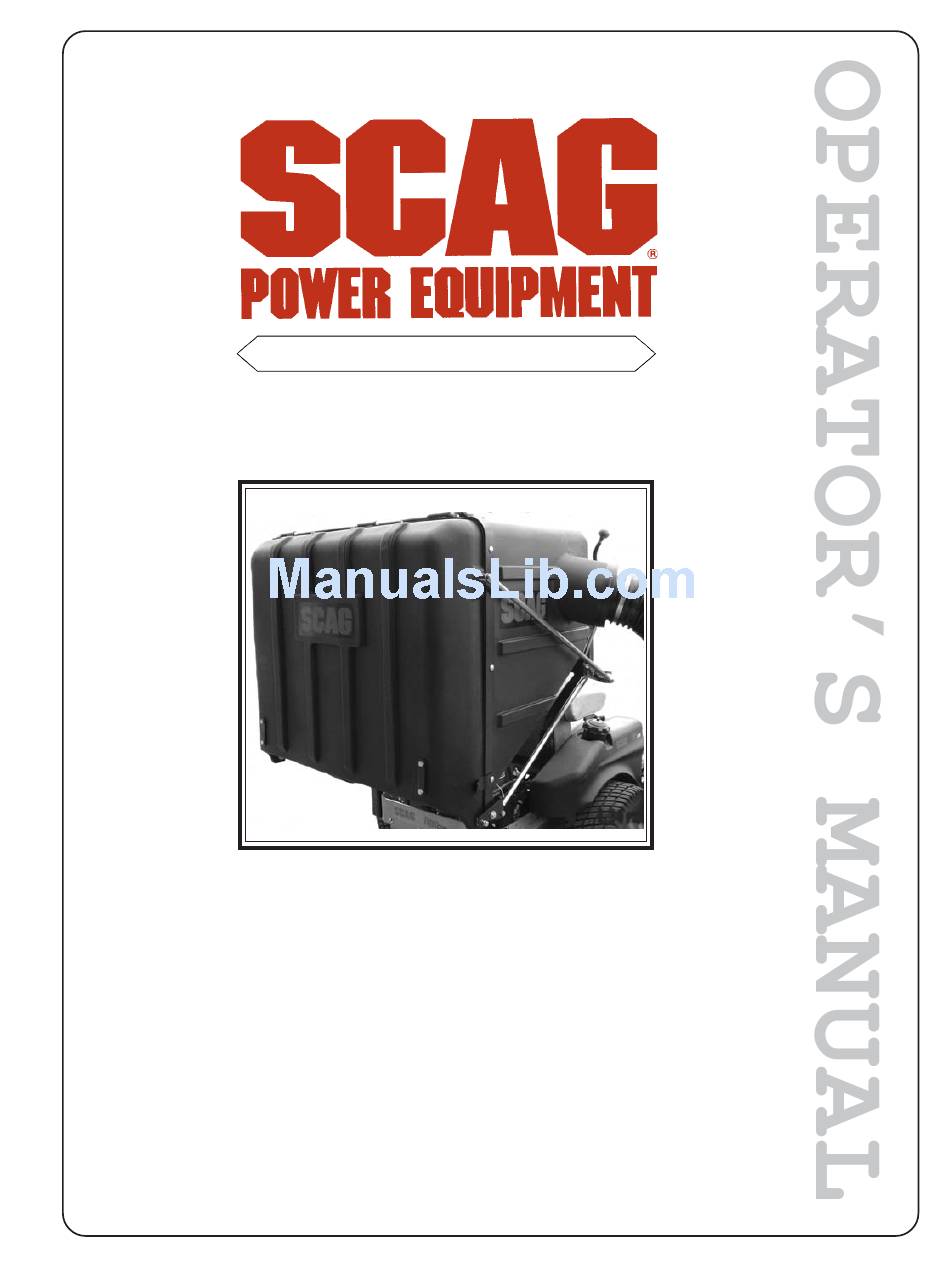

MODEL GC-STC-CS
THIS MANUAL CONTAINS THE OPERATING
INSTRUCTIONS AND SAFETY INFORMA-
TION FOR YOUR SCAG ACCESSORY. READ-
ING THIS MANUAL WILL PROVIDE YOU
WITH MAINTENANCE AND ADJUSTMENT
PROCEDURES TO KEEP YOUR ACCESSORY
PERFORMING TO MAXIMUM EFFICIENCY.
THE SPECIFIC MODELS THAT THIS BOOK
COVERS ARE CONTAINED ON THE INSIDE
COVER. BEFORE OPERATING YOUR MA-
CHINE, PLEASE READ ALL THE INFORMA-
TION ENCLOSED.
PART NUMBER 03156
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Scag Power Equipment GC-STC-CS
Summary of Contents for Scag Power Equipment GC-STC-CS
- Page 1 MODEL GC-STC-CS THIS MANUAL CONTAINS THE OPERATING INSTRUCTIONS AND SAFETY INFORMA- TION FOR YOUR SCAG ACCESSORY. READ- ING THIS MANUAL WILL PROVIDE YOU WITH MAINTENANCE AND ADJUSTMENT PROCEDURES TO KEEP YOUR ACCESSORY PERFORMING TO MAXIMUM EFFICIENCY. THE SPECIFIC MODELS THAT THIS BOOK COVERS ARE CONTAINED ON THE INSIDE COVER.
- Page 2 This manual covers the operating instructions GC-STC-CS with a serial number of A8100001 to A8199999 WARNING and illustrated parts list for:...
-
Page 3: Direction Reference
A replacement manual is available from your authorized Scag Service Dealer or by contacting: Scag Power Equipment, Service Department at P.O. Box 152, Mayville, WI 53050. You may also contact us through our website at www.scag.com The... - Page 4 3. When dumping the hopper into a disposal area: WARNING WARNING DO NOT DUMP CLIPPINGS IN A DISPOSAL AREA THAT IS BURNING Disengage the deck drive, apply the parking brake and allow all moving parts to come to a complete stop. Pull downward on the hopper door handle to allow the hopper sweeper to remove the material from inside the hopper.
- Page 5 3.1 ASSEMBLY INSTRUCTIONS FOR 48" AND 52" CUTTER DECK -NOTE- Use the illustrated parts list as a part number reference when following the assembly instructions. 1. Remove all packaging materials. Lay out the mounting hardware and the catcher assembly parts for easy access. Prepare the work area making sure that it is a clean, safe environment.
- Page 6 FLATWASHER ELASTIC STOP TIGHTEN CATCH PLATE HARDWARE MOUNTING PIN TIGHTEN MOUNTING BRACKET HARDWARE 2005 GC-STC install art 3 CARRIAGE BOLT FIGURE 3-2 BLOWER ASSEMBLY HAIR MOUNTING BRACKET P R O P E R L Y S E R V I C E E N G I N E W I T H O I L...
- Page 7 10. Install the new belt covers and secure. See items number 1 and number 21 on page 10 of the Blower Mounting Components section in the Illustrated Parts List for proper installation. 11. Install the hopper mounting brackets to the outside of the frame on the rear of the machine.
- Page 8 4.1 GRASS CATCHER REMOVAL INSTRUCTIONS 1. Prepare the work area making sure that it is a clean, safe environment. 2. Remove the rubber strap holding the adapter to the blower assembly. See Figure 4-1. 3. Remove the pin and hair pin holding the blower assembly to the mounting bracket on the cutter deck and remove the blower assembly.
- Page 9 Notes...
- Page 10 GC-STC 48" & 52" BLOWER HOUSING ASSEMBLY 2005 GC Blower Assembly...
- Page 11 GC-STC 48" & 52" BLOWER HOUSING ASSEMBLY Ref. Part Number Description 04067-07 Pin, Ring 2-1/4" Long 481547 Lanyard, Deck Height Pin 04019-02 Nut, Serr. Flange 1/4-20 04001-59 Bolt, Hex Head 1/4-20 x 1-1/4" 04001-01 Bolt, Hex Head 1/4-20 x 3/4" 423298 Belt Cover, Rear 481428...
- Page 12 GC-STC 48" & 52" BLOWER MOUNTING COMPONENTS FOR MACHINES WITH A SERIAL CUTTER DECK SHOWN RIGHT SIDE OF CUTTER DECK SHOWN NUMBER BETWEEN 7630001 - 8479999 ONLY UNDER SIDE OF 390STC203B...
- Page 13 GC-STC 48" & 52" BLOWER MOUNTING COMPONENTS Ref. Part Number Description 482612 Belt Cover, GC-STC 04029-04 Wingnut, Plastic 3/8" Small 482300 Cap, Square Vinyl 04021-08 Nut, Elastic Stop 1/4-20 461723 Adapter, Blower GC-STC, includes item #7 04040-14 Flatwasher, 1/4-.312 x .750 x .065 48137-04 Rubber Strap 7-3/4"...
- Page 14 GC-STC-CS HOPPER COMPONENTS 25 36 2005 CSHOPPEREXPLOD-STC...
- Page 15 GC-STC-CS HOPPER COMPONENTS Ref. Part Number Description 461627 Hopper, GC-STC-CS 482732 Door, GC-CS 461626 Sweeper Weldment, GC-CS 482777 Pad, Rubber 04090-02 Pop Rivet, 3/16 x .652 423834 Plate, Stiffener 423938 Support Frame, Hopper 423849 Hinge Bracket, L.H. 423850 Hinge Bracket, R.H.
- Page 16 GC-STC-CS DECALS 481039 482275 481327 481377 483037 483039...
- Page 17 This warranty does not cover engines and electric starters, which are warranted separately by their manufacturer. Scag Power Equipment reserves the right to change or improve the design of any accessory without assuming any obligation to modify any accessory previously manufactured.
- Page 18 © 2004 PART NO. 03156 SCAG POWER EQUIPMENT PRINTED 8-2004 DIVISION OF METALCRAFT OF MAYVILLE, INC PRINTED IN USA www.scag.com...
