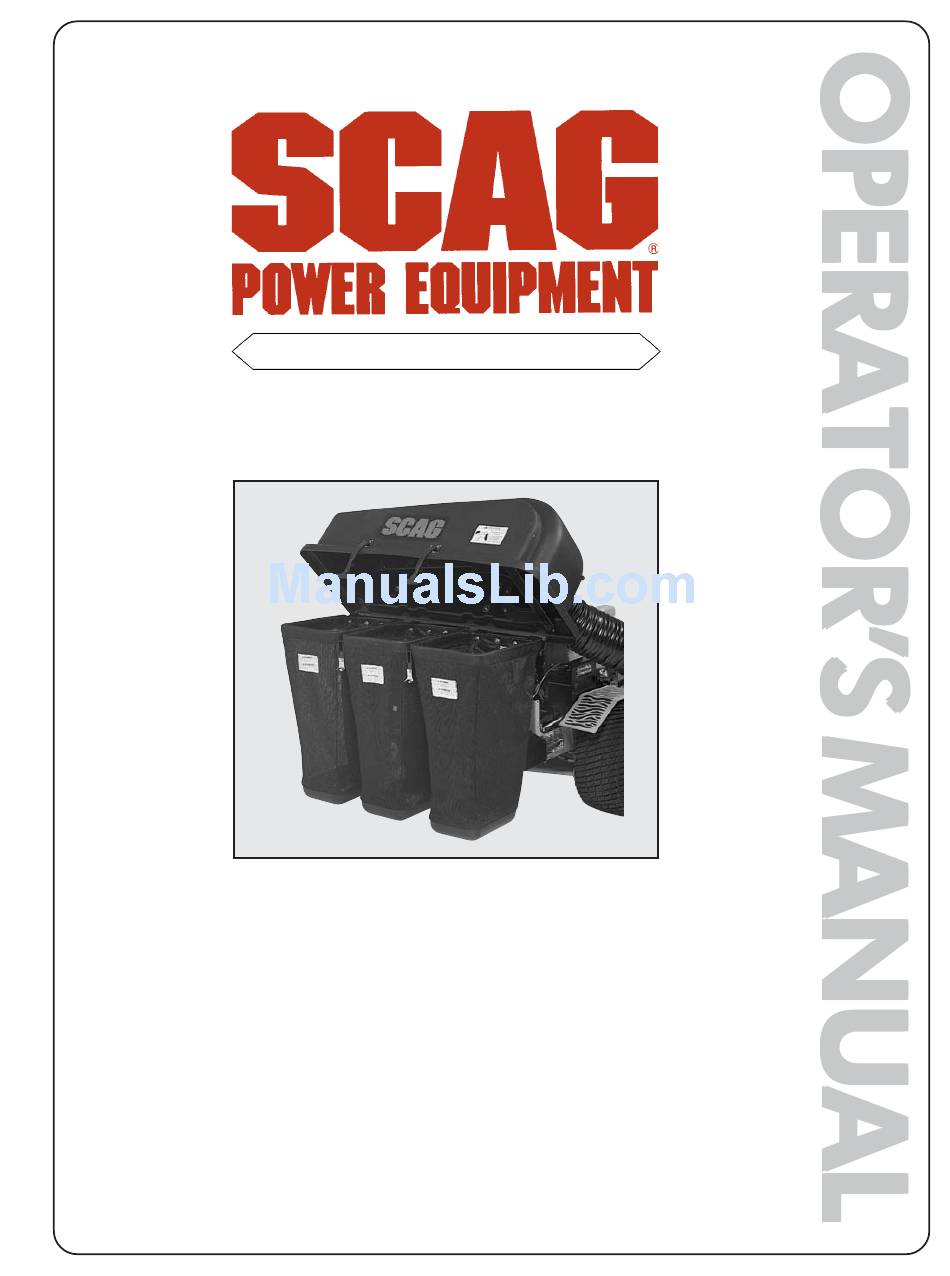

MODEL GC-STC-V
THIS MANUAL CONTAINS THE OPERATING
INSTRUCTIONS AND SAFETY INFORMA-
TION FOR YOUR SCAG ACCESSORY. READ-
ING THIS MANUAL WILL PROVIDE YOU
WITH MAINTENANCE AND ADJUSTMENT
PROCEDURES TO KEEP YOUR ACCESSORY
PERFORMING TO MAXIMUM EFFICIENCY.
THE SPECIFIC MODELS THAT THIS BOOK
COVERS ARE CONTAINED ON THE INSIDE
COVER. BEFORE OPERATING YOUR MA-
CHINE, PLEASE READ ALL THE INFORMA-
TION ENCLOSED.
PART NUMBER 03228

Advertisement

loading
Need help?

Need help?

Do you have a question about the GC-STC-V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Scag Power Equipment GC-STC-V

Summary of Contents for Scag Power Equipment GC-STC-V

  • Page 1 MODEL GC-STC-V THIS MANUAL CONTAINS THE OPERATING INSTRUCTIONS AND SAFETY INFORMA- TION FOR YOUR SCAG ACCESSORY. READ- ING THIS MANUAL WILL PROVIDE YOU WITH MAINTENANCE AND ADJUSTMENT PROCEDURES TO KEEP YOUR ACCESSORY PERFORMING TO MAXIMUM EFFICIENCY. THE SPECIFIC MODELS THAT THIS BOOK COVERS ARE CONTAINED ON THE INSIDE COVER.
  • Page 2 This manual covers the operating instructions GC-STC-V with a serial number of E1800001 to E1899999 WARNING and illustrated parts list for:...

  • Page 3: Direction Reference

    A replacement manual is available from your authorized Scag Service Dealer or by contacting: Scag Power Equipment, Service Department at P.O. Box 152, Mayville, WI 53050. You may also contact us through our website at www.scag.com. The...
  • Page 4 INSTALL PULLEY ON RH SPINDLE SHAFT - ELASTIC STOP ON TOP OF EXISTING SPINDLE DRIVE PULLEY REMOVE EXISTING RT. SIDE BELT COVER Figure 1- GC-STC-V install art UNDER SIDE OF VELOCITY-PLUS CUTTER DECK SHOWN FIGURE 3-2 -NOTE- CARRIAGE BOLT FIGURE 3-3...
  • Page 5 TIGHTEN MOUNTING BRACKET HARDWARE CUTTER DECK SHOWN (Note: Some parts not shown for viewing purposes.) 2006 GC-STC-V install art 3 FIGURE 3-4 10. Install the belt to the spindle pulley. When replacing the belt, see Figure 3-5 below. BACK SIDE...
  • Page 6 14. Attach the hood assembly to the machine by installing the mounting post into the hopper mounting brackets. Secure with the ring pins and tighten the locking bolts. See Figure 3-8. Locking Bolts Locking Bolts Ring Pins FIGURE 3-8 15. Install the hose from the blower assembly adapter to the hopper hood and secure using the 6-1/2"...
  • Page 7 PIN & HAIR PIN MOUNTING BRACKET CUTTER DECK SHOWN 2006 GC-STC-V removal art 1 (Note: Some parts not shown for viewing purposes.) FIGURE 4-1 5. Loosen the locking bolts and remove the two (2) pins holding the hood assembly to the mounting posts on the rear of the machine.

  • Page 8: Maintenance Chart - Recommended Service Intervals

    5.1 MAINTENANCE CHART - RECOMMENDED SERVICE INTERVALS HOURS Break-In 8 20 40 100 200 500 (First 10) * Perform these maintenance procedures more frequently under extreme dusty or dirty conditions. GREASE FITTING ON BEARING HOUSING MAINTENANCE Procedure Check all hardware for tightness Inspect hose and adapter Check belt for proper alignment Inspect fabric bags...
  • Page 9 NOTES...
  • Page 10 GC-STC-V 48" & 52" BLOWER HOUSING ASSEMBLY 2005 GC V+ Blower Assembly...
  • Page 11 GC-STC-V 48" & 52" BLOWER HOUSING ASSEMBLY Ref. Part Number Description 04067-07 Pin, Ring 2-1/4" Long 481547 Lanyard, Deck Height Pin 04019-02 Nut, Serr. Flange 1/4-20 04001-59 Bolt, Hex Head 1/4-20 x 1-1/4" 483392 Decal, Blower 483393 Decal, Rotating Blower...
  • Page 12 GC-STC-V 48" & 52" BLOWER MOUNTING COMPONENTS UNDER SIDE OF VELOCITY-PLUS CUTTER DECK SHOWN RIGHT SIDE OF CUTTER DECK SHOWN 2006 GC-STC-V BMC...
  • Page 13 GC-STC-V 48" & 52" BLOWER MOUNTING COMPONENTS Ref. Part Number Description 483224 Belt Cover, GC-STC 04029-04 Wingnut, Plastic 3/8" Small 483223 Cap, Square Vinyl 04021-08 Nut, Elastic Stop 1/4-20 461723 Adapter, Blower GC-STC, includes item #7 04040-14 Flatwasher, 1/4-.312 x .750 x .065 48137-04 Rubber Strap 7-3/4"...
  • Page 14 GC-STC BUCKET SUPPORT COMPONENTS (UPPER)
  • Page 15 GC-STC BUCKET SUPPORT COMPONENTS (UPPER) Ref. Part Number Description 423302 Screen, Catcher Hood 04090-02 Pop Rivet, 3/16 x .652 04041-19 Flatwasher, 3/16-.196 x .469 x .048 04001-32 Bolt, Hex Head 3/8-16 x 1-1/4" 04041-01 Flatwasher, 3/8-.391 x .938 x .105 461408 Hood Assembly, GC-STT (includes items 1, 2 &...
  • Page 16 GC-STC BUCKET SUPPORT COMPONENTS (LOWER) "A" TO "A" STC 2008 BSC...
  • Page 17 GC-STC BUCKET SUPPORT COMPONENTS (LOWER) Ref. Part Number Description 04090-02 Pop Rivet, 3/16 x .652 482321 Seal, Hood 423262 Tube, Upright 04041-07 Flatwasher, 3/8-.391 x .938 x .105 04021-09 Nut, Elastic Stop 3/8-16 04020-04 Nut, 3/8-16 04021-05 Hex Lock Nut, 3/8-16 04067-07 Pin, Ring 1/2 x 2-1/4"...
  • Page 18 GC-STC-V DECALS 483402 481327 483391 483391 482275 MANUFACTURED UNDER ONE OR MORE OF THE FOLLOWING PATENTS: 4,487,006 4,885,903 4,920,733 4,967,543 4,991,382 4,998,948 5,042,239 5,117,617 5,133,176 5,826,416 5,832,708 5,865,018 6,192,666 6,766,633 6,892,519 6,996,962 7,065,946 PATENTS PENDING 483044 483392 483392 483393 483393...
  • Page 19 This warranty does not cover engines and electric starters, which are warranted separately by their manufacturer. Scag Power Equipment reserves the right to change or improve the design of any accessory without assuming any obligation to modify any accessory previously manufactured.
  • Page 20 © 2007 PART NO. 03228 SCAG POWER EQUIPMENT PRINTED 3-2007 DIVISION OF METALCRAFT OF MAYVILLE, INC. PRINTED IN USA WWW.SCAG.COM...
