Summary of Contents for Scag Power Equipment 37621219, 37621220

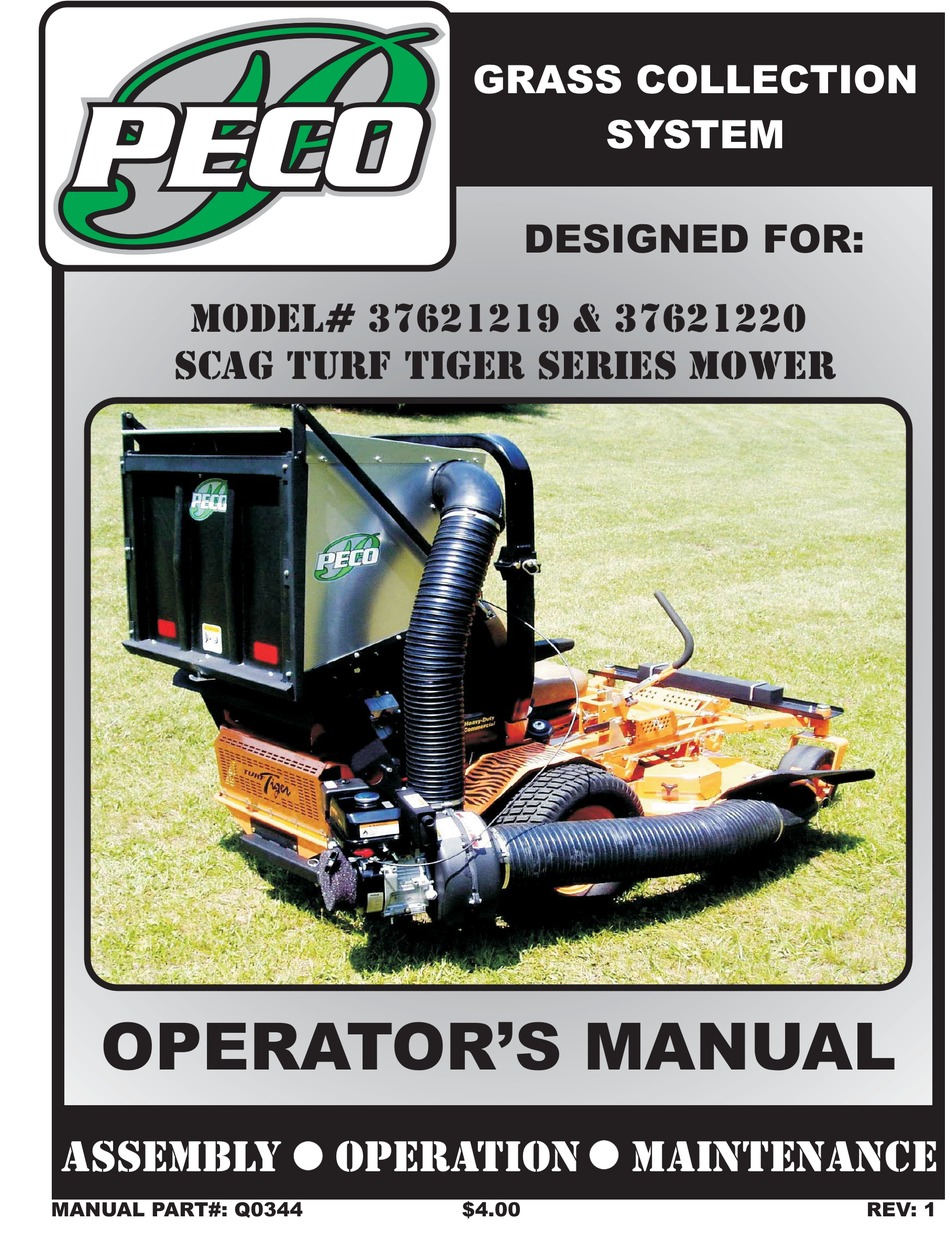

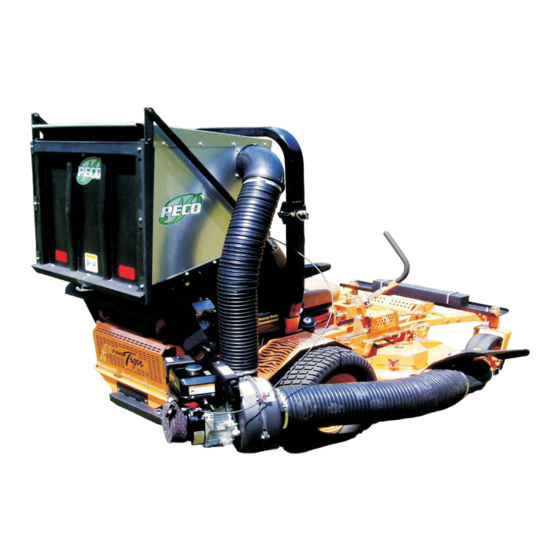

- Page 1 PECO PECO PECO PECO PECO MODEL# 37621219 & 37621220 SCAG TURF TIGER SERIES MOWER OPERATOR’S MANUAL ASSEMBLY MANUAL PART#: Q0344 GRASS COLLECTION DESIGNED FOR: OPERATION $4.00 SYSTEM MAINTENANCE REV: 1...
-
Page 2: Table Of Contents
PECO GRASS COLLECTION SYSTEM SECTION Safety - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2 Safety Alert Symbols - - - - - - - - - - - - - - - - - - - - - - 3 Warranty - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4 INTRODUCTION AND DESCRIPTION - - - - - - - - - - - - - - 5 1-1 Introduction - - - - - - - - - - - - - - - - - - - - - - - - - 5... -
Page 3: Safety Alert Symbols
WARNING! NEVER operate the unit unless the discharge guard and either the deflector assembly or the vacuum collector adapter are fastened securely in place. WARNING! Do not work around the mower deck boot or the blower area until you are certain that the mower blades and the blower impeller have stopped rotating. -
Page 4: Warranty
PECO LIMITED WARRANTY FOR NEW PRODUCTS A. WHAT IS WARRANTED? PECO extends the following warranties to the original purchaser of each new PECO consumer product subject to the following limitations: 1. PRODUCT WARRANTY: Any part of any consumer product, which is defective in material or workmanship as delivered to the purchaser will be repaired or replaced, as PECO elects, without charge for parts or labor, if the defect appears within 12 months from the date of delivery of the product to the original purchaser. -
Page 5: Introduction And Description
INTRODUCTION AND DESCRIPTION 1-1 Introduction We are pleased to have you as a PECO customer. Your collection system has been designed to give you a low maintenance, simple, and effective way to collect the grass clippings from your mower. This manual is provided to give you the necessary instructions to properly mount and operate the collection system on your mower. -
Page 6: Lift Handle Installation
2-3 Lift Handle Installation The various parts of the handle assembly P#(A0273) must be attached to the container frame. Page 7 shows the orientation and location of the components. Slide the lift handle into the slot in the handle mount bracket P#(B1730) on the grass container. -
Page 7: Exploded Parts Views And Assemblies
Lift Handle Assembly Aluminum Grass Container Assembly Aluminum Grass Container With Handle Attached Latch Hook Mechanism Assembly... - Page 8 Aluminum Grass Container Exploded View (1) C0029 Screen Support (1) C0023 Box Back & Sides (1) C1184 (1) A0938 Fill Gage Box/Door Frame (1) B1730 Handle Mount (1) V1131 Plastic Door (1) B3688 Upper Door Member (1) A0738 Door Frame Assembly (2) K1418 Linkage Pin...
- Page 9 A0675 UNIT ASSY. A0794 12 CU. FT. BOX ASSY. A0923 MAIN FRAME ASSY. ENGINE/ BLOWER/ BLADE ASSY. A0674 WEIGHT KIT B2220 HB0138 WEIGHT HARDWARE V1054 A0294 6” PLASTIC LONG THROTTLE INLET KIT FOR (6HP) A0060 LONG THROTTLE KIT FOR (5.5HP) 6”...
-
Page 10: Mount Tube Assembly Installation
2-7 Mount Tube Assembly Installation Remove the (4) carriage bolts and (4) nuts from the rear plate. See Figure 2-7a. Remove the mower’s rear plate and secure the outer engine mount assembly P#(A0416) to the rear of the mower using the existing (4) bolts and nuts. -
Page 11: Blower Cone Installation
2-11 Blower Cone Installation Thread (1) 5/16”-18 jam nut P#(K0120) onto each end of (2) 5/16”-18 x 2-1/2” HHCS P#(K0125). Now partially thread the bolts into each of the two tabs located on the blower housing. Place blower cone so the two tabs line up with the bolts then tighten completely. -
Page 12: The Length Of Hose Adjustment
2-13 Length Of Hose Adjustment The hoses in steps 2-14 and 2-15 must be cut to fit your machine. Follow steps 2-14 and 2-15. Do not cut the hoses until you have tried to fit them on your machine. Remember that the hoses have to be long enough to allow for enough clamping surface between the inlet, blower assembly, and the deck boot, but have to remain short enough to prevent hose “kinks”. -
Page 13: Throttle Cable Installation
2-18 Throttle Cable Installation To install the throttle cable kit to the box assembly, align the large end of the slot in the throttle base plate (Figure 2-18a) with the rivets located on the front of the box assembly frame (Figure 2-18b). Place the throttle base plate over the rivets, Slide the throttle cable kit to the right, moving the smaller end of the slot over the rivets. -
Page 14: Operating Instructions
SECTION III OPERATING INSTRUCTIONS 3-1 General Safety Only qualified people familiar with this operator’s manual and the mower’s operator’s manual should operate this machine. 3-2 Operation & Tips On Mowing A. Perform BEFORE EACH USE maintenance list in paragraph 4-1. B. -
Page 15: Parts And Service
SECTION V PARTS AND SERVICE 5-1 Parts And Service Information PECO collection system owners should record the name and telephone number of their Service Center. Your Service Center will be happy to supply replacement parts, accessories, and do any service or repairs to your collection system. -
Page 16: Safety Decals
SAFETY DECALS To promote safe operation, PECO supplies safety decals on all products manufactured. Damage can occur to safety decals either through shipment, use or reconditioning. Contact your local Service Center for replacement decals. Part #: R4027 Part #: R1053 Part #: R1069 Part #: R4028 Part #: R1057... - Page 18 P P P PECO PECO PECO PECO PECO ARDEN, NORTH CAROLINA 28704 (800) 438-5823 OR (828) 684-1234 FAX: (828) 684-0858 EMAIL: peco@lawnvac.com WEBSITE: www.lawnvac.com P.O. BOX 1197...
