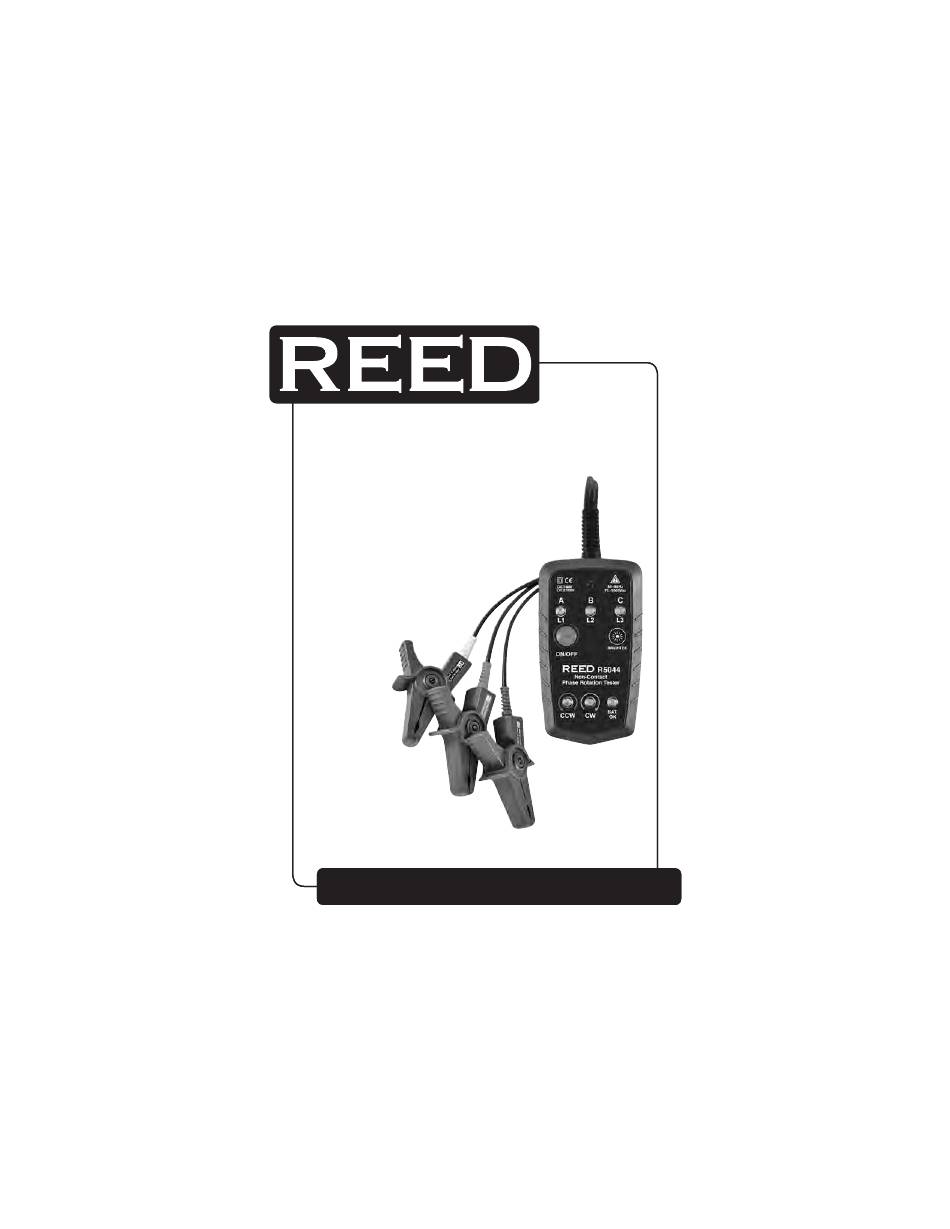

- Page 1 INSTRUMENTS R5044 Model Model Non-Contact Safety Phase Detector INSTRUMENTS Instruction Manual reedinstruments reedinstruments GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Table Of Contents
Table of Contents Safety ......................2 Features ...................... 3 Specifications ..................3-4 Instrument Description ................4 Operating Instructions ................5 Live Wire Check ..................6 Battery Replacement ................7-8 Safety Read the following safety information carefully before attempting to operate or service the detector. 1. -
Page 3: Features
Features • Non-contact voltage sensing alligator clips promote safety • Color-coded leads (red, black, blue) meet IEC 60446 standards • LEDs indicate phase orientation (clockwise or counter-clockwise) and whether each phase is live • Adjustable LED brightness allows for measurement in sunlight and lowly lit environments • Beeper sounds intermittently when detecting correct phase and continuously for a reversed phase • Durable housing with magnets frees hands and allows for easy measurement • Low battery indicator • Includes carrying case and battery Applications • Installing and troubleshooting 3-phase motors, pumps and controls Specifications Voltage Detection Method:... -
Page 4: Instrument Description
Humidity Range: 10-80% Dimensions: 5 x 2.8 x 1.8" (128 x 72 x 46 mm) Weight: 13.2oz (375g) Optional Accessories: Soft Carrying Case (CA-05A) Instrument Description BRIGHTER ON/OFF R5044 Non-Contact Phase Rotation Tester BAT. 6. Phase Sequence LEDs 1. Buzzer 2. Open Phase Indicator 7. Magnets 3. Power Button 8. Warning Label 4. Brightness Button 9. Battery Cover 5. Battery Indicator LED... -
Page 5: Operating Instructions
Operating Instructions 1. Press the power button to turn on the instrument. All of the LEDs will flash during the first 2 seconds. Only the power LED stays illuminated. Do not use the instrument when any of the LEDs do not work. 2. Apex of “ ” mark on each alligator clip is the center of each measurement conductor. Connect the clips as shown: Red to L1, Phase-A. Black to L2, Phase-B. Blue to L3, Phase-C. -
Page 6: Live Wire Check
Live Wire Check State Indication Live Phase with A, B, C ON is live state LED does not light up for missing line of Missing line of Earth line earth line Earth line (Delta connection) Phase with flashing LED is an earth phase When the Green CW LED is ON, the circuit Positive phase is forward under test. The buzzer sounds intermittently. When the Red CCW LED is ON, the Negative phase circuit is reverse under test. The buzzer beeps continuously. A, B, C LED ON is live phase indication. Open phase which LED is off. Detect Indications CW ON = correct phase sequence. CCW ON = incorrect phase sequence. reedinstruments INSTRUMENTS INSTRUMENTS GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 7: Battery Replacement
4. Install the battery compartment cover and tighten the screw. IMPORTANT - When replacing the battery ensure the bottom of the 9V battery is inserted fi rst as shown above. Improper battery insertion may result a loose battery and poor battery connection. For service on this or any other REED product or information on other REED products, contact REED Instruments at info@reedinstruments.com. reedinstruments INSTRUMENTS... - Page 8 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ reedinstruments INSTRUMENTS INSTRUMENTS INSTRUMENTS INSTRUMENTS GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
