Summary of Contents for REED R5044

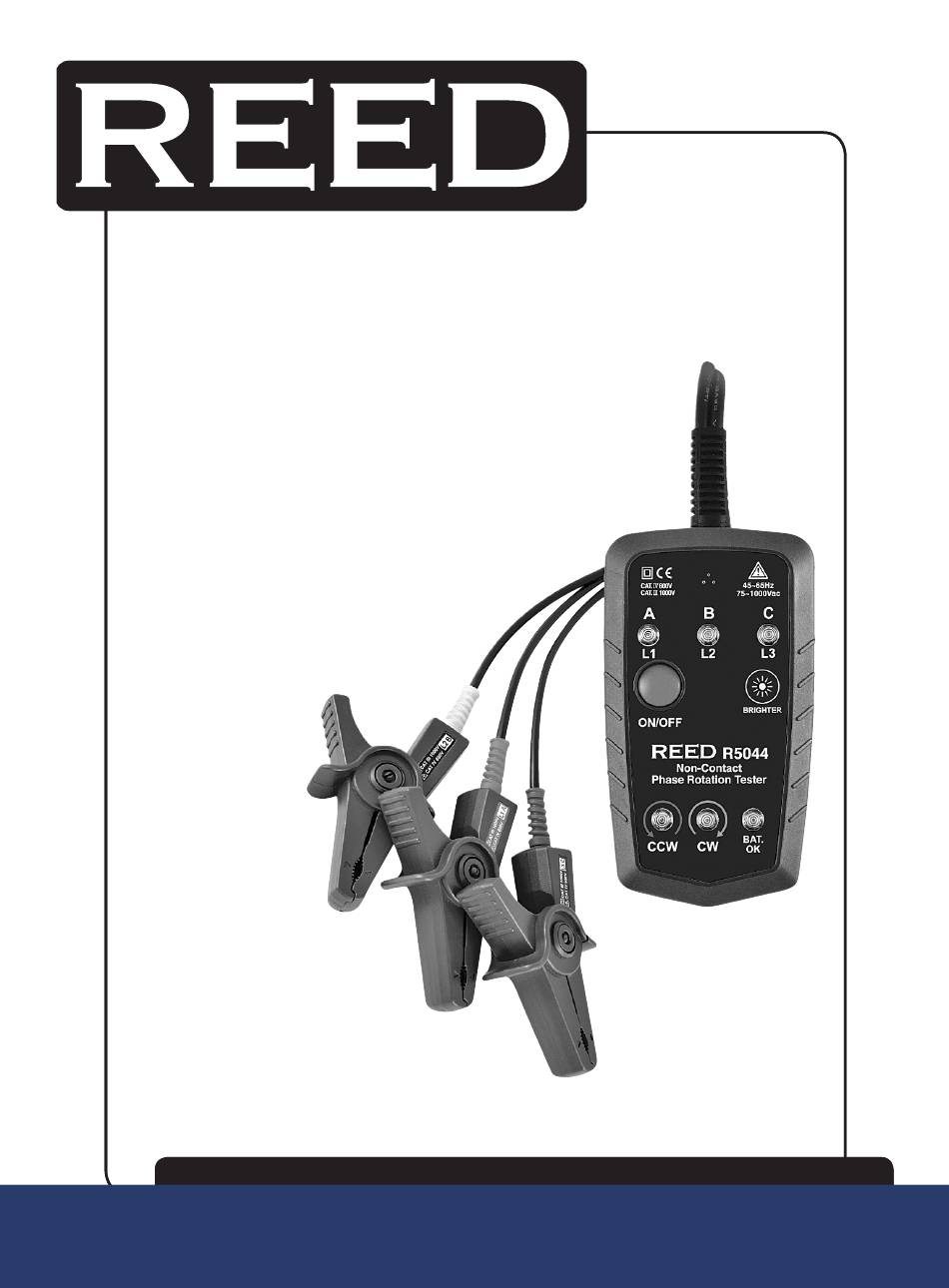

- Page 1 INSTR R5044 Model Model Non-Contact Safety Phase Detector INSTR Instruction Manual reedinstruments reedinstruments REED-Direct.ca info@REED-Direct.ca 1.800.561.8187...
-
Page 2: Table Of Contents
5. Do not use the instrument while it is wet. 6. Never open battery compartment cover while live detecting. 7. Subjecting the detection to shock, vibration, and dropping..may damage the instrument. reedinstruments reedinstruments REED-Direct.ca INSTRUMENTS info@REED-Direct.ca 1.800.561.8187... -
Page 3: Features
• Installing and troubleshooting 3-phase motors, pumps and controls Specifications Voltage Detection Method: Static Induction Voltage Range: 75-1000VAC Frequency: 45-65Hz General Specifications Cable Length: 31.5" (800mm) Cable Color: Red (L1) / Black (L2) / Blue (L3) Indicators Audible (Buzzer) / Visual (LED) Adjustable LED Brightness: Max. Alligator Clip Jaw Opening: 1.18" (30mm) Magnetic Mounts: continued ... reedinstruments REED-Direct.ca INSTRUMENTS info@REED-Direct.ca 1.800.561.8187... -
Page 4: Instrument Description
Humidity Range: 10-80% Dimensions: 5 x 2.8 x 1.8" (128 x 72 x 46 mm) Weight: 13.2oz (375g) Optional Accessories: Soft Carrying Case (CA-05A) Instrument Description BRIGHTER ON/OFF R5044 Non-Contact Phase Rotation Tester BAT. 1. Buzzer 6. Phase Sequence LEDs 7. Magnets 2. Open Phase Indicator 8. Warning Label 3. Power Button 4. Brightness Button 9. Battery Cover 5. Battery Indicator LED... -
Page 5: Operating Instructions
4. Presence of live wires and phase sequence are informed by LED indication and beeping buzzer. 5. A, B, C LEDs always lights up while instrument is detecting the live phase. 6. CW LED ON = correct phase sequence. 7. CCW LED ON = incorrect phase sequence. 8. 30mm is the maximum diameter of tested cable. reedinstruments REED-Direct.ca INSTRUMENTS info@REED-Direct.ca 1.800.561.8187... -
Page 6: Live Wire Check
Live Wire Check State Indication Live Phase with A, B, C ON is live state LED does not light up for missing line of Missing line of Earth line earth line Earth line (Delta connection) Phase with flashing LED is an earth phase When the Green CW LED is ON, the circuit Positive phase is forward under test. The buzzer sounds intermittently. When the Red CCW LED is ON, the Negative phase circuit is reverse under test. The buzzer beeps continuously. A, B, C LED ON is live phase indication. Open phase which LED is off. Detect Indications CW ON = correct phase sequence. CCW ON = incorrect phase sequence. reedinstruments REED-Direct.ca INSTRUMENTS info@REED-Direct.ca 1.800.561.8187... -
Page 7: Battery Replacement
4. Install the battery compartment cover and tighten the screw. IMPORTANT - When replacing the battery ensure the bottom of the 9V battery is inserted fi rst as shown above. Improper battery insertion may result a loose battery and poor battery connection. For service on this or any other REED product or information on other REED products, contact REED Instruments at info@reedinstruments.com. reedinstruments REED-Direct.ca INSTRUMENTS info@REED-Direct.ca... - Page 8 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ reedinstruments REED-Direct.ca INSTRUMENTS INSTRUMENTS info@REED-Direct.ca 1.800.561.8187...
