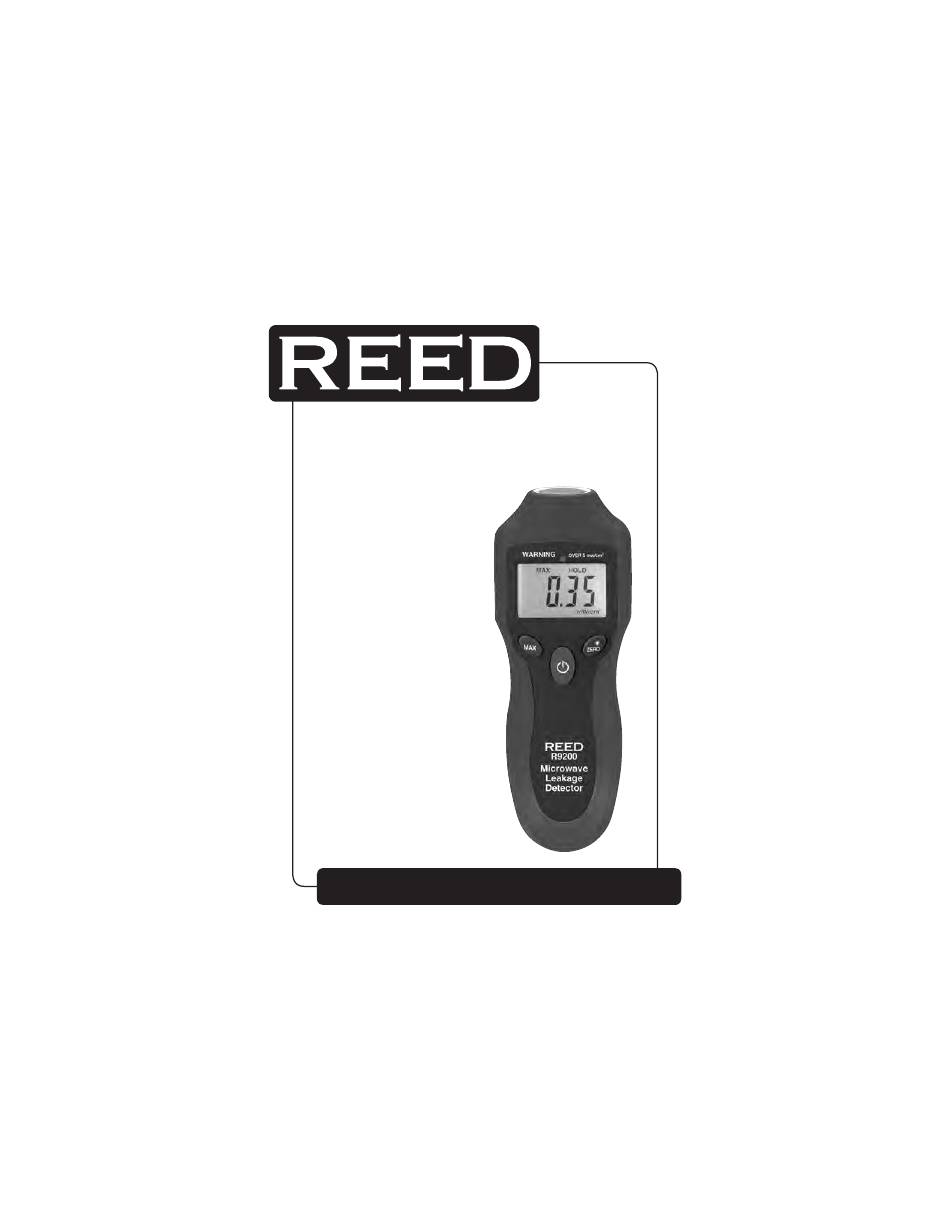

- Page 1 INSTRUMENTS R9200 Model Microwave Leakage INSTRUMENTS Detector Instruction Manual reedinstruments REED-Direct.com info@REED-Direct.com 1.888.610.7664...
- Page 2 Specifications Measuring Range: 0 to 9.99 mW/cm² Accuracy: ±1mW/cm² Resolution: 0.01 mW/cm² Operating Frequency: 2.4GHz Display: 4-digit LCD Backlit Display: Alarm: Audible (buzzer) and Visual (LED Light) Alarm Limit: 5 mW/cm² Max Hold: Zero Button: Response Time: 2x per second Power Supply: 9V Battery Low Battery Indicator: Product Certifications: Operating Temperature: 32 to 122°F (0 to 50°C) Storage Temperature: 14 to 140°F (-10 to 60°C) Operating Humidity Range: 10 to 90% Dimensions: 6.3 x 2.4 x 1.7" (160 x 60 x 42 mm) Weight: 5.3 oz (151 g) reedinstruments INSTRUMENTS INSTRUMENTS REED-Direct.com info@REED-Direct.com 1.888.610.7664...
- Page 3 Operating Instructions 1. Install the 9V battery. 2. Press the power button. 3. Press and hold the light/zero button to adjust to zero. 4. Take measurements. 5. Press the power button to turn the instrument off. For service or information on this or any other REED product, contact REED Instruments at info@reedinstruments.com. reedinstruments INSTRUMENTS INSTRUMENTS REED-Direct.com info@REED-Direct.com 1.888.610.7664...
- Page 4 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ reedinstruments INSTRUMENTS INSTRUMENTS REED-Direct.com info@REED-Direct.com 1.888.610.7664...
