Summary of Contents for REED R9090

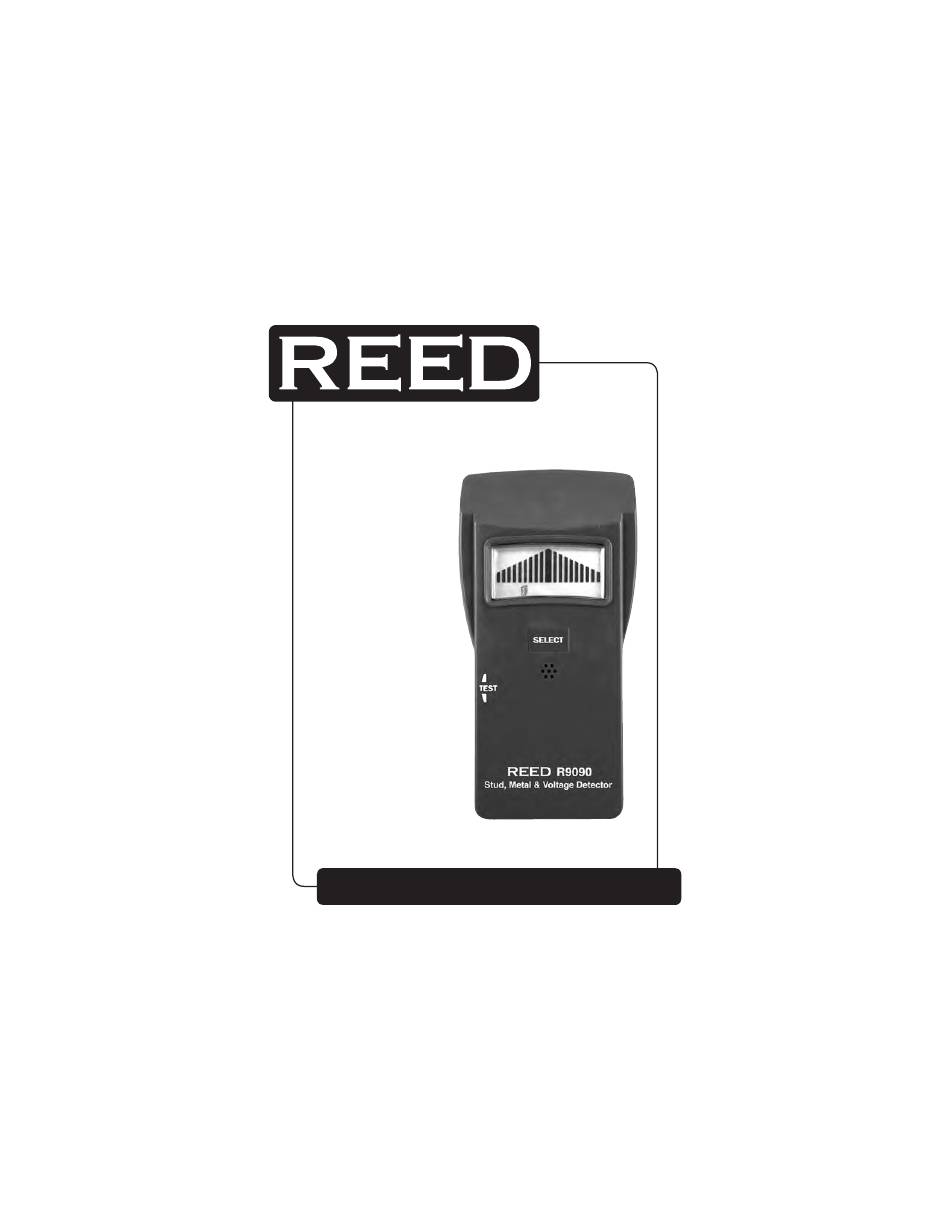

- Page 1 INSTRUMENTS R9090 Model Stud, Metal and Voltage INSTRUMENTS Detector Instruction Manual reedinstruments GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Table Of Contents
Table of Contents Safety ......................3 Features ...................... 3 Applications ....................4 Specifications ..................... 4 Instrument Description ................5 Display Description ..................5 Operating Instructions ................6-9 Stud Scan ..................... 6-7 Metal Scan ....................7 AC Scan ....................8 Operating Tips ..................9 Conventional Construction .............. -
Page 3: Safety
Safety The following warnings must be followed to avoid injury. • DO NOT remove the warning labels • Shielded wires or live wires in metal conduits, casings, metal walls or thick dense walls will not be detected • Use caution when nailing, cutting or drilling in walls, ceiling and floors that may contain wiring or pipes near the surface • When working near ac electrical wires, always turn off the wires’ power • Depending on the proximity of electrical wiring or pipes to the wall surface, the unit may detect them in the same manner as studs. -
Page 4: Applications
Applications • Hang household items (mirrors, pictures and shelves) • Trace hot wires behind building materials • Locate metallic pipes in concrete Specifications Detection Depth Stud: Up to 0.98" (25mm) Metal: Up to 2.56" (65mm) Voltage: Up to 1.96" (50mm) General Specifications Display: LCD Display with bargraph Auto Power Off: Yes (after 20 seconds) Low Battery Indicator: Power Supply: 9V Battery Product Certifications: Operating Temperature: 19.4 to 104°F (-7 to 40°C) Storage Temperature: 4 to 122°F (-20 to 50°C) Dimensions: 6.3 x 3.2 x 1.3" (159 x 82 x 32mm) Weight: 7.2oz (203g) Optional Accessories: Soft Carrying Case (CA-05A) reedinstruments INSTRUMENTS INSTRUMENTS GlobalTestSupply... -
Page 5: Instrument Description
Instrument Description Display Description reedinstruments INSTRUMENTS INSTRUMENTS GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 6: Operating Instructions
Operating Instructions Stud Scan • Select STUD SCAN mode and place the instrument against the wall. Press and hold TEST button until the unit gives two short beeps. Slowly move the unit sideways across the wall while pressing and holding the TEST button. -
Page 7: Metal Scan
• We recommend carrying out metal/voltage detection to make sure the detected batten or wood stud is not a piece of pipe or cable. Please note that some small securing screws or nails may be detected. • To avoid disturbance, keep your other hand away from the unit when in use. Metal Scan • Select METAL SCAN mode. While holding this unit away from any metal objects, hold the TEST button until the unit gives two short beeps. -
Page 8: Ac Scan
AC Scan For maximum sensitivity, begin by placing this unit at a known position away from hot wiring. • Select AC SCAN mode. While holding this unit away from any metal objects, hold the TEST button until the unit gives two short beeps. Place it on the wall and slowly move it across the surface. • When the center bar appears, stop moving. It means this unit detects an edge of a metal object. Mark this spot at the groove. • Continue moving in the same direction until the center bar turns off, and then, still holding the button, reverse direction and locate the other edge. -
Page 9: Operating Tips
Operating Tips Conventional Construction Doors and windows are commonly constructed with additional studs and headers for added stability. This unit detects the edge of these double studs and solid headers and emits and holds an audio signal as it crosses over them. -
Page 10: Auto Power Off
Note: Detection depth and edge detection may vary due to moisture content of materials, wall texture, paint, etc. Battery Replacement When the “ ” symbol appears, it means that the battery is low and should be replaced. Remove the battery door, connect a 9V battery to cable and place inside. Replace battery door. For service on this or any other REED product or information on other REED products, contact REED Instruments at info@reedinstruments.com reedinstruments INSTRUMENTS INSTRUMENTS GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... - Page 11 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ reedinstruments INSTRUMENTS INSTRUMENTS GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 12 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ reedinstruments INSTRUMENTS INSTRUMENTS GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
