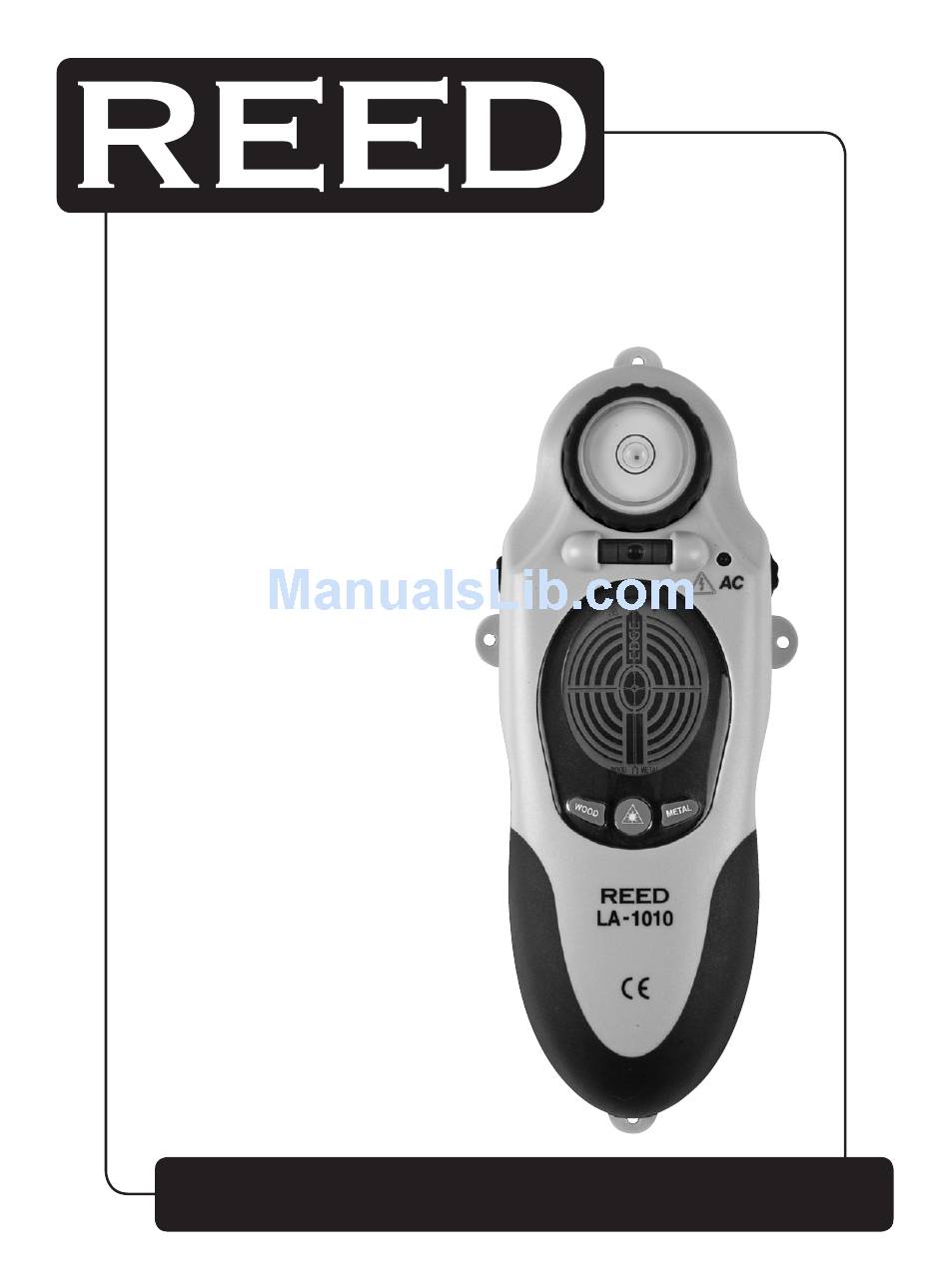

- Page 1 LA-1010 Model Stud/Metal/AC Voltage Detector Instruction Manual reedinstruments GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Table Of Contents
Detecting Metal Studs ..............6 Detecting Live Wires ..............6 Adjustment Feet ................6 Operating Tips .................6-7 Battery Replacement ..............7 For service on this or any other REED product or information on other REED products, contact REED Instruments at info@reedinstruments.com reedinstruments GlobalTestSupply www. -
Page 3: Safety
Safety The following warnings must be followed to avoid injury. • DO NOT remove warning labels • DO NOT use optical tools such as a transit to view laser beam as serious eye injury could result • DO NOT project the laser beam directly into the eyes of others •... -
Page 4: Features
Features • Stud/metal/AC voltage finder with laser line level • Select normal scan, detect up to 3/4” depth, or deep scan, detection up to 1-1/2” depth • 180° pivoting laser plane with level and plumb vials • Thumb dial adjustment feet for leveling the laser •... -
Page 5: Operating Instructions
Operating Instructions Calibration Calibrate this unit on a wall before scanning for wood or metal studs. Note: Before you calibrate be sure to not place this unit directly over a stud, dense material (such as metal), wet areas, or newly painted areas as this will prevent the unit from calibrating properly. -
Page 6: Detecting Wood Studs
3. Use the indicator line to mark the stud edge with a pencil. 4. Continue sliding past the stud, when the indicator turns off and the unit stops beeping, the other edge has been detected. 5. Double-check the stud’s location by coming back from the other direction (be sure to make additional markings). -
Page 7: Battery Replacement
3. Be sure to replace the battery immediately with a new 9-volt battery when low battery indicator is on. For service on this or any other REED product or information on other REED products, contact REED Instruments at info@reedinstruments.com reedinstruments GlobalTestSupply www. - Page 8 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ reedinstruments GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
