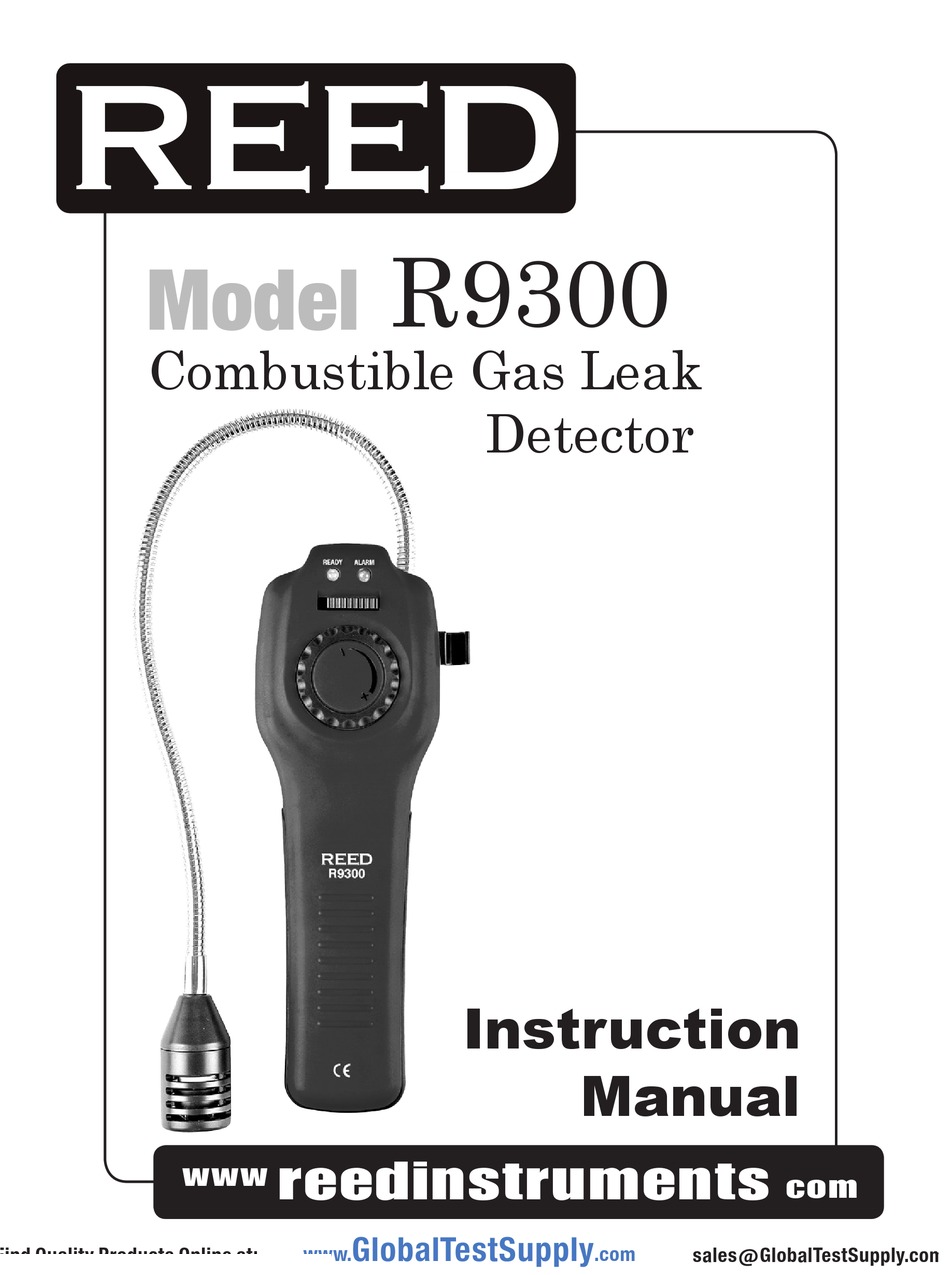

- Page 1 Rich Black - 20/20/20/100 R9300 Model Combustible Gas Leak Only if you REALLY need them: Detector Instruction Manual reedinstruments GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Table Of Contents
Table of Contents Safety ...................... 2-3 Features .......................3 Instrument Description ................3 Specifications ....................4 Operating Instructions .................5 Battery Replacement ...................6 Sensor Replacement ...................6 Safety Before using this instrument, read all safety information carefully. In this manual the word “WARNING” is used to indicate conditions or actions that may pose physical hazards to the user. -
Page 3: Features
As a matter of routine, ventilate the area you plan to work in. Ventilation will help ensure the gas does not accumulate in large volume where it can attain its Lower Explosive Limit (LEL). Lower Explosive Limit (LEL): The point at which a combustible gas, when mixed with air, has developed the minimum concentration to combust when exposed to a source of ignition. -
Page 4: Specifications
Specifications Detected Gases: Methane, Natural Gas, Benzene, Ethane, Propane, Butane, Acetone, Alcohol, Ammonia, Gasoline, Jet Fuel, Industrial Solvents, Lacquer, Paint Thinner, Naptha Sensitivity 50 ppm methane Sensor Type Heated semiconductor gas sensor Alarm Audible (buzzer) and Visual (LED indicator) Alarm Limit Set @ 10% LEL for Methane (Can be calibrated for other concentrations or gases up to 40% LEL) -
Page 5: Operating Instructions
Operating Instructions Switch on the Combustible Gas Leak Detector by sliding the ON/OFF but- ton and the READY light is glowing. The gas leak detector runs through a one-minute warm-up and self-zeroing sequence when it is first turned on in fresh air. The alarm of the instrument may be very loud without contact with any gas, that is caused the initial preset sensitivity. -
Page 6: Battery Replacement
3 Yellow Red - 10/100/100/5 5 Red Yellow - 0/27/100/0 3 Yellow For service on this or any other REED product or information on other Blue - 100/80/30/5 4 Blue REED products, contact REED Instruments at info@reedinstruments.com. reedinstruments Rich Black -... - Page 7 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 4 Blue Yellow - 0/27/100/0 3 Yellow Red - 10/100/100/5 ________________________________________________ 5 Red Yellow - 0/27/100/0 3 Yellow Blue - 100/80/30/5 4 Blue reedinstruments Rich Black -...
- Page 8 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 4 Blue Yellow - 0/27/100/0 3 Yellow Red - 10/100/100/5 ________________________________________________ 5 Red Yellow - 0/27/100/0 3 Yellow Blue - 100/80/30/5 4 Blue reedinstruments Rich Black -...
