Mastech MS6503 Instruction Manual

Humidity temperature meter
Hide thumbs Also See for MS6503:
Table of Contents

Advertisement

Quick Links

Download this manual
HUMIDITY TEMPERATURE METER
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS6503 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mastech MS6503

Summary of Contents for Mastech MS6503

  • Page 1 HUMIDITY TEMPERATURE METER INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    HUMIDITY TEMPERATURE METER INSTRUCTION MANUAL CONTENTS CONTENTS TITLE PAGE SAFETY INFORMATION … … … … … … … … … … … … … … … … … … … … PRELIMINARY … … … … … … … … … … … … … … … … … … … … DURING USE …...
  • Page 3 HUMIDITY TEMPERATURE METER INSTRUCTION MANUAL CONTENTS ELECTRICAL SPECIFICATIONS … … … … … … … … … … … … … … … … … … … … OPERATING INSTRUCTION … … … … … … … … … … … … … … … … … … … … POWER-UP …...
  • Page 4 HUMIDITY TEMPERATURE METER INSTRUCTION MANUAL CONTENTS ENCLOSED SOFTWARE PCLINK … … … … … … … … … … … … … … … … … … … … ILLUMINATION FOR INSTALLATION … … … … … … … … … … … … … … … … … … … … INSTALLATION OF PCLINK …...

  • Page 5: Safety Information

    HUMIDITY TEMPERATURE METER INSTRUCTION MANUAL SAFETY INFORMATION 1. SAFETY INFORMATION Read the following safety information carefully before attempting to operate or service the meter. Use the meter only as specified in this manual, otherwise, the protection provided by the meter may be impaired. With proper use and care, your digital meter will provide you satisfactory service for years.

  • Page 6: Symbols

    HUMIDITY TEMPERATURE METER INSTRUCTION MANUAL SAFETY INFORMATION condensation. 1.2.4 Don't touch or manipulate the sensor. 1.2.5 Don't expose the sensor to direct light, this causes a false reading. 1.2.6 Don't expose the sensor to static electricity. 1.2.7 Never dip the sensor directly in the water or impregnant. 1.3 SYMBOLS Comply with EMC Important safety information, refer to the operating manual.
  • Page 7 HUMIDITY TEMPERATURE METER INSTRUCTION MANUAL SAFETY INFORMATION 1.4.4 Always set the power switch to the OFF position when the meter is not in use. 1.4.5 If the meter is to be stored for a long period of time, the batteries should be removed to prevent damage to the unit.

  • Page 8: Description

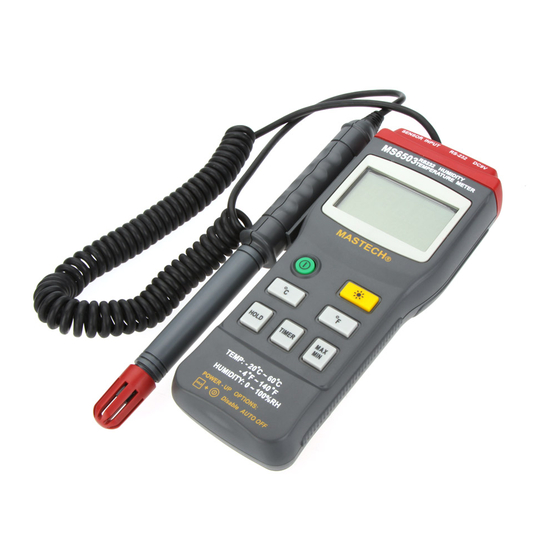

    HUMIDITY TEMPERATURE METER INSTRUCTION MANUAL DESCRIPTION 2. DESCRIPTION - This meter is a digital Humidity/Temperature meter for use a polymer capacitive and semiconductor sensor. - This meter is a portable professional measuring instrument with large LCD and back light for easily reading. - This meter can be connected with the computer for large recording of measuring data, analysis and printing, etc.
  • Page 9 HUMIDITY TEMPERATURE METER INSTRUCTION MANUAL DESCRIPTION (10) (11) (12) (13) (14) (15) - 5 -...
  • Page 10 HUMIDITY TEMPERATURE METER INSTRUCTION MANUAL DESCRIPTION RS-232 Digital output connector ⑷ Tripod connector ⑸ Hang Ring ⑹ LCD display ⑺ “ ” O N/OFF button ⑻ → → → → “ ” B ack light button ⑼ → → → → “...
  • Page 11 HUMIDITY TEMPERATURE METER INSTRUCTION MANUAL DESCRIPTION 2.2 BUTTONS ELUCIDATION Button • This Button is used to the switch of power. Button • This button is used to the switch of back light. Button ℃ ℃ ℃ ℃ • This button is used to transform range.

  • Page 12: Symbol Definition

    HUMIDITY TEMPERATURE METER INSTRUCTION MANUAL DESCRIPTION 2.3 SYMBOL DEFINITION Centigrade indication. ℃ ℃ ℃ ℃ Fahrenheit indication. ℉ ℉ ℉ ℉ %RH Relative Humidity indication. MAX The Maximum value is displayed. MIN The Minimum value is displayed. This indicates auto power off is enabled. This indicates that the display data is being held.

  • Page 13: Specifications

    HUMIDITY TEMPERATURE METER INSTRUCTION MANUAL SPECIFICATIONS 3. SPECIFICATIONS Accuracy is specified for a period of year after calibration and at 18 to 28 to 82 with relative ℃ ℃ （ ℉ ℉ ） humidity to 75%. 3.1 GENERAL SPECIFICATIONS 3.1.1 Numerical Display: 4 digital Liquid Crystal Display. 3.1.2 Measuring method: Dual-slope integration A/D converter 3.1.3 Temperature modulus: <...
  • Page 14 HUMIDITY TEMPERATURE METER INSTRUCTION MANUAL SPECIFICATIONS Temperature ~ 60 , 14 ~ 140 (non-condensing) → ℃ ℃ ℉ ℉ 3.1.8 Power Requirements: Battery One 9V battery 006p or IEC 6F22 or NEDA1604 → AC adapter 9VDC /30mA minimum Plug Diameter: Ø 3.5 mm x 1.35mm →...

  • Page 15: Electrical Specifications 1

    HUMIDITY TEMPERATURE METER INSTRUCTION MANUAL SPECIFICATIONS 3.2 ELECTRICAL SPECIFICATIONS Circumstance Temperature: 23±5 , Relative Humidity: < 75% ℃ 3.2.1 Humidity sensor: HIH-3610 H oneywell （ ） 3.2.2 Temperature sensor: LM335Z N ational Semiconductor Corporation （ ） Test Conditions Parameter Operating Output Voltage =1mA 2.98V ℃...
  • Page 16 HUMIDITY TEMPERATURE METER INSTRUCTION MANUAL SPECIFICATIONS 3.2.3 Humidity Range Resolution Accuracy 0 ~ 100%RH 0.1%RH 2 .5%RH at 25 ± ℃ 3.2.4 Temperature Range Resolution Accuracy ~ +60 ℃ ℃ ℃ ± ℃ ~ +140 1 .4 ℉ ℉ ℉ ±...

  • Page 17: Operating Instruction 1

    HUMIDITY TEMPERATURE METER INSTRUCTION MANUAL OPERATING INSTRUCTION 4. OPERATING INSTRUCTION 4.1 POWER-UP Press the “ ” button to turn the Humidity Temperature Meter ON or OFF. 4.2 HUMIDITY MEASUREMENT For measurement, place the sensor probe in the tested environment. NOTE: •...

  • Page 18: Selecting The Temperature Scale 1

    HUMIDITY TEMPERATURE METER INSTRUCTION MANUAL OPERATING INSTRUCTION NOTE: • Measurement Range: -20 ~ +60 ~ +140 ℃ ℃ ， ℉ ℉ 。 • Operating Environment: Relative humidity: 0 to 85%RH, Temperature: 0 ~ 40 , 32 ~ 104 (without ℃ ℃...

  • Page 19: Read Hold

    HUMIDITY TEMPERATURE METER INSTRUCTION MANUAL OPERATING INSTRUCTION the memory and the reading is the present temperature and humidity. 4.5.4 Press "MAX MIN" again, MAX will go back. One may press "MAX MIN" to circulate the display mode among these options. NOTE: When the meter is under "MAX MIN"...

  • Page 20: Timer Operation 1

    HUMIDITY TEMPERATURE METER INSTRUCTION MANUAL OPERATING INSTRUCTION 4.7 TIMER OPERATION One may start the timer by press the "TIMER" button. The counting can be stopped or continued by pressing it again. When the counting exceed 59min 59sec, the time scale will be changed to hours and minutes. The counting can be reset by press and hold "TIMER"...

  • Page 21: Auto Power Off 1

    HUMIDITY TEMPERATURE METER INSTRUCTION MANUAL OPERATING INSTRUCTION You need not replace the battery. When you use normally (back light is not using), “ ” will not show up. You need replace it till “ ”show again. 4.9 AUTO POWER OFF By default, when the meter is powered on, it is under auto power off mode The meter will power itself off after 30 minutes if no key operation and no RS232 communication.

  • Page 22: Use The Tripod Connector 1

    HUMIDITY TEMPERATURE METER INSTRUCTION MANUAL OPERATING INSTRUCTION 4.11.2 Turn the unit off. Remove the battery cover. 4.11.3 Replace the exhausted battery with a new one. 4.11.4 Put the battery cover as its origin. 4.12 USE THE TRIPOD CONNECTOR 4.12.1 If needed, the meter can be fixed on the tripod. 4.12.2 The meter also can be hanged up for use.

  • Page 23: Illumination For Installation 1

    HUMIDITY TEMPERATURE METER INSTRUCTION MANUAL PCLink (ENCLOSED SOFTWARE) 5. PCLink (ENCLOSED SOFTWARE) 5.1 ILLUMINATION FOR INSTALLATION Connect software PCLink to your PC, then connect its interface to the meter for use. • • • • MINIMUM HARDWARE REQUIREMENTS 486-100MHz minimum or equivalent PC, 16MB memory, 5MB hard disk space minimum.
  • Page 24 HUMIDITY TEMPERATURE METER INSTRUCTION MANUAL PCLink (ENCLOSED SOFTWARE) 5.2 RUN PCLink Click “PCLink” program in program group from TaskBar start menu to run the “ PCLink ” program. MENU and TOOLBAR → ← R ealtime Data Graph Window Both-Way → Control Window ←...
  • Page 25 HUMIDITY TEMPERATURE METER INSTRUCTION MANUAL PCLink (ENCLOSED SOFTWARE) 5.3 Realtime data graph window and Realtime Table window Click , then PCLink will collect data of the meter on graph window and table window in realtime sampling rate time. You can input new sampling rate value on sampling rate edit label (Click Option, Select Sample Rate). 5.4 Refer to instruction for other operation on our Web.

  • Page 26: Accessories 2

    HUMIDITY TEMPERATURE METER INSTRUCTION MANUAL ACCESSORIES 6. ACCESSORIES 6.1 SUPPLIED WITH THE MULTIMETER Battery: 9V, NEDA 1604 or 6F22 One piece ⑴ Sensor Probe Holder One piece ⑵ Carrying bag One piece ⑶ Operating Manual One piece ⑷ 6.2 OPTIONAL ACCESSORIES PCLink 3.5”...
  • Page 27 HYS004972 A0...
