Mastech MS6900 User Manual

MS6900
To Avoid Possible Electric Shock Or
Multi Function Moisture Meter
Personal Injury:
USER'S MANUAL
• Use the Meter only as specified in this manual or the
protection provided by the Meter might be impaired.
• Do not place the Meter near explosive gas or vapor.
• Read the Users Manual before use and follow all
safety instructions.
Limited Warranty And Limitation Of Liability
This MS6900 product from Mastech will be free from
defects in material and workmanship for one year from
the date of purchase. This warranty does not cover
MS6900
fuses, disposable batteries, or damage from accident,
Tember Moisture Meter
neglect, misuse, alteration, contamination, or
abnormal conditions of operation or handling.
Resellers are not authorized to extend any other
warranty on Mastech's behalf. To obtain service during
the warranty period, contact your nearest Mastech
authorized service center to obtain return authorization
information, then send the product to that Service
Center with a description of the problem.
Out of Box
Check the Meter and accessories thoroughly before
Test/Hold
using the Meter. Contact your local distributor if the
Meter or any components are damaged or malfunction.
Unit Meterial
Accessories
MAX
• One Users Manual
MIN
• Two AAA Battery
Safety Information
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRICAL
SHOCK, PRODUCT DAMAGE OR PERSONAL
INJURY, PLEASE FOLLOW THE SAFETY
INSTRUCTIONS DESCRIBED IN THE USER
MANUAL. READ THE USER MANUALS BEFORE
USING THE METER.
WARNING
DO NOT PLACE THE METER IN ANY
ENVIRONMENT OF HIGH PRESSURE, HIGH
TEMPERATURE, DUST, EXPLOSIVE GAS OR
VAPOR. TO ENSURE SAFE OPERATION AND
LIFE OF THE METER, FOLLOW THESE
INSTRUCTIONS
Safety Symbols
Important safety message
Conforms to relevant European
Union directives
01 02
Warning Symbols 6: Do not place the Meter in strong magnetic field, it may
cause false readings.
Risk of danger. Important information. 7: Use only the batteries indicated in the Technical Spec.
Warning
See Users Manual 8: Avoid exploring the battery to humidity. Replace the
batteries as soon as the low battery indicator appears.
Statement identifies conditions and
actions that fail to follow the Hint
Caution
instructions could result false
1: Sensitivity of the Meter toward temperature and
reading, damage the Meter or the
humidity will be lower over time. Please calibrate
equipment under test.
the Meter periodically for best performance
2: Please keep the original packing for future shipping
Suggestions or hints.
Hint
purpose (ex. Calibration)
Using The Meter
1 . Introduction
1.1 Product Description
WARNING
MS6900 is a material moisture, temperature, humidity
TO AVOID ELECTRICAL SHOCK AND INJURY,
all-in-one multi functions Meter. The Meter is ideal for
COVER THE METER WITH PROTECTIVE
measuring moisture of wood and concrete buildings.
COVER WHEN NOT IN USE.
1.2 MS6900 Multi Function Moisture
Caution
Meter Features:
1: Operate the Meter between -10~50 °C (14~122°F).
• Provide temperature, humidity and moisture measuring.
2: Avoid shaking, dropping or taking any kind of impacts
• Measure seven kinds of materials through manual mode.
when using or transporting the Meter.
• Maximum and Minimum Moisture readings.
3: To avoid possible electric shock or personal injury,
• Display Hold.
repairs or servicing not covered in this manual
• LCD Display, moisture bar display.
should be performed only by qualified personnel.
• Units switch.
4: Check the terminals every time before operate the
• Backlight display.
Meter. Do not operate the Meter if the terminals are
• Auto off (when not in use for 10 minutes)
damaged or one or more functions are not working
• Sturdy construction, easy to carry.
properly.
5: Avoid exploring the Meter to direct sunlight to ensure
and extend the life of the Meter.
03
1.3 Components
1.3.1 Figures and Components
1 Terminals Protective Cover.
2 LCD Display
3 On/Off Button:
Press once to turn the
Meter on, press for 1 sec
to turn it off.
4 Temperature/Moisture Switch:
Switch between Temp:
°C/°F and
Moisture: %/WB/TD;
The Meter exit switching 3
mode if "Enter" button 4
is not pressed in 8 seconds.
5
5 Backlight Button
Display Test/Hold Button
6
7 Switch between testing materials
8 Maximum/Minimum Display Button
9 Enter Button.

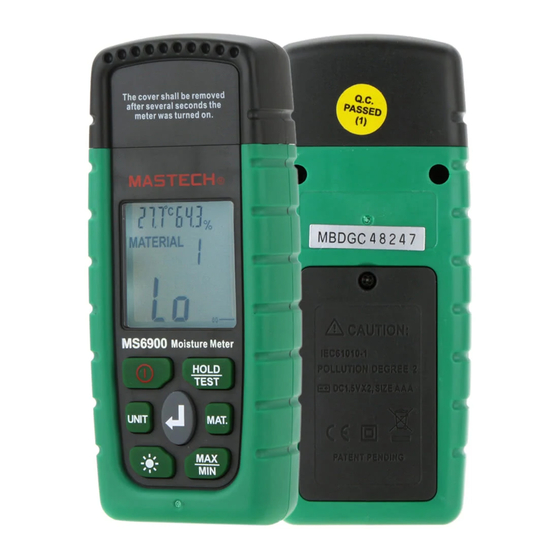

MS6900 Diagram
04 05
