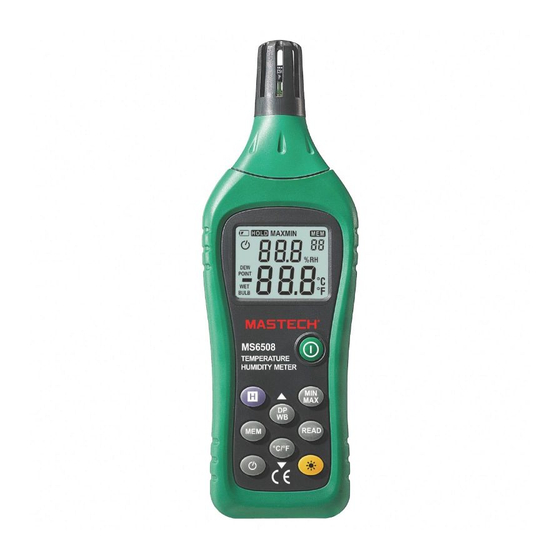

Mastech MS6508 Manual

MS6508
Temperature Humidity Meter
HOLD MAXMIN MEM
DEW
POINT
WET
BULB
MS6508
H
MIN
DP
WB
MEM READ
/
C F
FRONT PANEL
Sensor
Display
screen
HOLD MAXMIN MEM
Power
Dew-point
DEW
POINT
Wet-bulb
WET
BULB
Ambient
temperature
Max-min
MS6508
Data holding Data recall
H MIN
MAX
DP
WB
MEM READ
Data preserving / Backlight
C F
Automatic Unit switch
power-off
01
Brief Introduction
This is a battery meter for measuring relative
humidity and temperature. It can display three types
of temperatures around the sensor's air via several
convenient procedures: The ambient temperature,
the dew-point temperature and the wet bulb
temperature.
02
Display Screen
8 7
6
1
HOLD MAXMIN MEM
2
5
DEW
POINT
4
3 WET
BULB
NO. explanation
1 Low battery
2 Automatic power-off mark
Display wet bulb temperature or
3
dew-point temperature
4 Temperature measurement unit
5 Relative humidity measurement unit
6 MEM, RAM position number
7 Max-min
Hold function actived.The screen
8
freezes the current reading
03
Operation
Notice
When moving the meter from one atmosphere with
extreme temperature or humidity to another, you need
to wait for its stability.
Press to start the meter and read the measurements
displayed by °C or °F. Press to switch.
/
C F
Dewpoint & Wetbulb
When starting the meter, the ambient temperature
appears on the screen. To obtain DP, press a first time
DP
, and press DP for a second time, WB is switched.
WB
WB
Press DP a third time, to get the ambient temperature
WB
back. A corresponding signal will be shown on
the screen indicating DP and WB.
Holding
Hold the button Press H to freeze the current
reading, and stop the meter from displaying
the measurements. When the HOLD (HOLD) function
is actived,the screen displays .To continue reading
HOLD
the mesured value,press HOLD again.
