Extech Instruments MA410T User Manual page 10

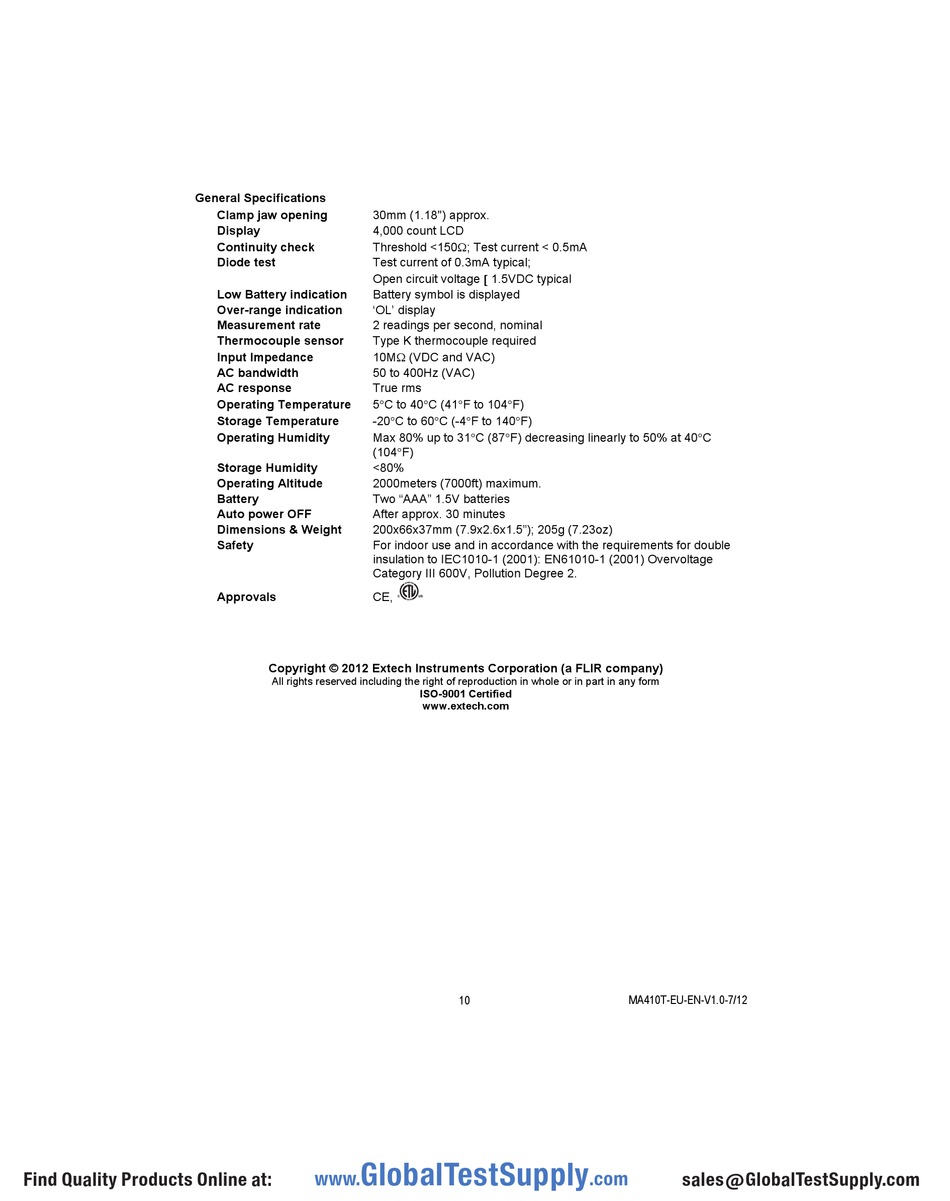

General Specifications
Find Quality Products Online at:
Clamp jaw opening 30mm (1.18") approx.
Display 4,000 count LCD
Continuity check Threshold <150; Test current < 0.5mA
Diode test Test current of 0.3mA typical;
Open circuit voltage  1.5VDC typical
Low Battery indication Battery symbol is displayed
Over-range indication 'OL' display
Measurement rate 2 readings per second, nominal
Thermocouple sensor Type K thermocouple required
Input Impedance 10M (VDC and VAC)
AC bandwidth 50 to 400Hz (VAC)
AC response True rms
Operating Temperature 5C to 40C (41F to 104F)
Storage Temperature -20C to 60C (-4F to 140F)
Operating Humidity Max 80% up to 31C (87F) decreasing linearly to 50% at 40C
(104F)
Storage Humidity <80%
Operating Altitude 2000meters (7000ft) maximum.
Battery Two "AAA" 1.5V batteries
Auto power OFF After approx. 30 minutes
Dimensions & Weight 200x66x37mm (7.9x2.6x1.5"); 205g (7.23oz)
Safety For indoor use and in accordance with the requirements for double
insulation to IEC1010-1 (2001): EN61010-1 (2001) Overvoltage
Category III 600V, Pollution Degree 2.
Approvals CE,
