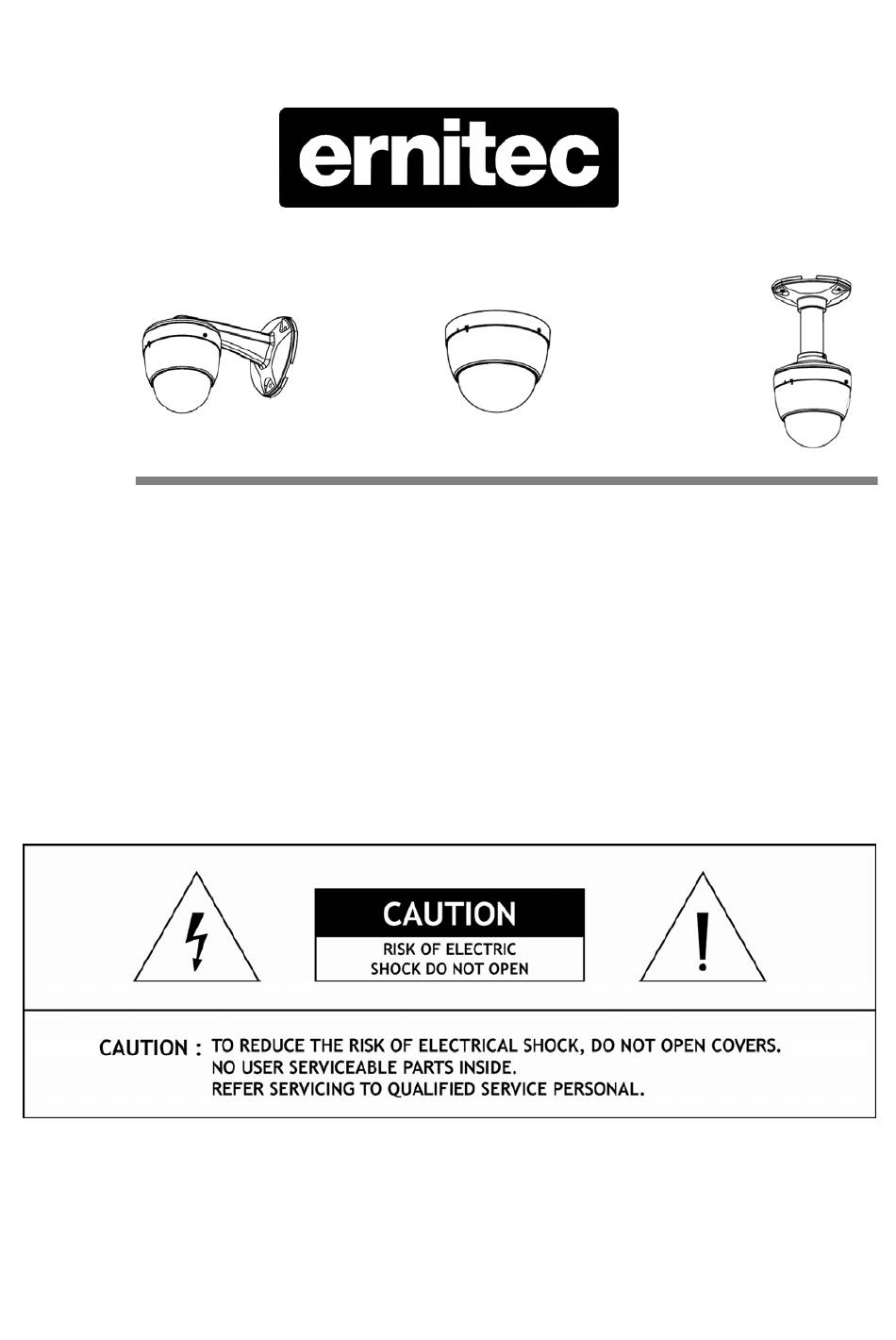

- Page 1 INSTRUCTION MANUAL (3810-0132D) Ver 1.0 Indoor Mini Speed Dome Camera Series www.ernitec.com...
- Page 2 To insure proper mounting, follow the manufacturer's instructions and use only mounting accessories recommended by manufacturer. 6. Power source This product should be operated only from the type of power source indicated on the marking label. www.ernitec.com...
-
Page 3: Table Of Contents
Installation using Pendant Mount Bracket ..…………………………………………………………………….. Installation using Wall Mount Bracket ……………………………………………………………………………… Cabling ………………………………………………………………………………………………………………… 3. Operation Check points before Operation …………………………………………………………………………………….. Preset and Pattern Function Pre-Check …………………………………………………………………………… Starting OSD Menu …………………………………………………………………………………………………… Reserved Preset ………………………………………………………………………………………………………. Preset ………………………………………………………………………………………………………………..Swing ………………………………………………………………………………………………………………..Pattern ..……………………………………………………………………………………………………………..Group ………………………………………………………………………………………………………………..www.ernitec.com... - Page 4 For jog operation using a controller, since ultra slow speed 0.05°/sec can be reached, it is very easy to locate camera to desired target view. Additionally it is easy to move camera to a desired position with zoom- proportional pan/tilt movement. www.ernitec.com...
-
Page 5: Introduction
To reject external electric noise and shock perfectly, alarm sensor Input is decoupled with photo coupler. The signal range of sensor input is from DC 5.0 to 12.0 volts to adopt various applications. If an external sensor is activated, camera can be set to move to the corresponding Preset position. Product & Accessories www.ernitec.com... -
Page 6: Parts Name & Functions
1. INTRODUCTION Indoor Mini Speed Dome Camera Product & Accessories Options ● Pendant Mount Bracket ● Wall Mount Bracket Parts Name & Functions www.ernitec.com... -
Page 7: Dip Switch Setup
During installation, Power, Video, Communication, Alarm Input cables are connected on to this cabling terminal block. DIP Switch Adjusts camera ID and protocols. DIP Switch Setup Before you install the camera, you should set the DIP switches to configure the camera ID, communication protocol. www.ernitec.com... - Page 8 Do not use 0 as camera ID . Factory default of Camera ID is 1. If you want to control a certain camera, you must match the camera ID with Cam ID setting of DVR or Controller. Communication Protocol Setup www.ernitec.com...
-
Page 9: Direct Installation On The Ceiling
The camera may not operate correctly if multiple cameras are connected and controlled. In this case, set the termination switch of the controller and the last connected camera to ON and the switch of other cameras is OFF. Ex) Using the Terminating Resistance Direct Installation on the Ceiling www.ernitec.com... -
Page 10: Installation Using Pendant Mount Bracket
④ Insert the main body into the surface mount bracket blocks to main unit. with the molding lines on each part being aligned and turning clockwise. ⑤ Insert the fixing screw tightly and detach the protection vinyl from dome cover. Installation using Pendant Mount Bracket www.ernitec.com... - Page 11 ③ Wire cables to terminal block and connect the terminal ④ Insert the main body into the pendant mount bracket blocks to main unit. with the molding lines on each part being aligned and turning clockwise. www.ernitec.com...
-
Page 12: Installation Using Wall Mount Bracket
Installation using Wall Mount Bracket ① Screw wall mount bracket to wall with 3 screws. ② Detach the marked part from the rubber gasket and srew the mounting base to the wall mount bracket with fixing screws. You can use “Guide Pattern" for www.ernitec.com... -
Page 13: Cabling
④ Insert the main body into the wall mount bracket with blocks to main unit. the molding lines on each part being aligned and turning clockwise. ⑤ Insert the fixing screw tightly and detach the protection vinyl from dome cover. Cabling www.ernitec.com... - Page 14 AC 17V ~ 29V 0.8 A RS-485 Communication For PTZ control, connect this line to keyboard and DVR. To control multiple cameras at the same time, RS- 485 communication lines of them is connected in parallel as shown below. www.ernitec.com...
- Page 15 Network Connection (Reserved for network model) Notice) Network model is now preparing. NETWORK 1 Connect with LAN cable. If LAN cable is not connected properly, This product can not be operate. NETWORK 2 (Reserved for supplier.) DO NOT CONNECTED ANY DEVICE. www.ernitec.com...
- Page 16 Open and Normal. If sensor type is not selected properly, the alarm can be activated reversely. Normal Open Output Voltage is high state when sensor is activated Normal Close Output Voltage is high state when sensor is not activated www.ernitec.com...
-
Page 17: Operation
<Set Pattern> Input [Pattern Number] and press [Pattern] button for more than 2 seconds. If controller or DVR has no pattern button or function, use shortcut keys with preset numbers. For more information, refer to “Reserved Preset” in this manual. www.ernitec.com... -
Page 18: Starting Osd Menu
Label should be blank and "Camera Adjust" should be set to "GLOBAL" as default. All characteristics can be set up in OSD menu. Set Preset <Set Preset> [1~128] Run Preset <Go Preset> [1~128] Delete Preset To delete Preset, use OSD menu. www.ernitec.com... -
Page 19: Swing
Run Swing Method 1) <Run Pattern> [Swing NO.+10] ex) Run Swing 3 : <Run Pattern> [13] Method 2) <Go Preset> [Swing NO + 140] ex) Run Swing 3 : <Go Preset>[143] Delete Swing To delete Swing, use OSD menu. www.ernitec.com... -
Page 20: Pattern
Method 2) OSD Using OSD Menu: See the section “How to use OSD Menu”. Method 1) <Run Pattern> [Pattern NO.] ex) Run Pattern 2 : <Run Pattern> [2] Run Pattern Method 2) <Go Preset> [Pattern NO+130] ex) Run Pattern 2 : <Go Preset>[132] To delete Pattern, use OSD menu. Delete Pattern www.ernitec.com... -
Page 21: Group
Set Group Run Group Method 1) <Run Pattern> [Group NO.+20] ex) Run Group 7 : <Run Pattern> [27] Method 2) <Go Preset>[Group NO+150] ex) Run Group 7 : <Go Preset>[157] Delete Group To delete Group, use OSD menu. Other Functions www.ernitec.com... -
Page 22: Osd Display Of Main Screen
Focus data is memorized in each preset in advance and camera calls focus data in correspondence with presets as soon as camera arrives at a preset. It should shorten time to get focuses. Focus mode changes to Auto Focus mode automatically when jog operation starts. OSD Display of Main Screen www.ernitec.com... -
Page 23: General Rules Of Key Operation For Menu
If an Input point is OFF state, '-' will be displayed. Ex) Point 2 & 3 of inputs are ON, OSD will show as below I:-23- Image Flip Shows that images are currently reversed by Auto Flip Function. General Rules of Key Operation for Menu www.ernitec.com... -
Page 24: Main Menu
This menu defines Enable/Disable of OSD display on Main Screen. If an item is set to be AUTO, the item is displayed only when the value of it is changed. Camera ID [ON/OFF] PTZ Information [ON/OFF/AUTO] www.ernitec.com Action Title [ON/OFF/AUTO] Preset Label [ON/OFF/AUTO]... -
Page 25: Privacy Zone Mask Setup
4. MENU Indoor Mini Speed Dome Camera Compass Direction Setup Set North to assign compass direction as criteria. Move camera and press NEAR button to save. Privacy Zone Mask Setup www.ernitec.com... -
Page 26: Zoom Camera Setup
Move camera to area to mask. Then the menu to adjust mask size will be displayed. Privacy Zone Size Adjustment Adjust mask size. Use joystick or arrow buttons to adjust mask size. ←→ (Left/Right) Adjusts mask width. ↑↓ (Up/Down) Adjusts mask height. Zoom Camera Setup www.ernitec.com... - Page 27 AC power. Video can be fluctuated after setting is changed. White Balance Setup WB Mode [AUTO/MANUAL] In Manual mode, Red and Blue level can be set up manually Red Adjust [10~60] Blue Adjust [10~60] Auto Exposure Setup www.ernitec.com...
-
Page 28: Motion Setup
1/100 sec. for NTSC and 1/120 for PAL. [OFF/NORMAL/HIGH] Enhances image brightness automatically in case that luminance level of image signal is too low. SSNR [OFF/LOW/MIDDLE/HIGH] Enhances images by deducting noises when gain level of images is too high. Motion Setup www.ernitec.com... - Page 29 As soon as camera stops at preset end point, camera starts displaying live images which it gets at preset end point. This function availability should different by models. Parking Action Setup www.ernitec.com...
-
Page 30: Preset Setup
Alarm input. Preset Setup Preset Number [1~128] If a selected preset is already defined, www.ernitec.com camera moves to pre-defined position and preset characteristics such as Label and Relay Outputs show on monitor. If a selected preset is not defined, “UNDEFINED”... - Page 31 4. MENU Indoor Mini Speed Dome Camera Edit Preset Scene www.ernitec.com...
-
Page 32: Swing Setup
"Cancel" and press NEAR key. Swing Setup Swing Number [1~8] Selects Swing number to edit. If a selected www.ernitec.com Swing has not defined, "NOT USED" is displayed in 1st Position and 2nd Position 1st Position [PRESET 1~128]... -
Page 33: Pattern Setup
SWING SETUP ------------------------ SWING NO. 1ST POS. PRESET5 2ND POS. NOT USED UNDEFINED Pattern Setup Pattern Number [1~4 ] Selects Pattern number to edit. www.ernitec.com If a selected pattern number is not defined, "UNDEFINED" will be displayed under selected pattern number. -
Page 34: Group Setup
Maximum 1200 communication commands can be stored in a pattern. ③ To save data and exit, press NEAR key. To cancel recording and delete record data, press FAR key. Group Setup www.ernitec.com... - Page 35 [NONE/PRESET/SWING/PATTERN] DWELL [0 second ~ 4 minutes] Sets Dwell Time between functions Option. It should be preset speed when preset is set in Action. It should be the number of repeat when Pattern or Swing is selected in Action www.ernitec.com...
- Page 36 ②). Move cursor UP/DOWN to select Action number and repeat Step ② ~ Step ④ to edit selected Group. ⑥ After finishing setting up all Actions, press FAR key to exit. Then cursor should be moved to “SAVE”. Press NEAR key to save data. www.ernitec.com...
-
Page 37: System Initialize
Power Up Action SSNR MIDDLE Auto Flip SENS-UP AUTO (4 Frame) Jog Max Speed 120°/sec User Edit Data Jog Direction INVERSE Preset 1~128 Undefined Freeze In Preset Swing 1~8 Undefined Park Action Pattern 1~4 Undefined Alarm Action Group 1~8 Undefined www.ernitec.com... -
Page 38: Specifications
∅147.5 × 141(H) mm Housing : Weight about 1 Kg Operating Temp. 0°C ~ 40°C * Specifications of this product can be subjected to change without notice. Wall Mount ** Check the voltage and current capacity of rated power carefully. www.ernitec.com... -
Page 39: Dimension
5. SPECIFICATIONS Indoor Mini Speed Dome Camera Dimension Main Unit & Surface Mount Bracket Ceiling Mount Bracket www.ernitec.com... - Page 40 5. SPECIFICATIONS Indoor Mini Speed Dome Camera Wall Mount Bracket Unit (mm) www.ernitec.com...
