Summary of Contents for Rainin Pipetman F Series

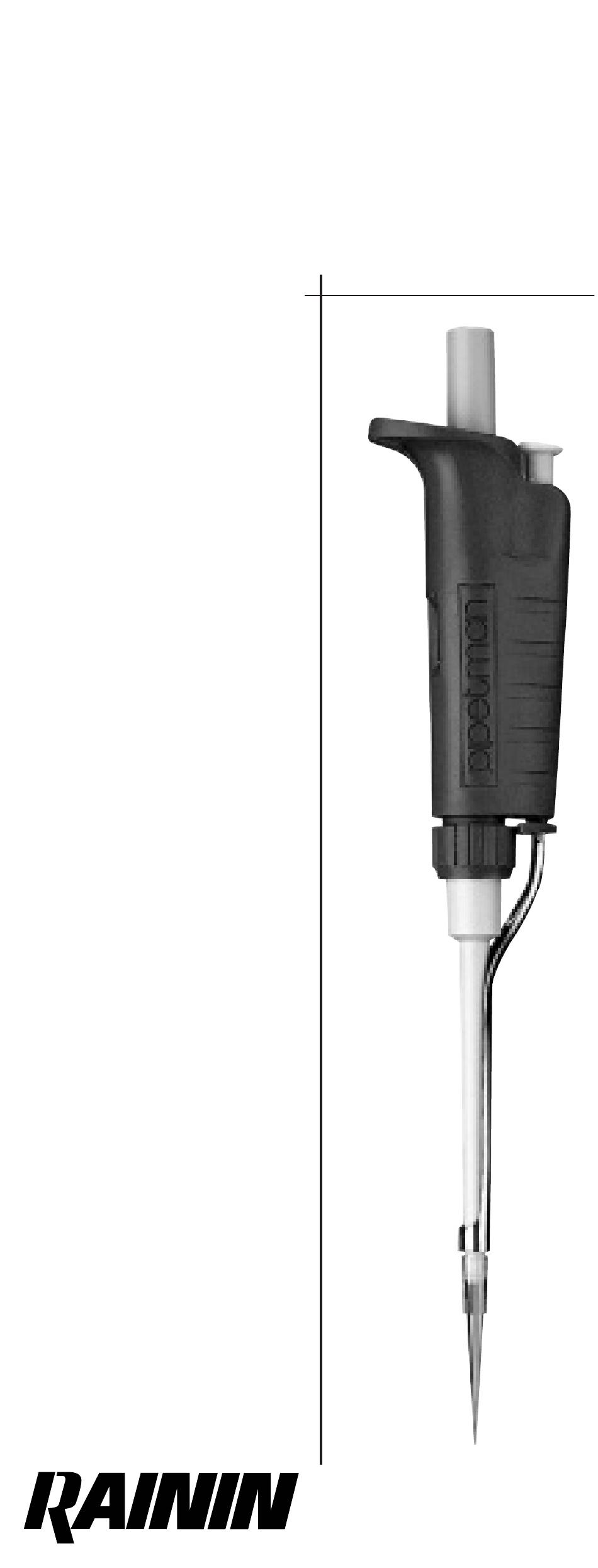

- Page 1 Pipetman ® single-volume microliter pipettes Fixed volumes from 0.1 µL to 10 mL F-200 shown...
-
Page 2: Table Of Contents
Or use e-mail: tech.service@rainin.com Pipetman and Microman are trademarks of Gilson Inc. Rainin is the U.S. distributor for Pipetman products. U.S. and foreign patents pending. ©1982-2000, Rainin Instrument, LLC. Prices and specifications are subject to change without notice. -
Page 3: Description
Description Pipetman-F single-volume microliter pipettes are excep- tionally accurate and highly reproducible when pipetting volumes from 0.1 µL to 10 mL, and offer simple calibra- tion in the laboratory. Accurate compensation for varia- tions in fluid viscosity and density can be performed with the Calibration Key provided with each unit. -
Page 4: Operation
Operation 1. Attach a new disposable tip to the pipette shaft with sufficient force to make a positive seal. F-1MIC F-10MIC use tips for volumes to 10 µL F-200 use tips for volumes to 250 µL F-201 F-1000 use tips for volumes to 1000 µL F-1001 F-5000 use tips for volumes to 5 mL F-5001... -
Page 5: Tip Selection
Too much retention results in poor accuracy and reproducibility. Specified performance is guaranteed only when Rainin disposable tips are used as recommended. Rainin cannot accept responsibility for poor performance resulting from the use of tips from other manufacturers. - Page 6 Note: The indicator display is calibrated with 10 letters, A thru J. The interval between letters (1/10 full revolu- tion) is marked with five subdivisions. The indicator dis- play is read from left to right. For example, E.4 is a set- ting 4/10 of the distance from E to F.
-
Page 7: Pre-Rinsing Recommended
If you need to dedicate Pipetman-F for a particular solu- tion only (oft-repeated tests), you may wish to retain the setting semi-permanently. Simply record the setting and a solution or test code on the supplied label and place it in the indentation at the top of the handle. Then you can tell at a glance that this pipette has been calibrated to dispense the desired volume of a particular solution. -
Page 8: Pipetting Guidelines & Precautions
1. Never invert or lay Pipetman down if liquid is in the tip. 2. Pipette slowly, holding Pipetman < 20° from vertical. 3. Use Rainin aerosol-resistant tips, with an internal filter which acts as a barrier to aerosols and liquids. -
Page 9: Troubleshooting And Repairs
4. If staining and/or corrosion of the piston is evident (due to previously dried sample material), do not use the instrument. Return to Rainin for service. Note: Never grease any Pipetman components (with the exception of the grease seal on models F-5001 to 10ML prior to serial number N05803D.) -
Page 10: Removing/Replacing Tip Ejector Arm
Check the position of the internal assemblies, especially the seal, against the illustrations. Consult the Rainin publication “Pipetman Care and Main- tenance” (AB-14) for more information. This free publica- tion is available by calling 800-543-4030 or it can be downloaded in PDF format from Rainin’s website:... -
Page 11: Replacement Parts
M Filters (100) N/A 6190-164 6190-164 Filters (1000) N/A 6190-165 6190-165 See drawings on pages 10-11. * Part of one-piece piston assembly. Recalibration is necessary following piston replacement. Call 800-543-4030 for Technical Assistance. Replacement parts are manufactured by Gilson and Rainin. -
Page 12: Parts Drawings
F-1MIC to F-2MIC F-2.1MIC to F-10MIC F-1 to F-20 F-21 to F-100... - Page 13 F-201 to F-1000 F-101 to F-200 F-1001 to F-5000 F-5001 to F-10ML...
-
Page 14: Performance Specifications
Each Pipetman is factory calibrated and carefully checked gravimetrically before shipment using distilled water and an analytical balance. When used in accordance with the pipet- ting procedure outlined in this manual and with Rainin tips, Pipetman will perform within the following tolerances: Accuracy... -
Page 16: Contacting Rainin
Warranty Registration Card on receipt of your pipette. Rainin pipettes are calibrated with Rainin tips. To assure excellent reproducibility and performance, use only Rainin tips as recommended in this manual. Spec- ified performance is guaranteed only when Rainin tips are used.
