Rainin E-Man Hybrid Getting Started

Getting Started with E-Man Hybrid
MODE Key
Battery
Tray
(beneath display)

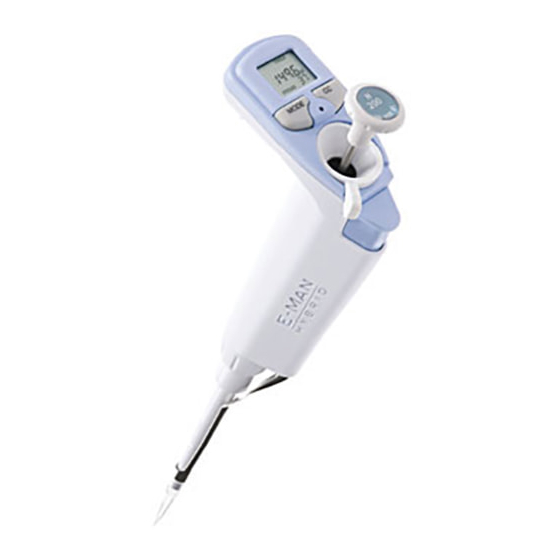

Figure 1 E-Man Hybrid Controls and Indicators

Activate the Battery

E-Man Hybrid is shipped with a plastic strip isolating the battery ter-
minal. Remove this strip by pulling straight out from the battery
tray. Press the plunger button to begin operation and clear "PrES".

Set the Volume

Unlock the volume lock by moving the lever counterclockwise.
I
Figure 2 Volume Lock
I Set the desired volume by rotating the plunger button. The dis-
play changes as you rotate the button.
I Stop at the desired volume and lock the volume lock to operate.

Display Modes

MODE KEY:
Scrolls through these three display modes.
Pipet Mode:
Track Mode:
tip is shown in real time as the plunger button is depressed.
When pressed beyond the 1
"bLo" to indicate the Blowout part of the stroke.
Titrate Mode:
of sample dispensed from the tip in real time, as a negative num-
ber relative to the upper set volume (at the set volume the LCD
shows 0.0).
CC KEY:
Turns on or off the cycle counter, and clears the count.
Cycle Counter:
true pipetting cycles have occurred in the current pipetting ses-
sion. CYCLES and the count number are shown in the display.
LCD
Press the MODE and CC keys for these modes.
Same operation as standard pipettes, see over.
TRACK is displayed. The volume of sample in the
TITRATE is displayed. The LCD shows the volume
Cycle count is a visual reference of how many
CC Key
position the display reads
ST STOP
Plunger Button
Volume Lock
Lever
Tip Ejector
Button
™
