Boge base control Operating Instructions Manual page 14

base control
Operating and control element

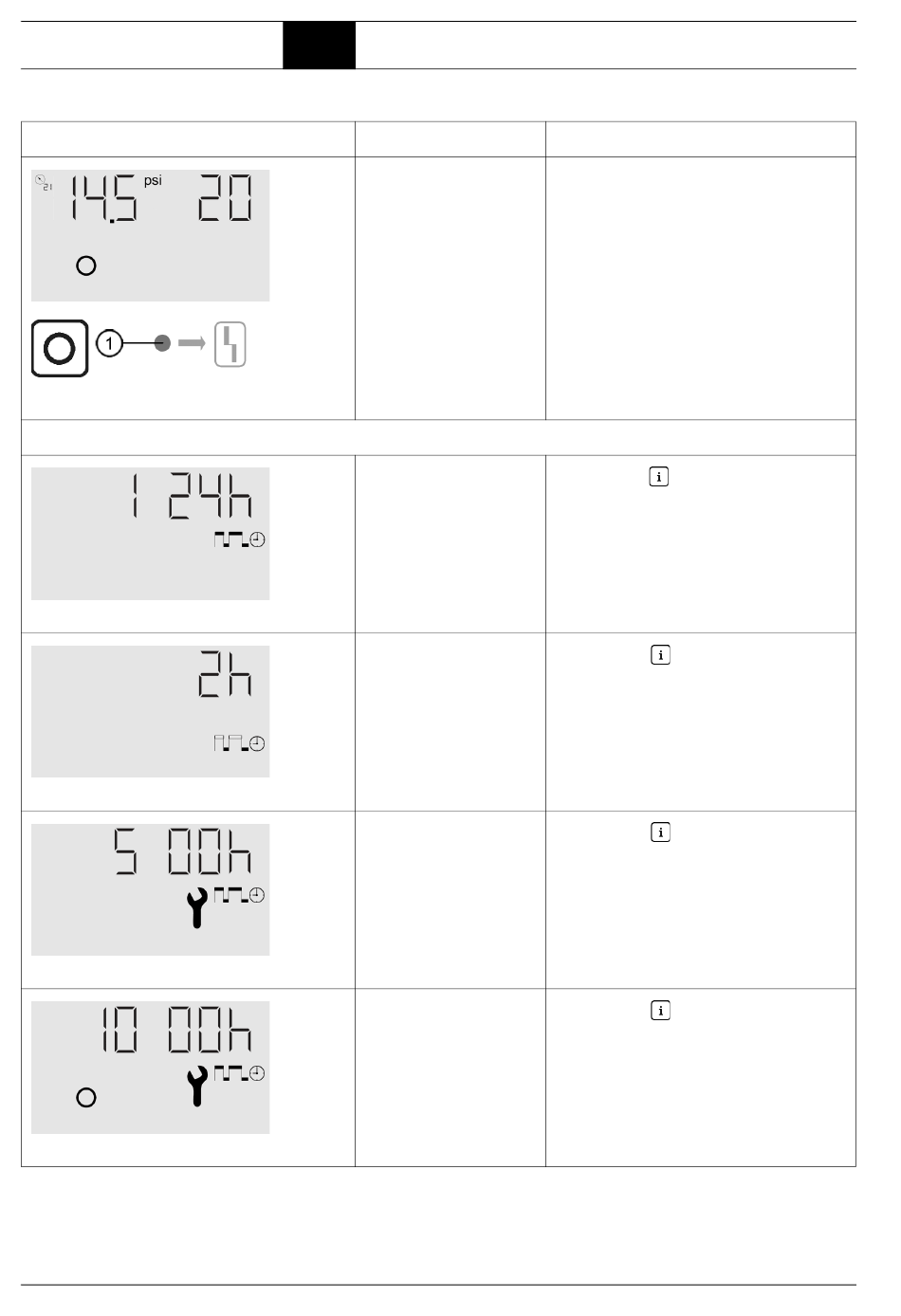

1 Indicator lamp – Fault (red)
Operation, servicing periods, display test and software-no.
means: 124 h total running-time
bmeans: 2 h idling time
means: 500 h until next compressor servicing
means: 1000 h until next motor servicing
Page 8
1.3
Function
Fault
Total hours
Idling hours
Compressor servicing
interval
Motor servicing interval
Operation
Operation / Explanation
If the control unit detects a fault, the compressor
is switched off immediately and automatically
– without any idling phase –, the fault relay
drops and on the RH side of the actual pressure
value a number flashes together with the red
indicator lamp:
The blinking number indicates the detected
fault (see also section „Message key table" on
page 11).
→
Press Info key and the segment display
shows the total operating time counter in hours,
together with the total up-time
Press Info key a second time
display shows the Idling time counter and the
Idling time symbol.
Press Info key a third time
display shows the operating time until the
Compressor servicing and the Running time
and Servicing symbols (spanner).
Press Info key a fourth time
display shows the operating time until the next
Motor servicing and the symbols O (stands for
motor) running time and servicing (spanner).
