Condenser
The condenser probe is located on the side of the condenser coil. It monitors
Probe
condenser temperature.
To replace the condenser probe
Replacement Procedures
Service Manual
1. Disconnect the chiller from the power supply and remove the refrigeration
unit (see page 41).
2. Remove the unit cover (see page 44).
3. Detach the probe from the side of the condenser coil, and trace the probe
cable back to the unit electrics box, cutting cable ties as required, and
unplug (see page 42).
4. Following the same path as the original probe, run the new probe to the

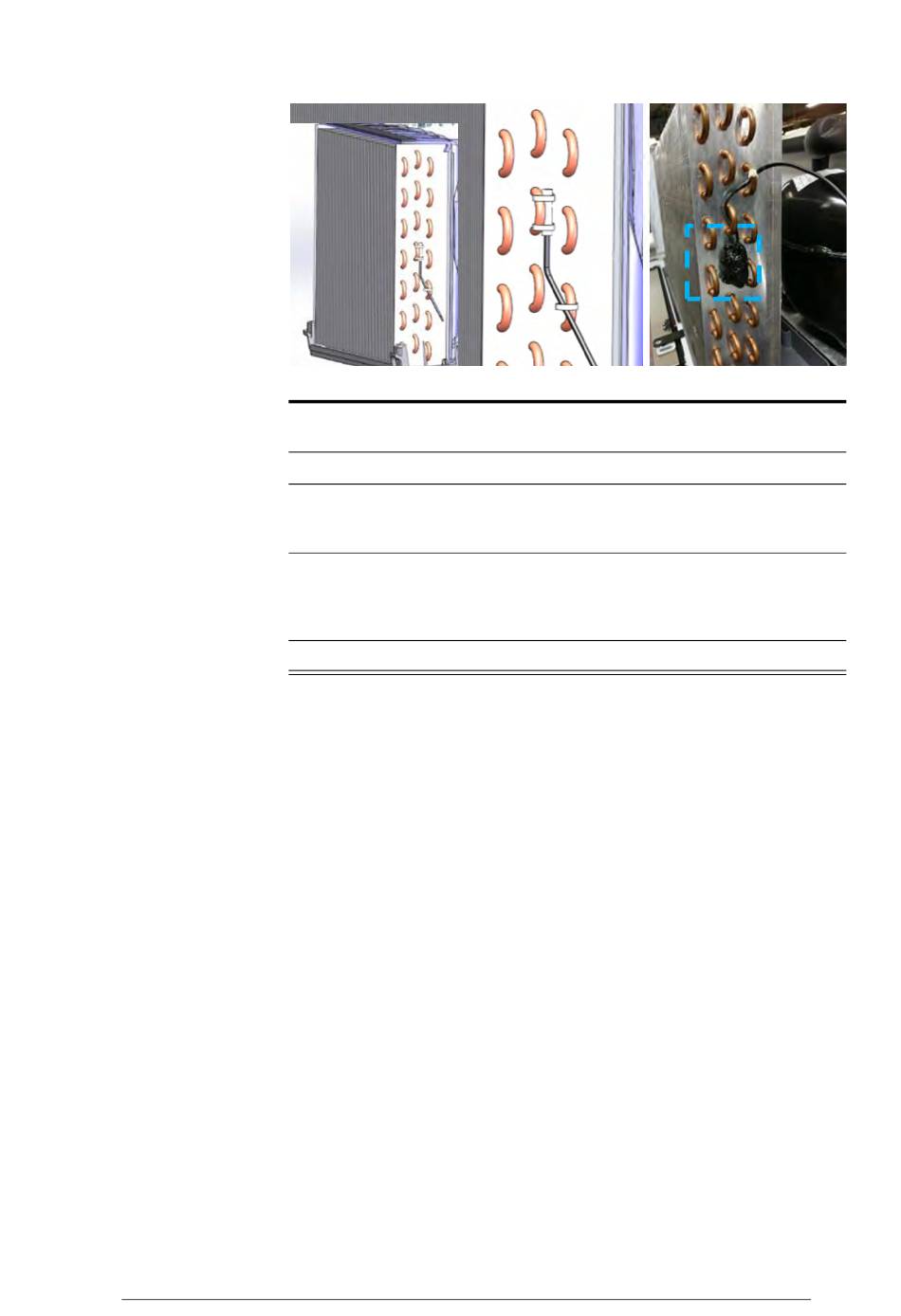

condenser coil and secure with cable ties. Locate the probe in the same
location as the original probe (as pictured above) and insulate with cork
tape. Plug the probe cable securely into the electrics box.
5. Reassemble the unit and test for correct operation.
