Metra Electronics CS-HDBTP2UKA-70 User Manual

· Installation Procedures

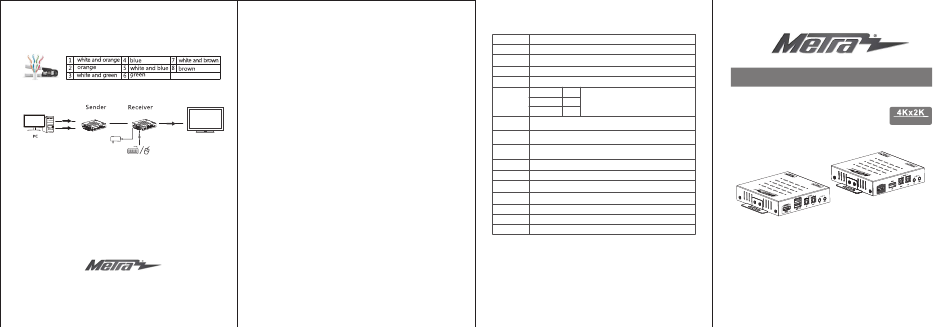

1. To make a Cat6/6A/7 network cable
Follow the standard of IEEE-568B:
2. Connections
HDMI input HDMI input
HDMI output
Power
USB
USB
keyboard/mouse
［NOTE］: It is recommended to power from the receiver unit
3. Bi-directional IR pass back
1 ) It supports bi-directional IR pass back . User can control DVD at RX
end and control TV at TX end.
2 ) If control at RX end, please connect IR blaster extension cable with
IR OUT of TX and connect IR receiver extension cable with IR IN of
RX. If control at TX end, please connect IR receiver extension cable
with IR IN of TX and connect IR blaster extension cable with IR OUT
of RX.
HOME THEATER GROUP
866.839.9187
460 Walker Street, Holly Hill, FL 32117
www.MetraHomeTheater.com
· FAQ
Q: No output on screen?
A: 1 ) Firstly, please check and make sure the power supply is connected
well. Then, check and make sure all cables are connected correctly.
2 )Please check and make sure the right HDMI input port of the
TV/ screen has been chosen.
3 )Please check and make sure there is HDMI signal to be fed into
transmitter unit, and check and make sure the receiver unit has
been connected well with the display device.
Q: Data transmission indicator flashes and no output?
A: Check and make sure the HDMI display device has been switched to
the right HDMI input channel.
Q: Connection indicator keeps off?
HDMI display
A: Check whether the TX's HDMI IN has signal input and make sure RX's
OUT is well connected with HDMI display.
Q: Output image with snow point?
A: Change the HDMI cable between the transmitter unit and the source
device, it will be better to use a shorter HDMI cable for re-testing.
· Specification
Items Specifications
HDMI signal Support HDMI2.0 HDCP2.2, support CEC and 24bits deep color
Resolution
480i/480P/576i/576P/720P/1080i/1080P/3D/3840×2160
Supported
Audio LPCM、DTS Digital, Dolby Digital
Network cable CAT6、CAT6A、CAT7
CAT6 70m
Transmission
1080p@60Hz, 1080p@60Hz 3D,
CAT6A 70m
length
3840×2160@60Hz
70m
CAT7
Support 20~60kHz wide frequency devices and Bi-directional IR
IR control
transmission
Working
0～55℃
temperature
Storage
-10～70℃
temperature
Humidity 0～90%(no condensation)
Power supply
DC12V/2A x1pcs
Power
TX: ＜6W; RX: ＜8W
consumption
Product
109.49(L)x87.0(W)x23.4(H)mm
dimension
Material
Iron alloy material
Weight TX:240g RX:240g
Color
Black
Disclaimer
The product name and brand name may be registered trademark of
related manufacturers.TM and ® may be omitted on the user manual.
The pictures on the user manual are just for reference, and there may
be some slight difference with the real products.
We reser ve the rights to make changes without further notice to a
product or system described herein to improve reliability, function or
design.
