Metra Electronics CS-HDC5EXTSR2 User Manual

HDMI Extender Over Cat/6
CS-HDC5EXTSR2

IMPORTANT SAFETY INSTRUCTIONS

• Do not mix up HDMI to RJ45 sender and RJ45 to HDMI
receiver before installation.
• Do not hot plug when ii is powered up.
• Use DC5V power supply only. Make sure specification
matched if using adapters not supplied by factory.

1. PACKAGE CONTENTS

HDMI to LAN sender TX*1 pcs
DC5V1A*2pcs
11
IR blaster extension cable*1pcs

2. INSTALLATION REQUIREMENTS

2.1. HDMI source device
2.2. HDMI display device.
2.3. UTP/STP cat6/cat6A/cat7 cable
2.4. Follow standard IEEE-5680
LAN to HDMI receiver RX*1 pcs
User's manual*1 pcs
ml
�
IR receiver extension cable*1 pcs

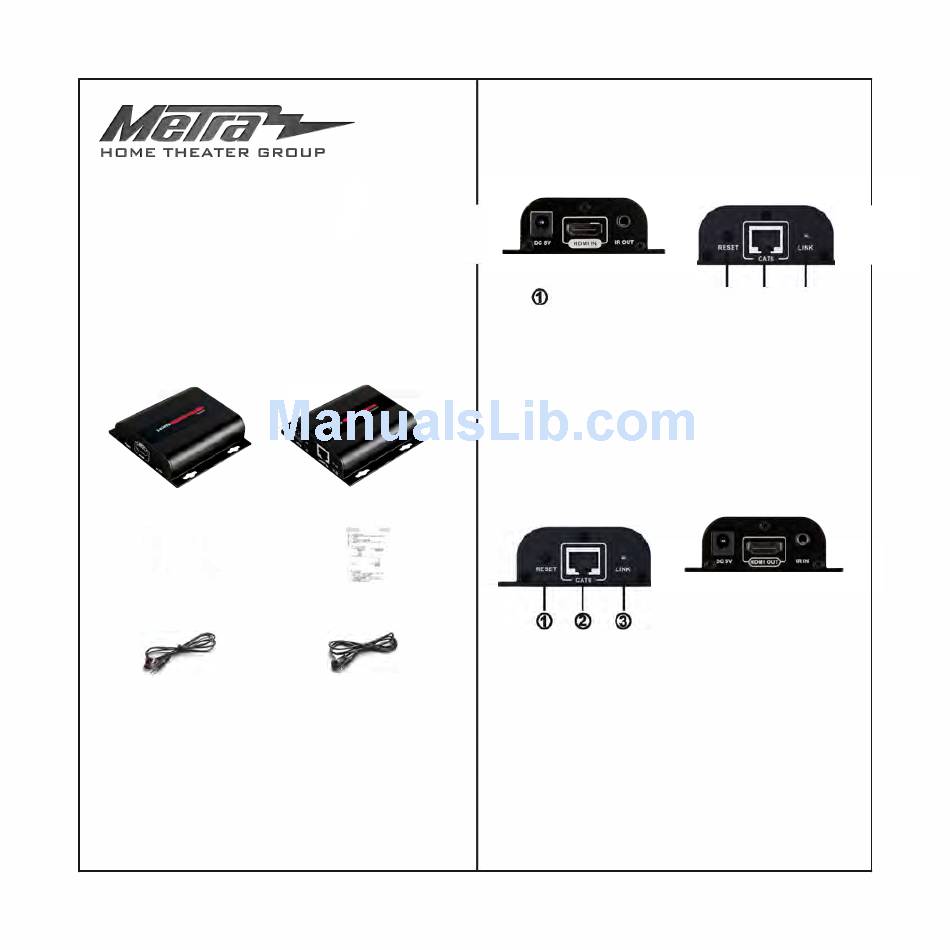

3. Interfaces

3.1.HDMI to Rj45
I I I
®
(2)
G) DC5V power input
@ IR signal output to connect with IR blaster extension cable
@ RESET
® HDMI signal indicator led. It lights on all the
time with HDMI signal input, flashes with no
signal input.
3.2.RJ45 to HDMI
(i)RESET
@ Connection status indicator led. II lights on all the lime
with HDMI signal transmission, flashes with no signal
transmission.
@ DC5V power input
® IR signal input to connect with IR receiver extension
cable
@ ® ®
®HDMI signal input
@RJ45 signal output
I I I
@ ® ®
® Rj45 signal input
@ HDMI signal output
