Metra Electronics CS-HDC5EXTSRLO User Manual

HDMI ® Extender Over Cat/6
CS-HDC5EXTSRLO

User Manual

• Introduction

This HDMI extender over cat6 extends the HDMI content up to 60
meters for 1080p.

• Important safety notice

1.
Do not mix up HDMI to RJ45 sender and RJ45 to HDMI receiver
before installation.
2. Do not hot plug when it is powered up.
3.
Use DC5V power supply only. Make sure specification matched
if using adapters not supplied by factory.

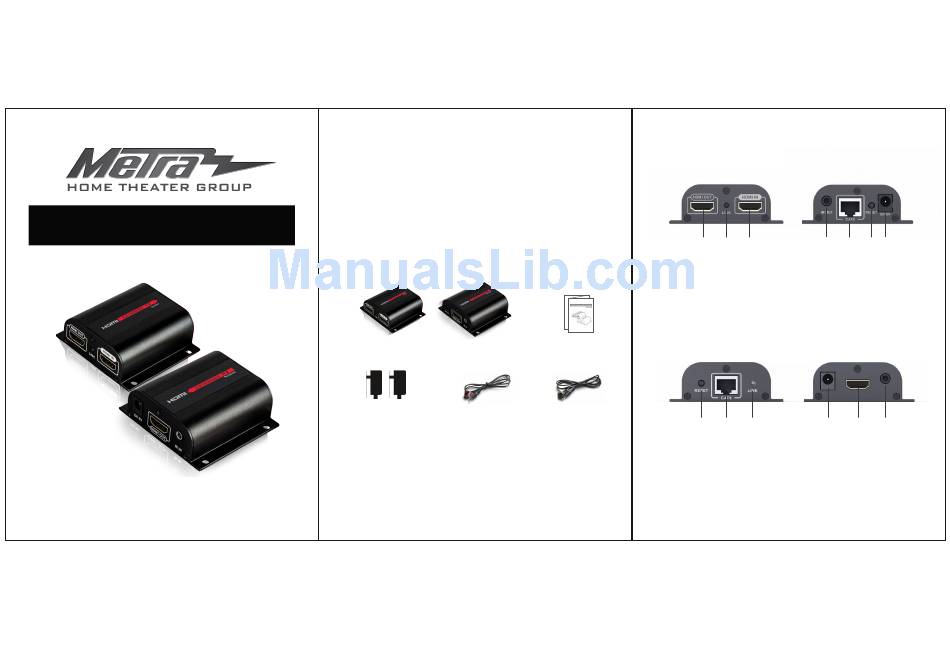

• Package Contents

HDMI to RJ45 RJ45 to HDMI
sender TX*1pcs receiver RX*1pcs
DC5V1A*2pcs IR blaster extension
cable *1pcs

• Installation Requirements

1. HDMI source device
2.
HDMI display device.
3.
UTP/STP cat6/6A/7 cable, follow standard IEEE-568B.

• Panel Description

1. HDMI to RJ45 transmitter
① ②
①
HDMI signal output
② HDMI signal indicator led
LED stays on all the time
with HDMI signal input,
flashes with no signal input.
③ HDMI signal input
2. RJ45 to HDMI receiver
User manual*1pcs
IR receiver extension
cable*1pcs
① ②
①
Reset
②
RJ45 signal input
③
RJ45 indicator led
LED stays on all the time with
HDMI signal transmission, flashes
with no signal transmission.
③ ④ ⑤ ⑥ ⑦
④
IR signal output to connect
with blaster extension cable
⑤ RJ45 signal output
⑥
Reset
⑦
DC5V power input
③ ④ ⑤ ⑥
④
DC5V power input
⑤
HDMI signal output
⑥ IR signal input to connect with
IR receiver extension cable
