Cree VG Series Installation Instructions

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions should always be
followed including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1. To reduce the risk of electrical shock, turn off power supply before
installation or servicing.
2. This luminaire must be installed in accordance with the NEC or your local
electrical code. If you are not familiar with these codes and requirements,
consult a qualified electrician.
3. DO NOT lift luminaire by the supply cord.
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE

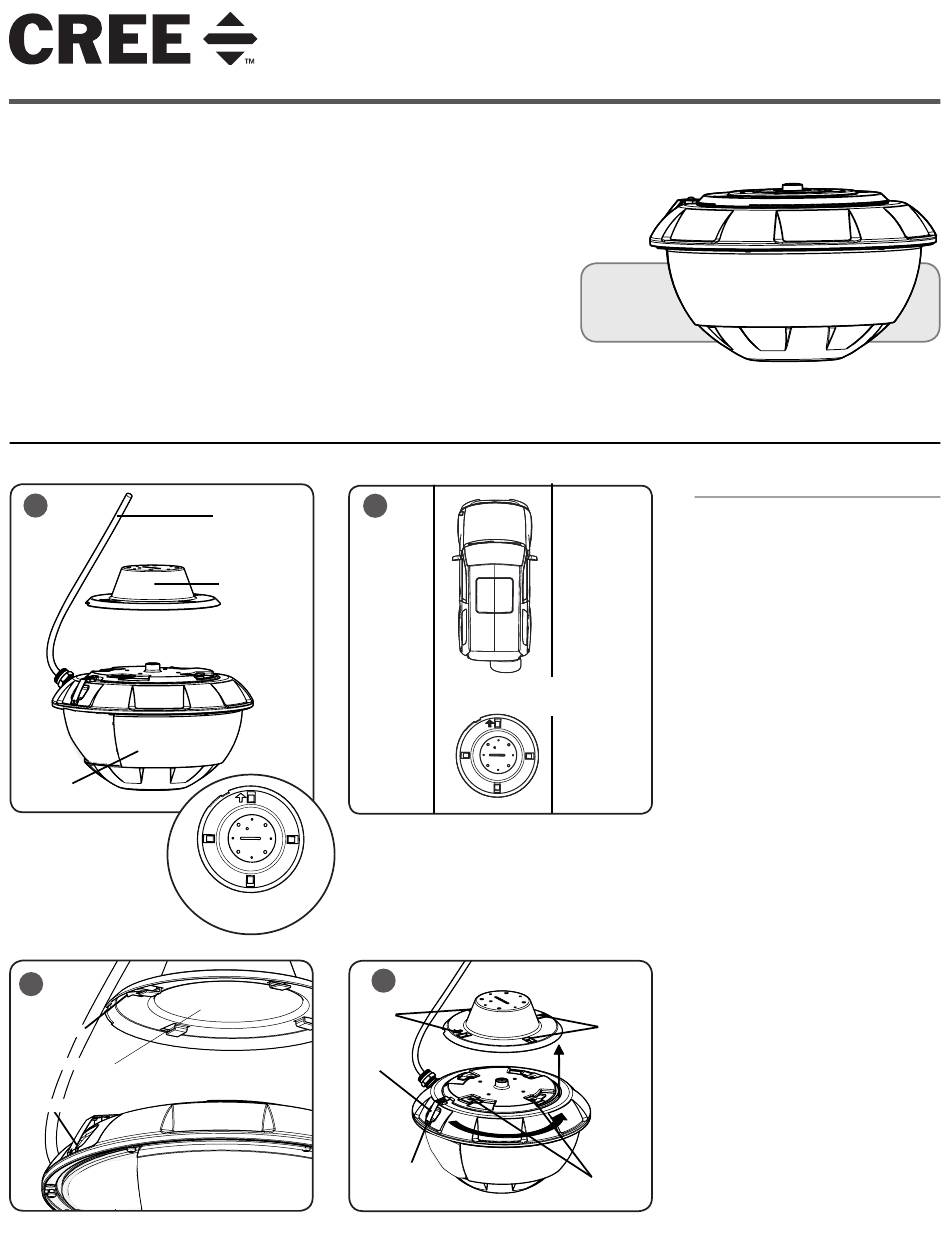

TO INSTALL:
1
Luminaire
3
Arrow
Mounting Plate
Latch
1 of 2
2
Supply Cord
Surface Direct
Mounting Plate
Underside View of
Mounting Plate
4
Slots
Latch
Tamperproof
Screw

LUMINAIRE INSTALLATION

STEP 1:
Using customer supplied hardware
attach mounting plate to ceiling with the
arrow on the underside of the Mounting
Plate directed parallel to vehicle traffic.
Ensure that the ceiling is capable of
supporting the weight of the luminaire.
See Figure 1 and 2.
STEP 2:
Bring luminaire up to Mounting Plate,
Arrow On Mounting Plate
Pointing Parrallel To rotate luminaire until the arrow on the
Traffic
inside of the Mounting Plate points to
the recessed area nearest to the latch
on the luminaire. See Figure 3.
STEP 3:
Attach luminaire to the Mounting Plate
by pressing up on the luminaire until the
slots on the Mounting Plate engage with
the clips on the luminaire and rotate
until latch locks securely. See Figure 4.
NOTE: May require extra pressure on
Mounting Plate to engage luminaire
clips into slots.
NOTE: If the Mounting Plate slots
become deformed during installation,
slightly reopen the slots back up using
a screwdriver to ensure proper install of
luminaire.
Slots
STEP 4:
Install a suitable Listed liquid tight cord
strain relief bushing in the customer
supplied junction box, and feed the
luminaire's supply cord through it.
STEP 5:
Connect the cord to the supply wiring
Luminaire per the "Electrical Connections"
Clips
section.
VG Series
LED Parking Luminaire
Surface Direct Mount
INSTALLATION INSTRUCTIONS
LPN00100X0005A0.
